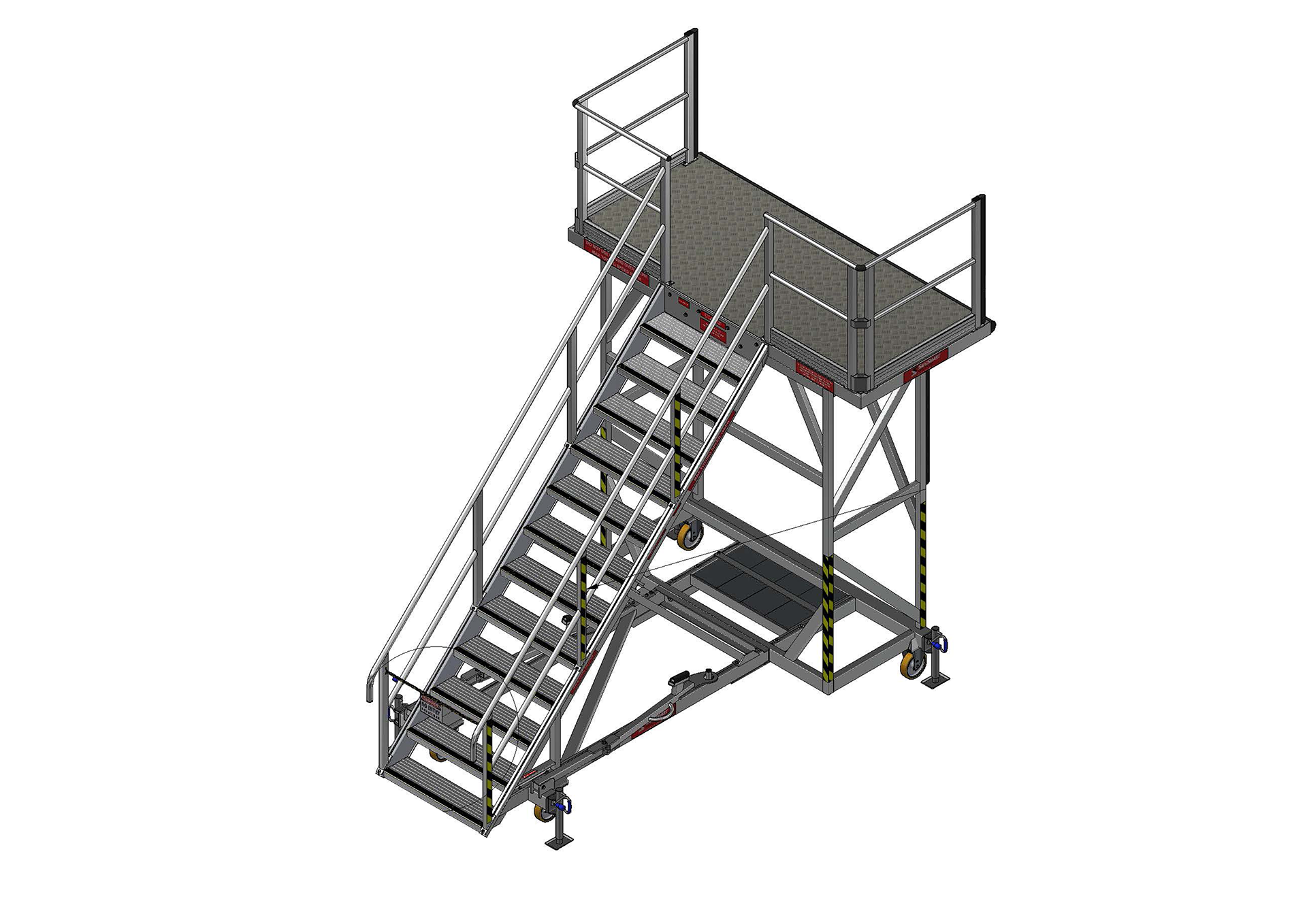

E190-E2 Main Entry Door Stairs

Platform dimensions; 1.2mL x 2.7mW x 2.8mH.
The length includes a 0.3mL clear cantilever on the leading edge.
1.0mW stairway access centrally positioned on the rear 2.7m side. 45 degree angle of slope, griptread extrusion steps with anti-skid nosings. Handrail and midrail to each side.
Guardrail, midrail and toeboard frames to all sides, except the leading edge.
Foam buffering to leading edge, sub-frame and guardrail posts to prevent contact damage.
Mobile on heavy duty Blickle 200mm swivel, braked, directional locking and towable with height adjustable machine jacks.
Treadplate decking material.
SWL 500kg.
AS1657:2018

Options included:

Safe Wrap Towbar & Towing Kit
75kPh Wind Rating Kit
‘No Entry’ chain and sign

Product Details

SKU: E190MEDS

Product Variation

Product Description

A large platform area allows the opening of the E190 E2 main entry door onto the platform, with no realignment of the platform required, ensuring the user operates from a fully edge protected workspace when accessing the aircraft. Stair access allows the user to keep their hands free when transiting to and from the aircraft, allowing them to carry tools, or parts, or technology when carrying out work and assessments on the aircraft. With an optional SafeWrap tow kit design, that allows for a simple set up and stowing of the tow bar in seconds, facilitating fast deployment and ease of maneouvering across flight line environments.
