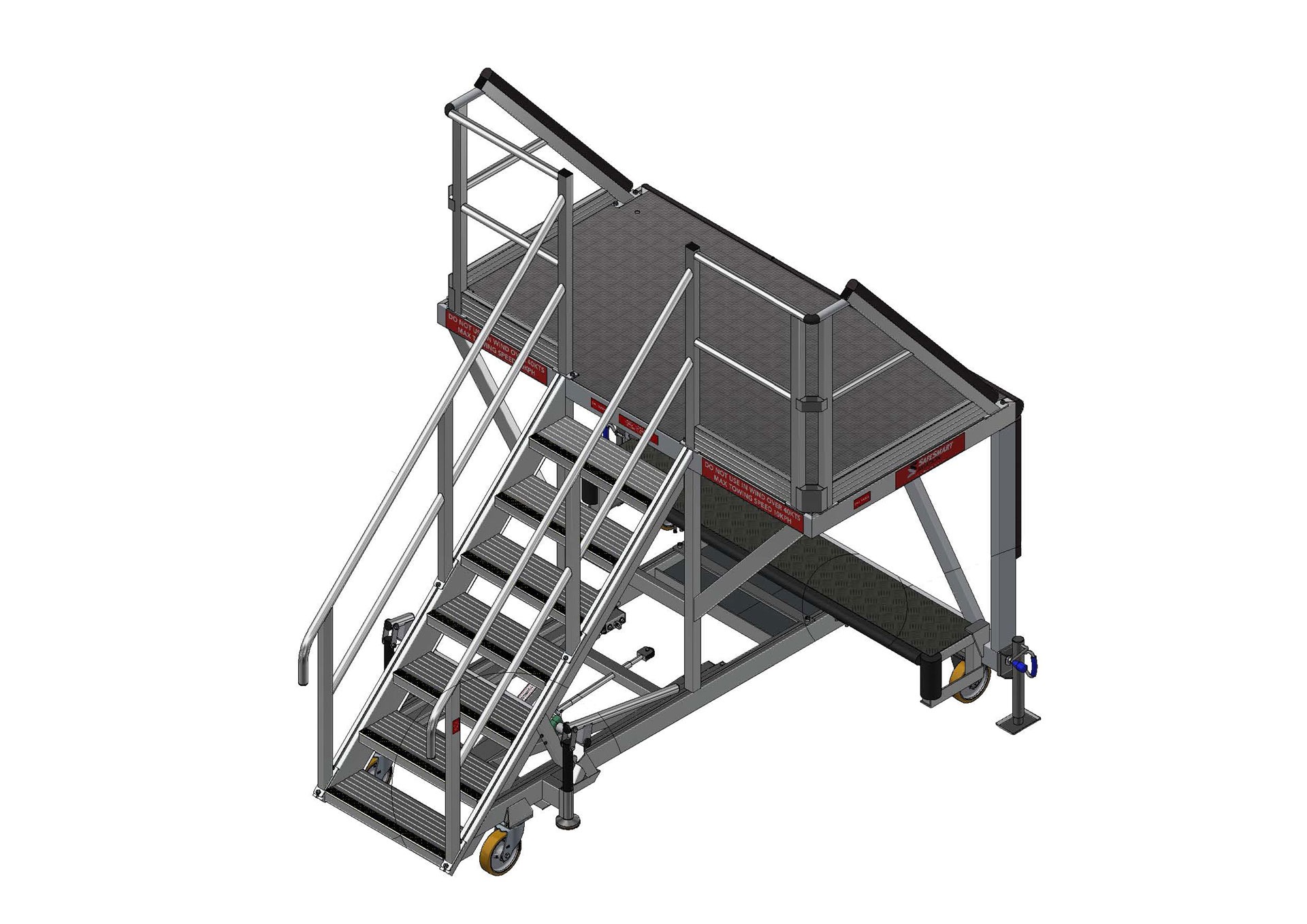

E190 E2 Cargo Door Access Platform Image 1

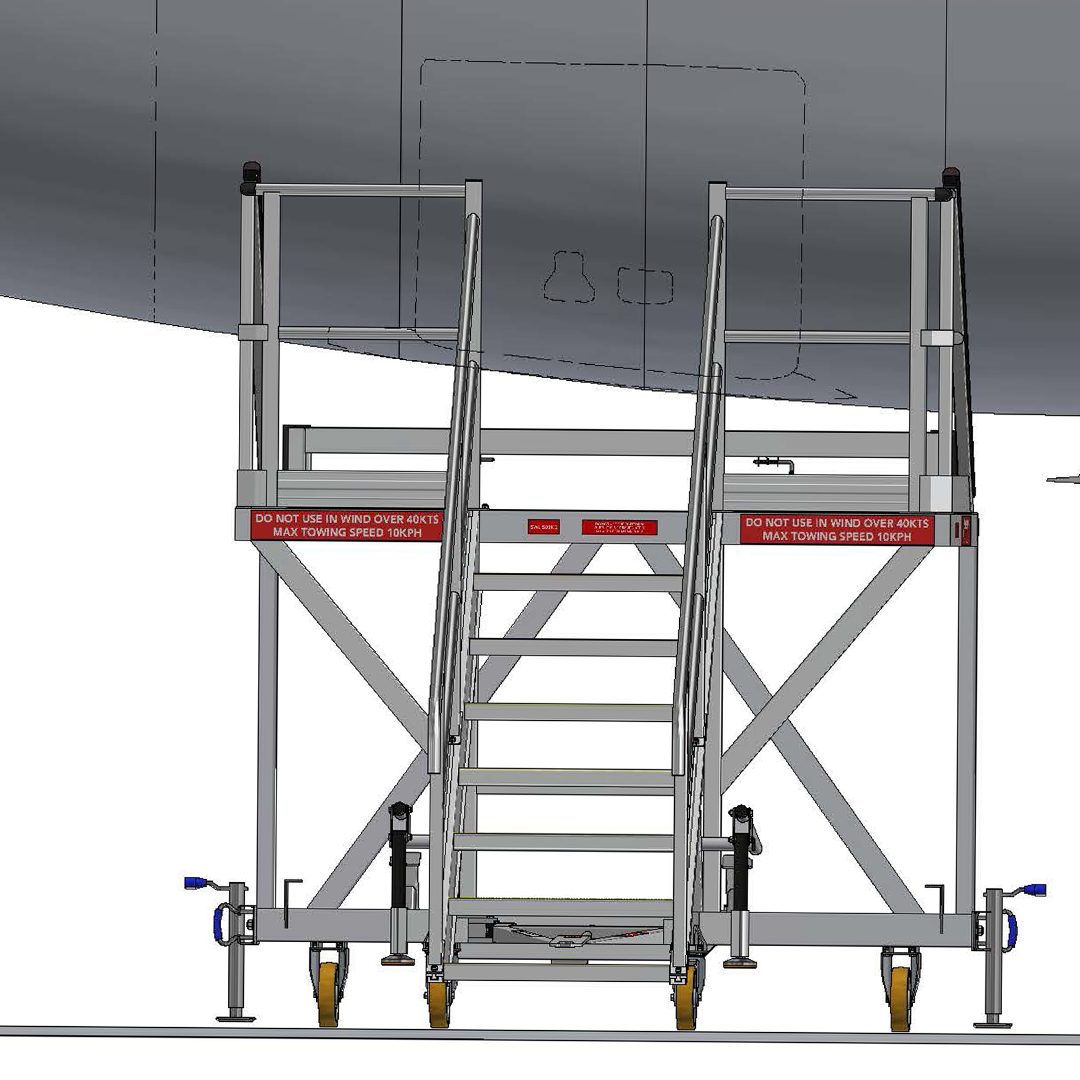

E190 E2 Cargo Door Access Platform Image 2

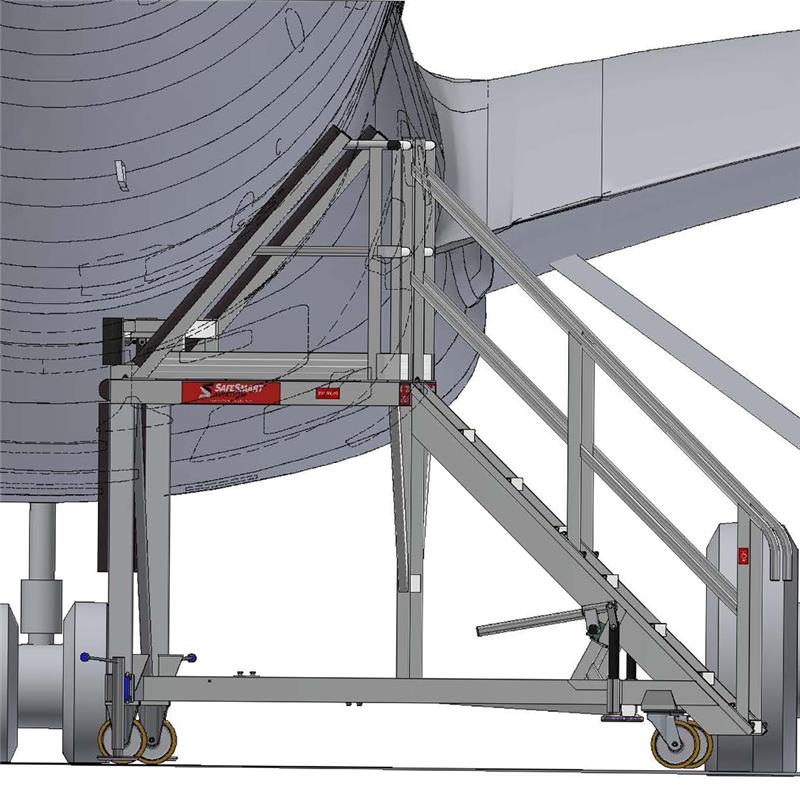

E190 E2 Cargo Door Access Platform Image 3

E190-E2 Forward & Rear Cargo Door Access Stand

Platform dimensions; 1.2mL x 2.2mW x 1.6-1.85mH.
0.8mW stairway access centrally positioned along the rear 2.2m side. 45 degree angle of slope griptread extrusion steps with anti-skid nosings.
Handrail and midrail to each side.
Guardrail, midrail and toeboard frames to each side, with an open leading edge. – The frames are contoured back to suit profile of aircraft.
Mobile on heavy duty 200mm swivel, braked, directional locking and towable castors.
Treadplate decking material.
SWL 500kg.
AS1657:2018

Options include:

Lever Brake
Wind rated for 75kPh
Foam buffering to forward handrails
Towing Kit – Sliding

Product Details

SKU: E190CDAS

Product Variation

Product Description

Provides suitable access and edge protection for both the forward and aft Cargo Doors on the E190 E2 aircraft. With a removeable step on the leading edge covering the difference in sill heights. With sloping guardrails, this allows positioning against the aircraft minimizing gaps, along with foam buffering on the leading edges to protect the aircraft during use. Options include tow kits, allowing ease of maneuvering across flight line environments.
