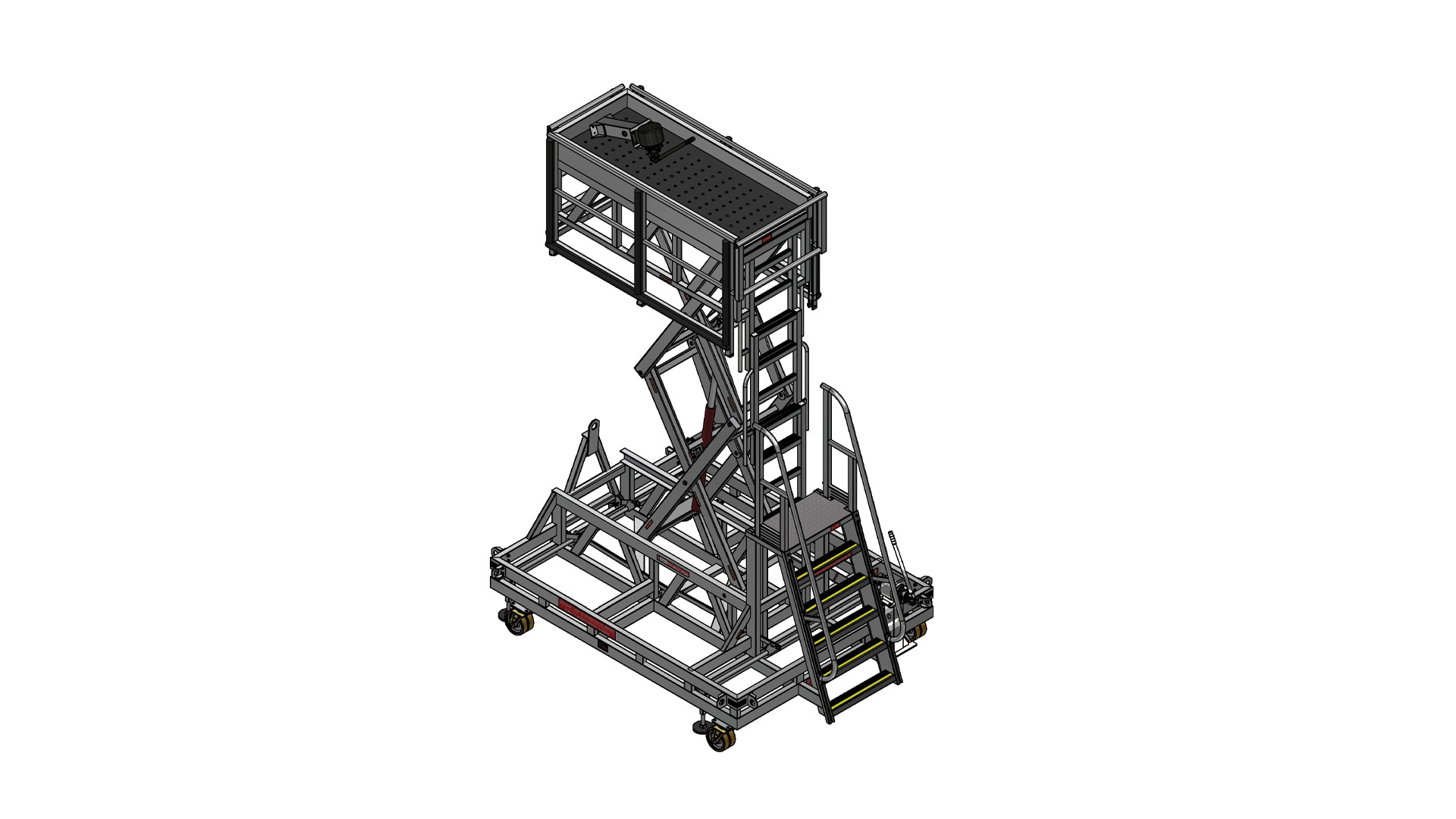

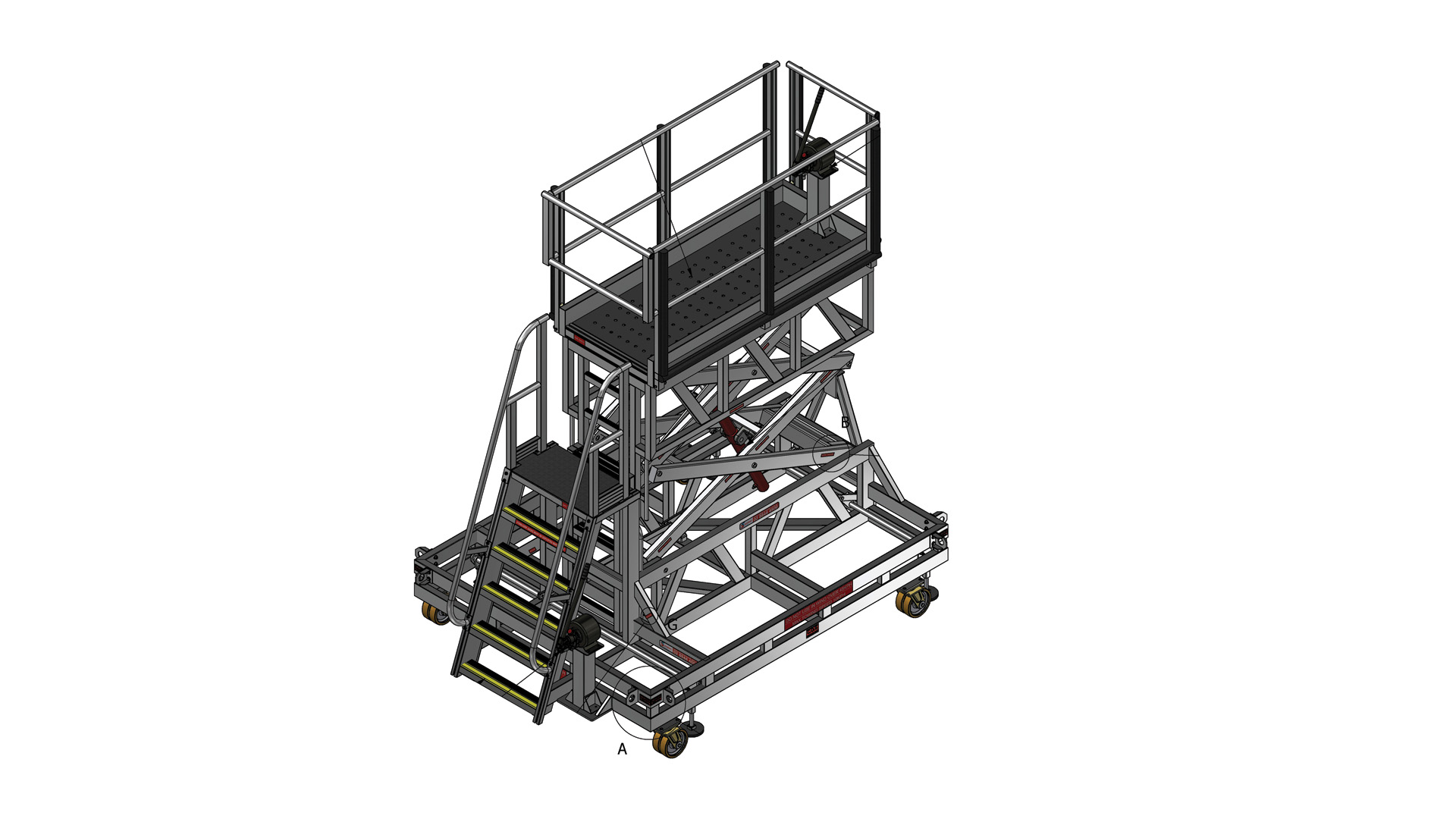

C130 Engine Flap Service Stand

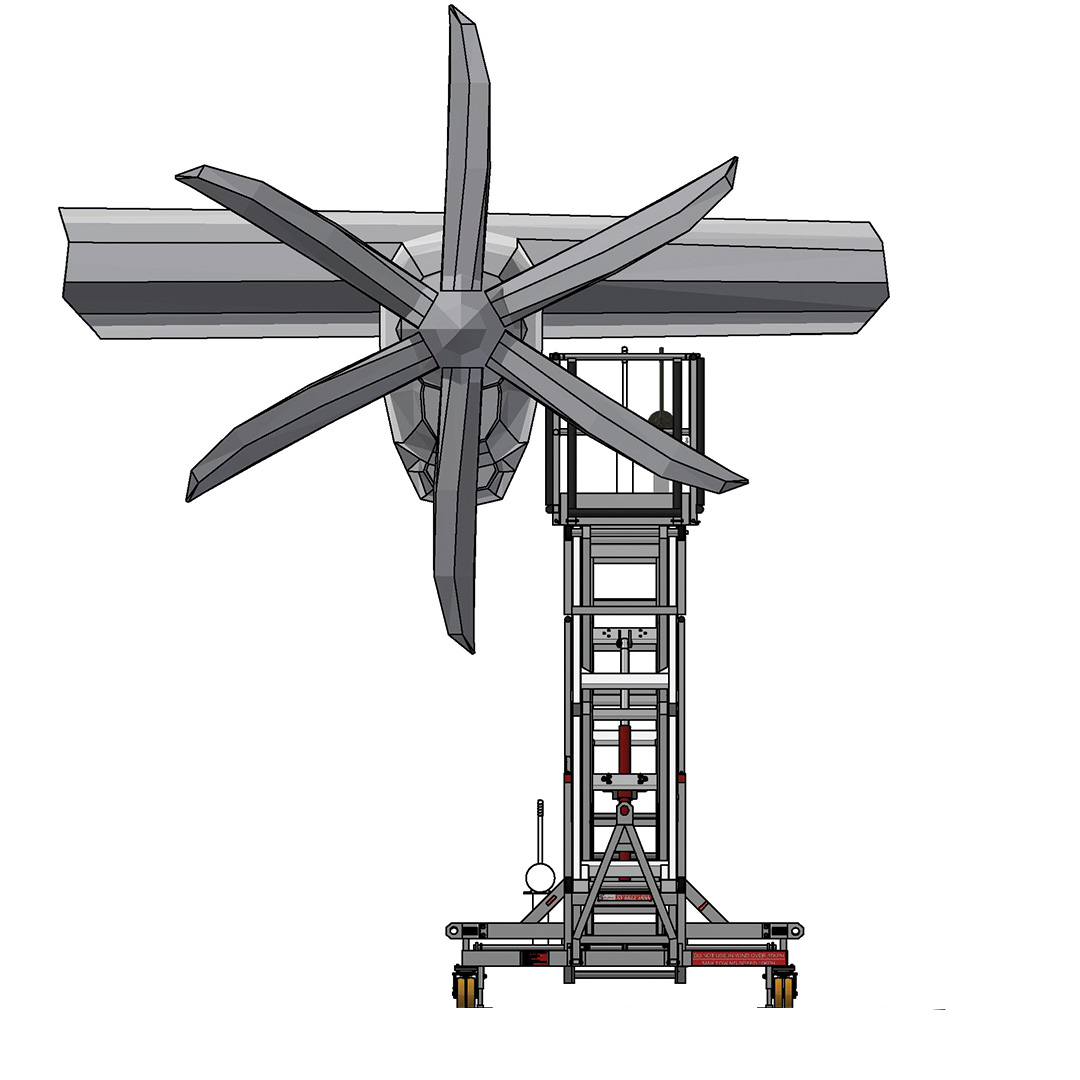

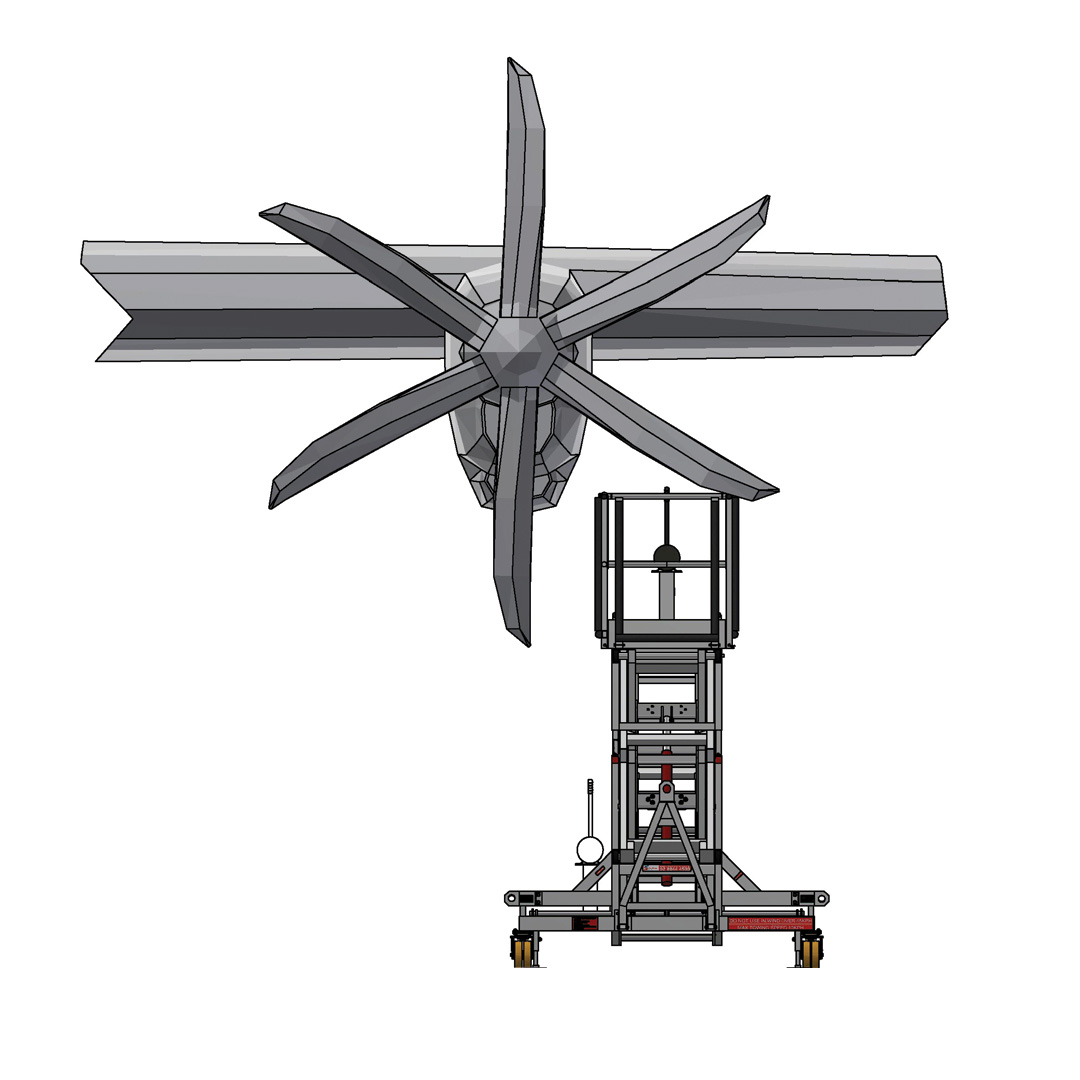

Platform is suitably sized for access to either side of the engine and the flight controls for maintenance purposes.
A massive height adjustment range from 1.5mH through to 4.0mH.
Height adjustment is via a manual hand hydraulic pump positioned at the top and the bottom of the stand. Battery powered variations are available.
The stand is mobile on large 200mm diameter, heavy duty, swivel/braking casters. The casters opposite the tow point are directionally locking.

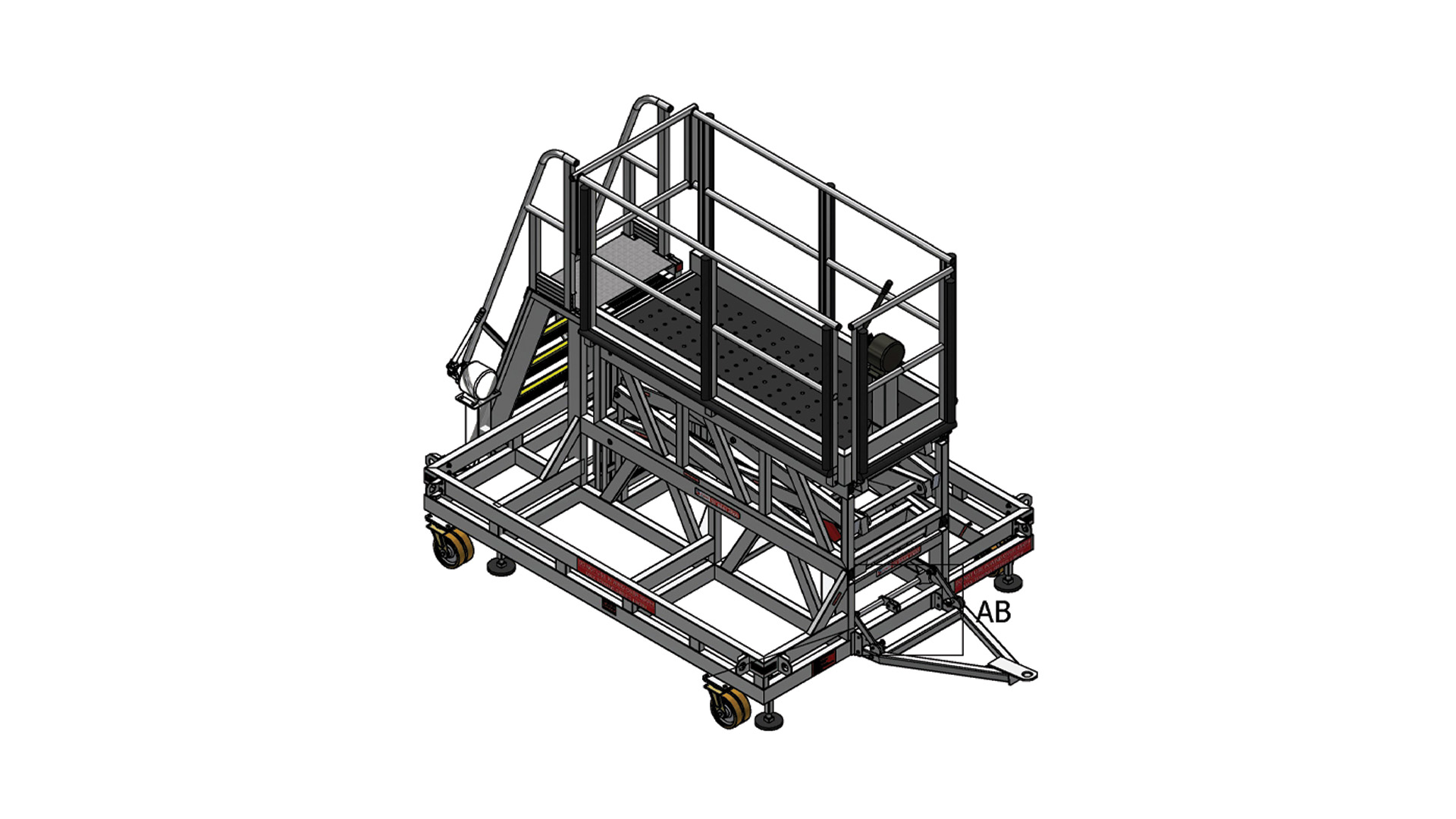

Tow hitch when stowed, automatically engages the lever brake mechanism with 4 points that prop the stand off the support surface.
70 degree ladder provides access to the lower height with a telescopic vertical ladder providing access to the upper heights.
Self-closing removable gate at the access point of the platform.
Perforated and swaged decking material with rubber matting over. Allows moisture through flush perforations.
Telescopic guardrail frames on all sides of the platform, slide down to platform height.
Foam rubber buffering on all sides of the platform where contact with the aircraft is possible.
Hi-viz reflective tape on platform circumference.
Labeled/rated tie town points for deployment.
SWL 500kg.

Product Details

SKU: EFSS
