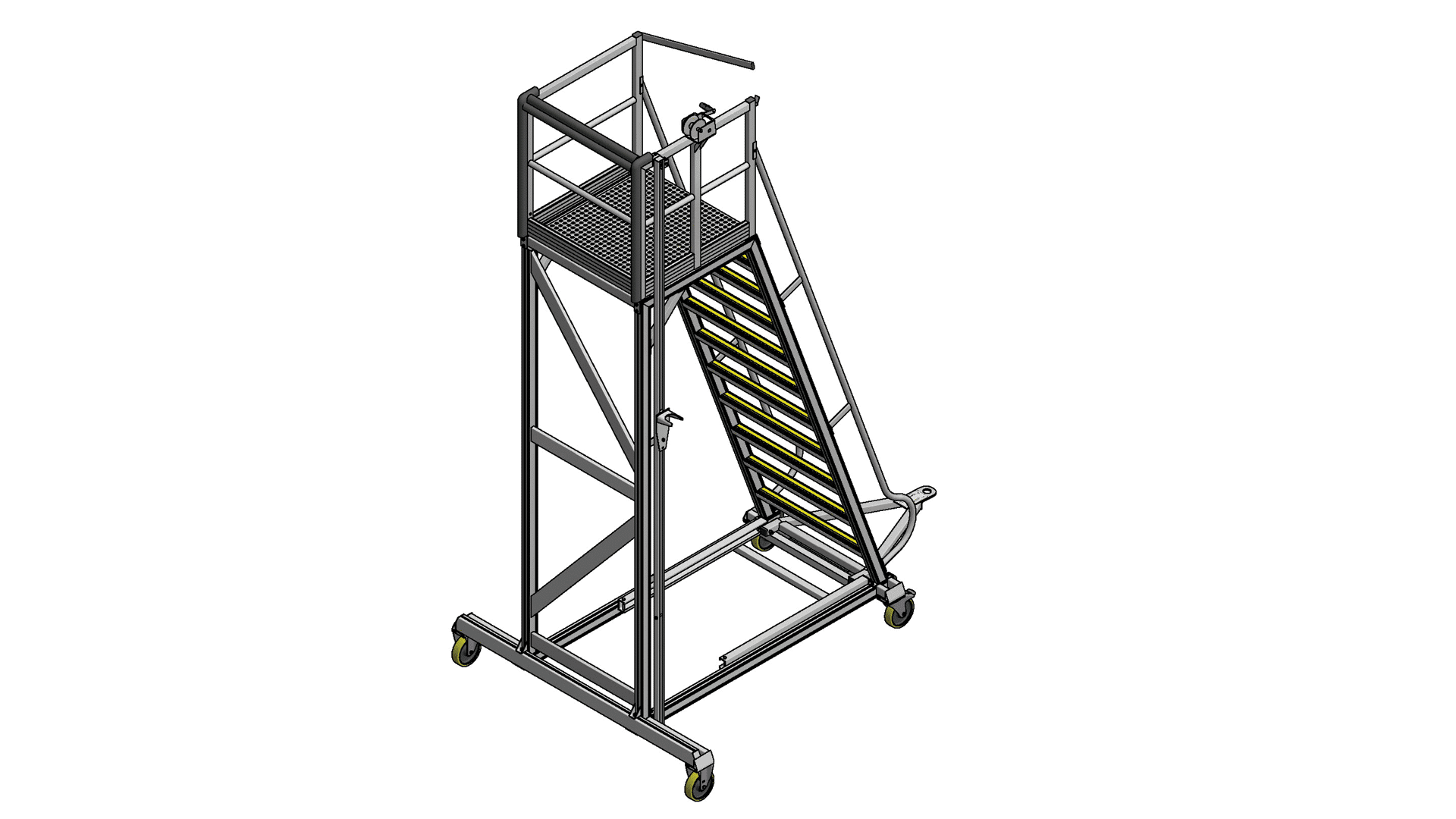

B787 Refuelling Platform for Line Maintenance Efficiency
The B787 Refuelling Platform is an indispensable maintenance stand, methodically engineered to enhance the safety and efficiency of in-line refueling operations and related maintenance tasks on the B787 Dreamliner. This specialized access solution provides mechanics and engineers with quick, secure, and ergonomic access to the aircraft’s fuel points, specifically located beneath the wing for standard refueling procedures.
This purpose-built access solution is indispensable for high-volume, quick-turnaround operations. Its sturdy, towable design makes it exceptionally Quick & easy for one user to implement on the line, minimizing aircraft downtime during maintenance and service tasks.
Optimized Access for the B787 Refuelling Platform
The platform’s core function focuses on precision and ease of use in a fast-paced line environment. Innovative features include an integrated Winching system to lift the nozzle up and into position. This mechanism significantly reduces physical strain on the operator, allowing for precise vertical manipulation of the refueling nozzle. This ensures a clean and secure connection to the aircraft’s fuel receptacle, which is critical given the inherent height challenges associated with accessing the B787’s wing-mounted refueling panel.
Winching System and Fuel Nozzle Management
The platform includes a Fuel Nozzle Receptacle in its lowest position for staging and resting the nozzle when not in use, and can elevate the nozzle to the highest position required to interface with the aircraft. The Winch to fuel nozzle to platform height further emphasizes its capability to manage heavy refueling lines safely. Operator safety and usability are paramount to the design.
Enhanced Safety Features for the B787 Refuelling Platform
The working deck features a Perforated Deck surface, foundational for maximizing grip and minimizing slip hazards, particularly in environments prone to fuel spills or inclement weather. Access to the working height is facilitated by a sturdy Step Ladder Type Access, ensuring stable and quick ascent and descent. The platform is equipped with Ergonomic Handles placed strategically to assist users during positioning and maneuvering.
Superior Mobility and Positioning
Mobility is a primary design consideration for line maintenance efficiency, allowing companies to be productive for longer. The B787 Refuelling Platform is mounted on heavy-duty Towable Fixed Castors and heavy-duty Towable Braked Swivel Castors.
These components allow for precise positioning around the aircraft and ensure stability once the platform is correctly located at the refueling panel under the wing. A Retractable Towbar enables rapid movement by maintenance vehicles. Furthermore, the platform incorporates a dual-purpose element: the Towbar when Stowed is Used for engineer access to fuel points on B787.
Targeted Maintenance Capability
This creative design provides a secondary, safe access point or a localized support structure relevant to the B787’s specific under-wing architecture, directly supporting detailed inspection and maintenance around the fueling interface. The platform includes a safety measure via a Lift-up Gate at the entry point of the deck. This gate ensures that once the user is on the platform, the perimeter is secured, preventing accidental falls and complying with stringent aviation safety standards.
This platform addresses the specific operational needs of B787 fuel system maintenance. Maintenance activities in this zone include Refueling/Defueling Operations, Fuel Balance System Checks, Visual Inspections, and Leak Checks and Component Replacement. The platform provides the necessary stable work area for these tasks. This solution is critical because of the aircraft’s advanced fuel management system and the need for consistent precision in its maintenance lifecycle.
The platform is explicitly tailored to the Boeing 787, ensuring perfect contour and required height clearance for accessing the fuel maintenance areas. For other access solutions for this aircraft, consider the Boeing B787 Maintenance Bridging Platform.
