Heavy Maintenance and Full Wing Access with the B737 Wing Dock

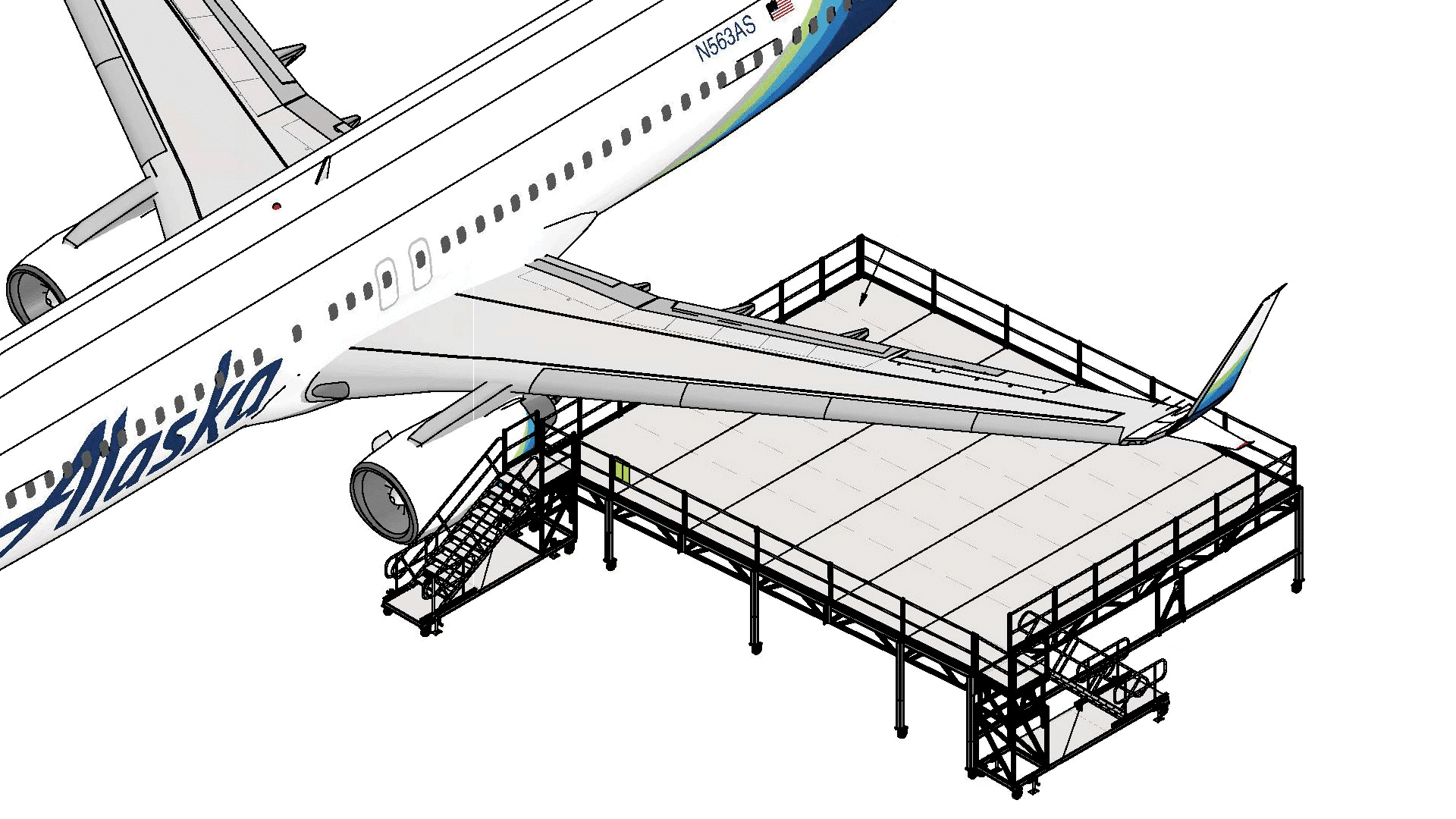

The Boeing B737 Wing Dock is a large-scale, modular access platform engineered for the heavy maintenance needs of the Boeing B737 series aircraft. This maintenance solution provides comprehensive, safe access to critical work areas. It is indispensable for complex inspections and repair tasks, specifically C/D checks and full aircraft spray painting operations. The primary function of this B737 Wing Dock is to position maintenance crews securely at optimal working height, ensuring complete coverage and accessibility across the entire wing structure.
This specific wing dock configuration is engineered to conform perfectly to the contours of the B737 wing. It offers access to the entire area below the wing, including the leading and trailing edges, and the wing tips. The modular structure allows for configuration flexibility in any maintenance hangar environment. Individual modules bolt together securely, enabling fast assembly and potential reconfiguration to suit evolving operational needs.
This design maximizes hangar space utilization, as the open frame structure permits use of the area underneath the dock for storage or other tasks. For total aircraft coverage, consider combining this with our Boeing B737 Tail Dock.
Optimized Safety and Durability
The dock is constructed from an ideal combination of steel and aluminum, balancing sturdy strength and stability with manageable weight. The decking is typically composed of non-slip, Skydrol-resistant materials, such as aluminum checkered plate or coated plywood panels, ensuring a secure footing for personnel even under demanding conditions.
Welded railings with ergonomically rounded edges, along with mandatory handrails and toeboards, maximize worker safety across all working surfaces. Safety is at the heart of everything we do, ensuring crews can perform detailed inspections and extensive repairs efficiently and with the highest degree of safety across the entirety of the aircraft wing.
Enhanced Mobility and Adjustability
A key platform feature is its independent stair system, which provides configurable access points to the working decks. This independent stair can also feature height adjustment capabilities, allowing the platform to be adapted for maintenance access requirements on other narrow-body aircraft types. This enhances the utility and return on investment of the system. Mobility and precise positioning are facilitated by features such as wheels and braking mechanisms, allowing the entire system to be maneuvered into the exact required position for optimal access to the wing section.
Comprehensive Access Zones
The comprehensive access provided by this B737 wing dock system targets all major maintenance zones on the B737 wing. This includes the inner and outboard platforms, the critical wingtip platform, the inner engine platform, and the landing gear platform area. By consolidating access to these multiple points, the platform streamlines workflow and reduces the need for multiple independent access stands, making operations more efficient.
Integrated Utility Options
A suite of available options further enhances the dock’s functionality and productivity. These optional integrations are critical for modern maintenance operations and include lighting installations for adequate illumination, secondary access points for improved logistics, and utility outlets such as electrical power and compressed air connections. Furthermore, the incorporation of self-leveling stairs is a valuable option that maintains level access even when the aircraft’s position or the hangar floor is slightly uneven.
A towbar is also included to facilitate repositioning within the facility. This maintenance solution is tailored for rigorous, heavy maintenance tasks on the Boeing B737 wing. Its durable construction, tailored access points for C/D checks and painting, modular flexibility, and integrated safety and utility options make it a leading component for any facility undertaking large-scale aircraft maintenance on narrow-body airframes.
