The Boeing B737 Tail Dock: Precision Access for Aircraft Maintenance

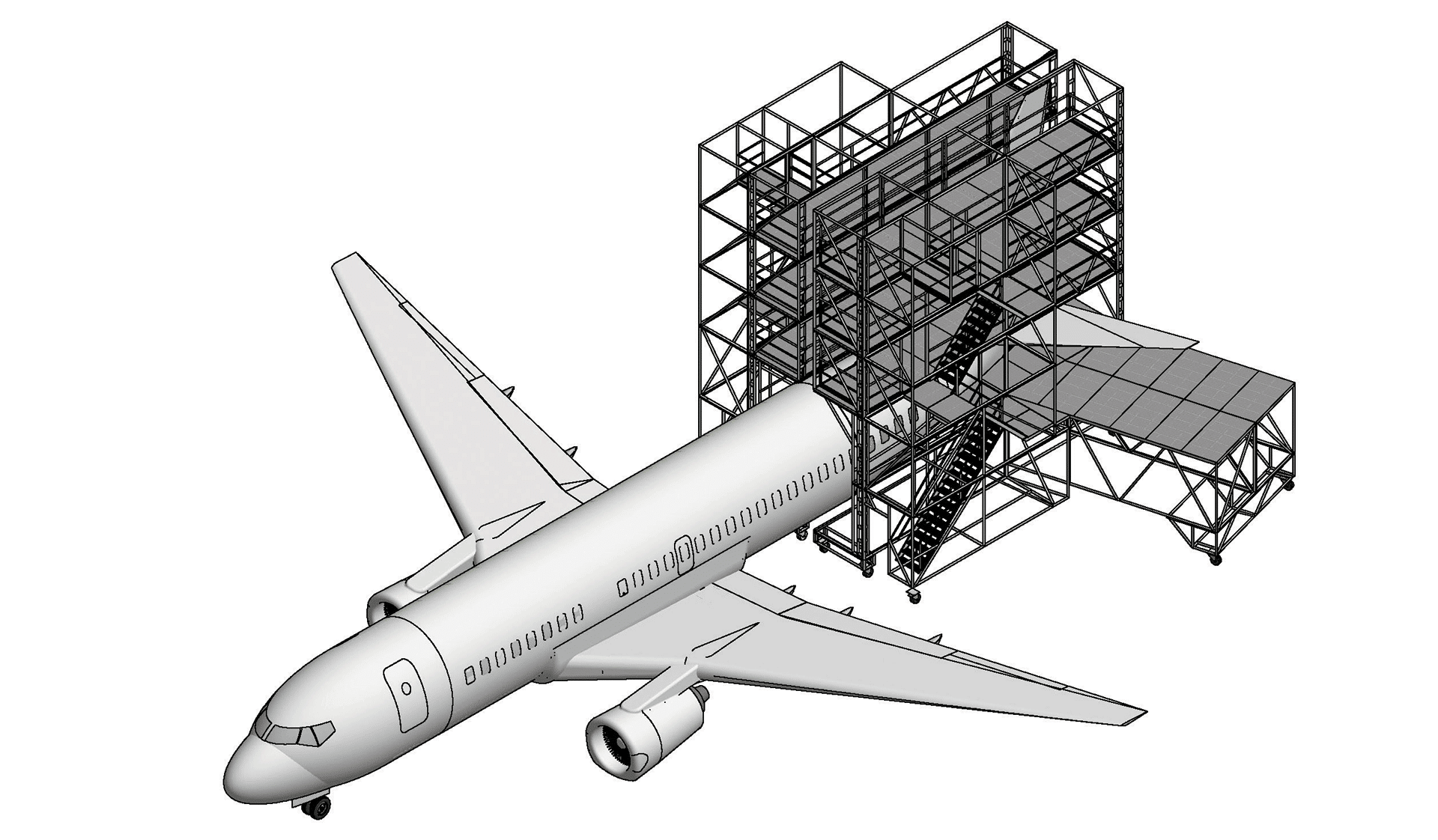

The Boeing B737 Tail Dock is an advanced, purpose-built access platform engineered to revolutionize aircraft maintenance, inspections, and repairs on the vertical and horizontal stabilizer sections of the Boeing 737 series aircraft. This foundational piece of aviation infrastructure is thoroughly designed to provide comprehensive, multi-level access, ensuring personnel can work safely, efficiently, and simultaneously across all critical maintenance areas of the tail section.
Engineered for Safety and Durability
Crafted primarily from high tensile aluminum, this system combines exceptional structural strength with lightweight efficiency, allowing for sturdy stability necessary for rigorous maintenance activities while ensuring maneuverability. The modular design of the Boeing B737 Nose Dock is a key feature, allowing individual sections to be moved into position independently around the aircraft’s tail. This flexibility means the system can be adapted quickly to the hangar environment and precisely positioned for ideal coverage, whether the aircraft is on its wheels or stabilized on jacks.
Superior Safety Features
Safety is paramount, and the B737 Tail Dock incorporates a suite of sturdy features to protect both maintenance personnel and the aircraft structure. All working surfaces are equipped with non-slip materials, minimizing the risk of slips and falls. Secure guardrails surround the perimeter of each platform level, and, critically, the system includes removable handrails on the inside face.
These removable sections allow mechanics unobstructed access to the aircraft skin and vital components during complex procedures, while maintaining a secure work environment when installed. Locking mechanisms and precision-engineered wheel and brake systems ensure the platform remains firmly anchored during operations, eliminating unwanted movement.
Empennage and Stabilizer Access
The primary function of this docking system is to facilitate in-depth work on the aircraft’s empennage—the entire tail assembly. It grants maintenance crews full vertical access to the Vertical Stabilizer (fin) and rudder, crucial for inspecting and servicing antennae, lighting, structural components, and control surfaces. Furthermore, the design incorporates specific modules to address the Horizontal Tailplane (HTP) and elevators.
These modules often feature height-adjustable cantilevered structures and multiple floor levels, providing ergonomic positioning for inspecting the trim mechanism, accessing the stabilizer compartment, and performing detailed repairs on the HTP’s leading and trailing edges.
APU Compartment Access
Comprehensive access extends to the Auxiliary Power Unit (APU) compartment, typically housed in the rear fuselage section below the tail. Dedicated, configurable APU floor modules, which may include separate height adjustment capabilities, allow mechanics to perform routine checks, component replacements, and troubleshooting within this critical area without resorting to less stable or less comprehensive access methods.
Enhanced Workflow Efficiency
The B737 Tail Dock significantly enhances workflow efficiency by serving as a fully equipped workstation. It includes foundational utilities integrated directly into the design, such as readily available power and pneumatic connections at each work face. This eliminates the need for long, trailing cables and hoses across the hangar floor, reducing trip hazards and ensuring tools and lighting are immediately accessible wherever they are needed on the tail section.
The large platform spaces allow for the simultaneous presence of multiple mechanics and provide ample room for tooling, testing equipment, and temporary storage of aircraft components removed during disassembly. The modular, high-tensile aluminum construction guarantees longevity and adaptability across various demanding aircraft maintenance cycles.
