Dual-Level Design for Comprehensive Servicing
Introducing the specialized Dual-Level Access Platform, methodically engineered to facilitate foundational heavy maintenance tasks on the Airbus H175 super-medium twin-engine helicopter. This sturdy access solution, the H175 Side Access Platforms, is purpose-built to provide maintenance personnel with safe, efficient, and first-class reach to the most challenging areas of the aircraft, ensuring thorough and timely servicing.
Overcoming High-Altitude Servicing Challenges
The Airbus H175 presents several unique maintenance access challenges that this platform specifically overcomes. The helicopter’s main rotor (a 5-blade system) and the engine cowlings are situated very high, making routine inspections and deeper maintenance impossible from the floor level.
Secure Access to High-Reach Components
The dual-level structure grants direct, unhindered access for critical tasks, including detailed checks of the rotor head dampers and general servicing of the engine bays. Moreover, the platform’s thoughtful design addresses the verticality of the aircraft’s systems. The H175’s conventional tail rotor is mounted on a tall T-tail, which is typically impossible to reach safely from the ground. This dual access system provides the necessary elevation to perform foundational checks and maintenance on the tail rotor hub and gearbox, ensuring the integrity of the crucial flight control surfaces.

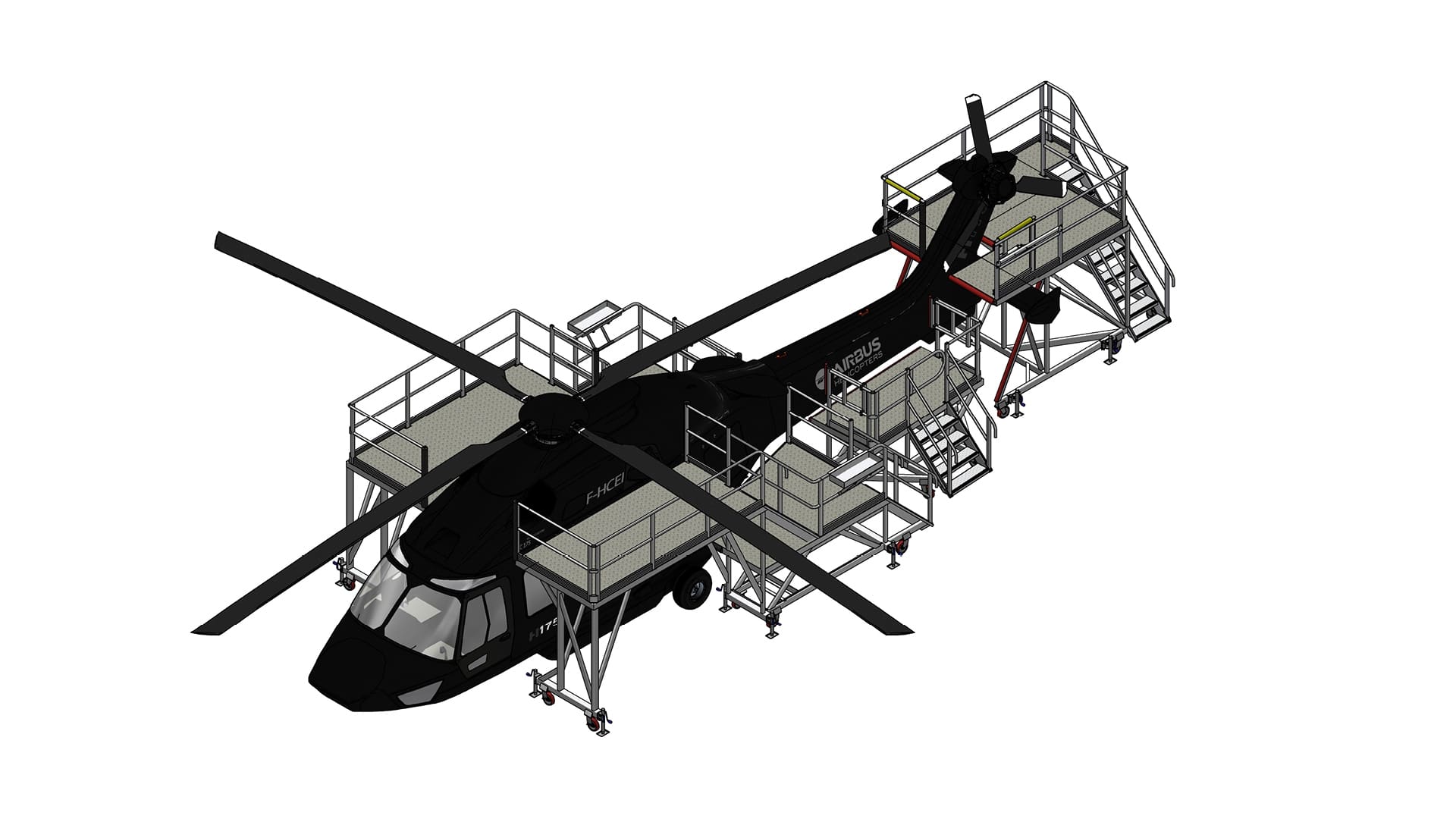

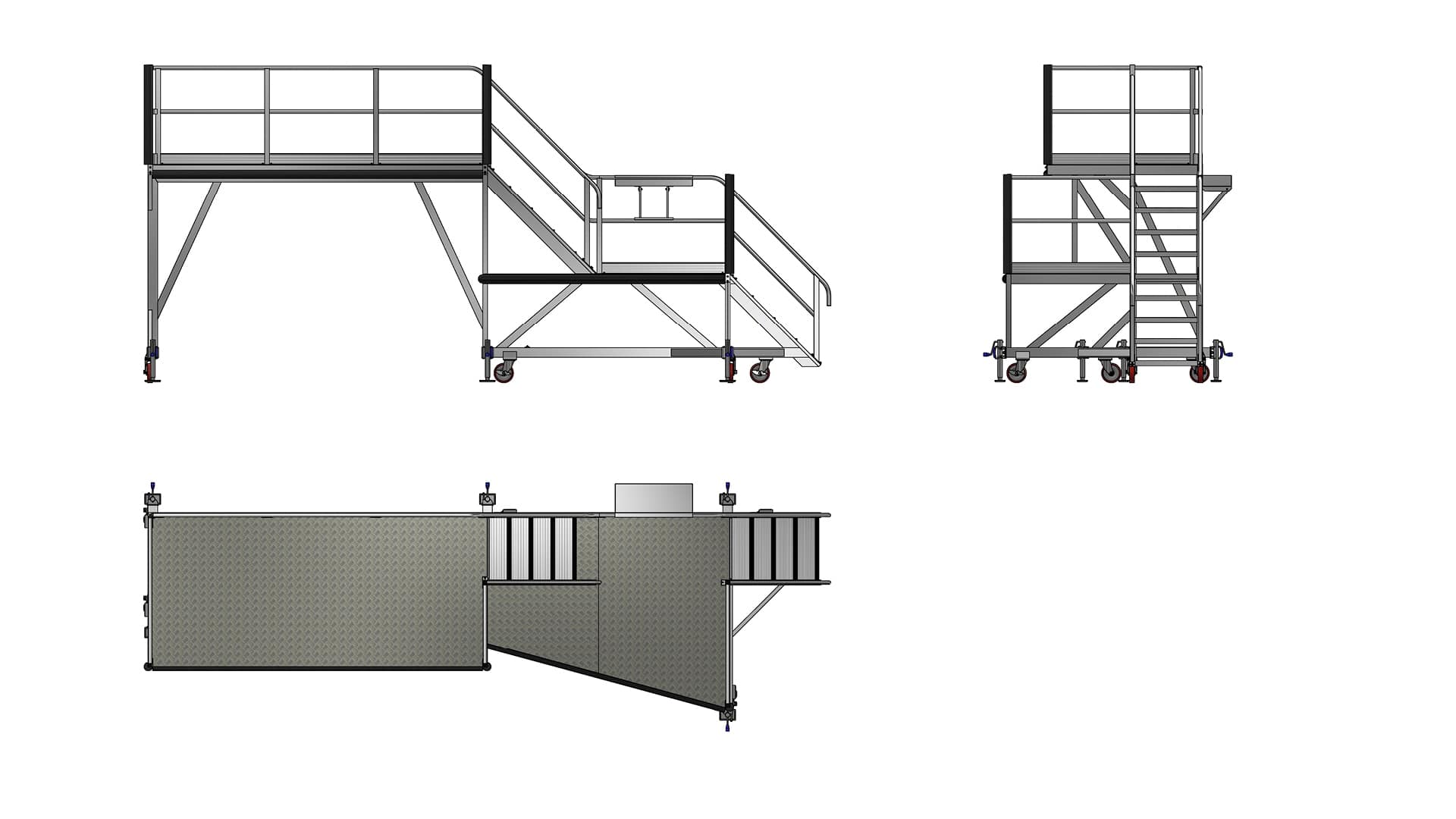

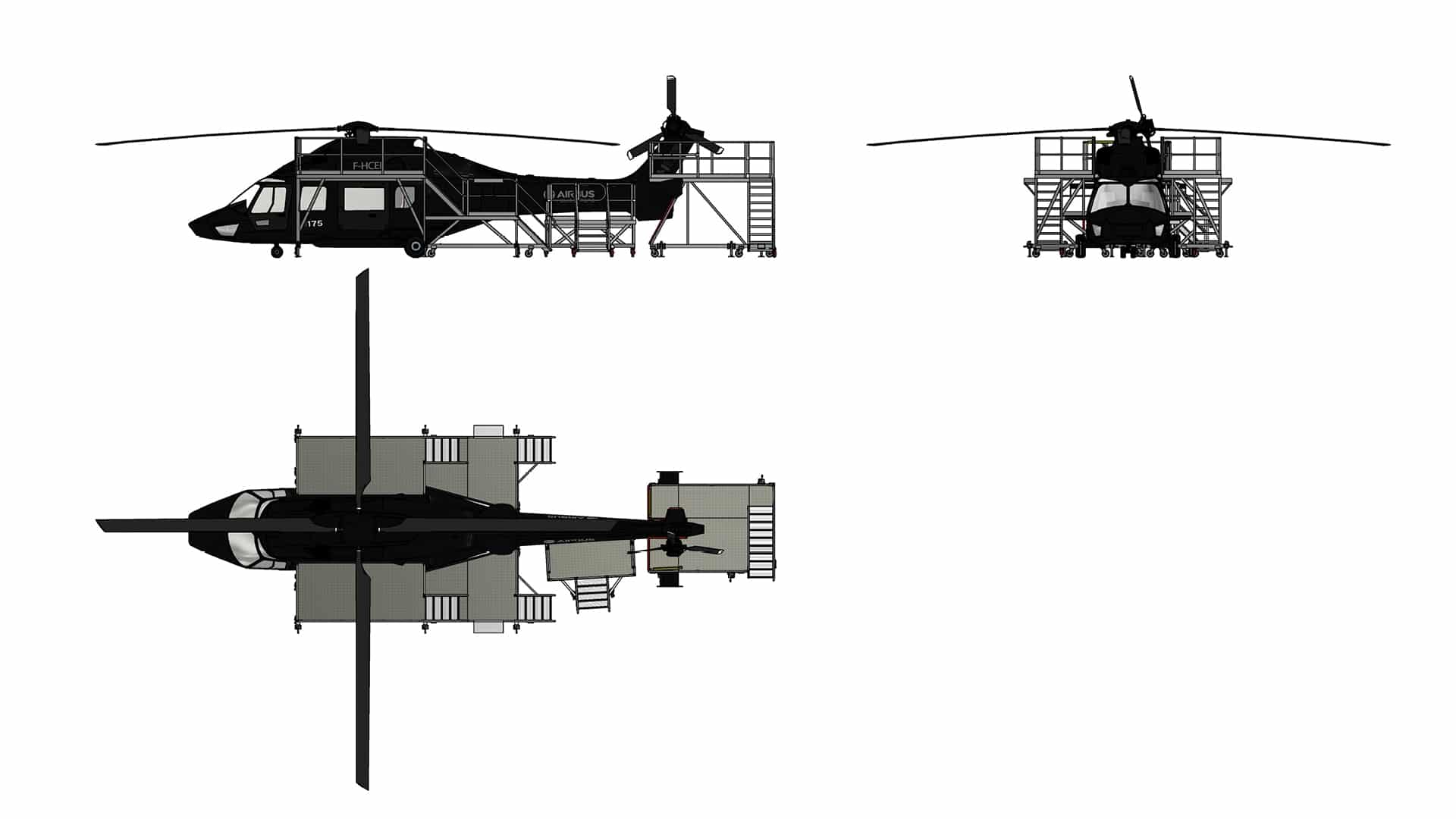

Designed with versatility and ease of use in mind, the platform features 200mm Swivel Braked Plate Castors and integrated Wind-Down Jacks, allowing 1-2 personnel to easily maneuver the unit into precise position and then securely lock it down for a stable working environment. The platform’s dual-height design is critical for comprehensive access, allowing technicians to reach both the elevated main rotor system and the engine area simultaneously.
Integrated Safety and Technician Efficiency
Safety and efficiency are paramount in the design. The H175 Side Access Platforms incorporate Anti-Slip Nosing on all steps and decks, minimizing the risk of slips and falls, especially during intensive maintenance activities. Removable Tool Trays and convenient Hooks on the side guardrail ensure that foundational tools and components are always within arm’s reach but stored securely, reducing trips and increasing workflow.
Optimized Component Handling and Storage
Furthermore, EVA Foam Fenders are integrated to protect the delicate aircraft structure from accidental damage during positioning and use. Maintenance teams often require access for fuel/oil checks, hydraulics inspection, APU servicing, and verification of emergency flotation devices. By offering a stable, spacious working area ideal for heavy maintenance, the platform supports the detailed attention required for these systems.
Critical System Checks and Stability
The ample room afforded by the design ensures that multiple technicians can work comfortably and effectively, particularly where complex component removal or installation is necessary. For avionics and autopilot maintenance, especially vital for IFR capabilities, technicians require a steady environment to manage sensitive equipment. The platform’s inherent stability, secured by the wind-down jacks, provides this crucial foundation, far surpassing the stability of conventional steps.
Ergonomic Stairway and Stable Foundation
The integral stair access is a major ergonomic advantage, allowing users to carry heavy or bulky tools and diagnostic equipment to and from the work area safely, eliminating the reliance on ladders or unstable makeshift solutions. This design feature supports adherence to stringent maintenance procedures by improving both access and material handling. It ensures that all parts of the aircraft that require elevated access—from the highly situated rotor systems to the high tail assembly and retractable landing gear components—can be serviced safely and efficiently, significantly streamlining heavy maintenance operations and increasing aircraft uptime. For complementary access to the rear of the aircraft, consider the Airbus H175 Tail Access Platform.
