The Ultimate Access Solution for Robinson R22/R44 Maintenance

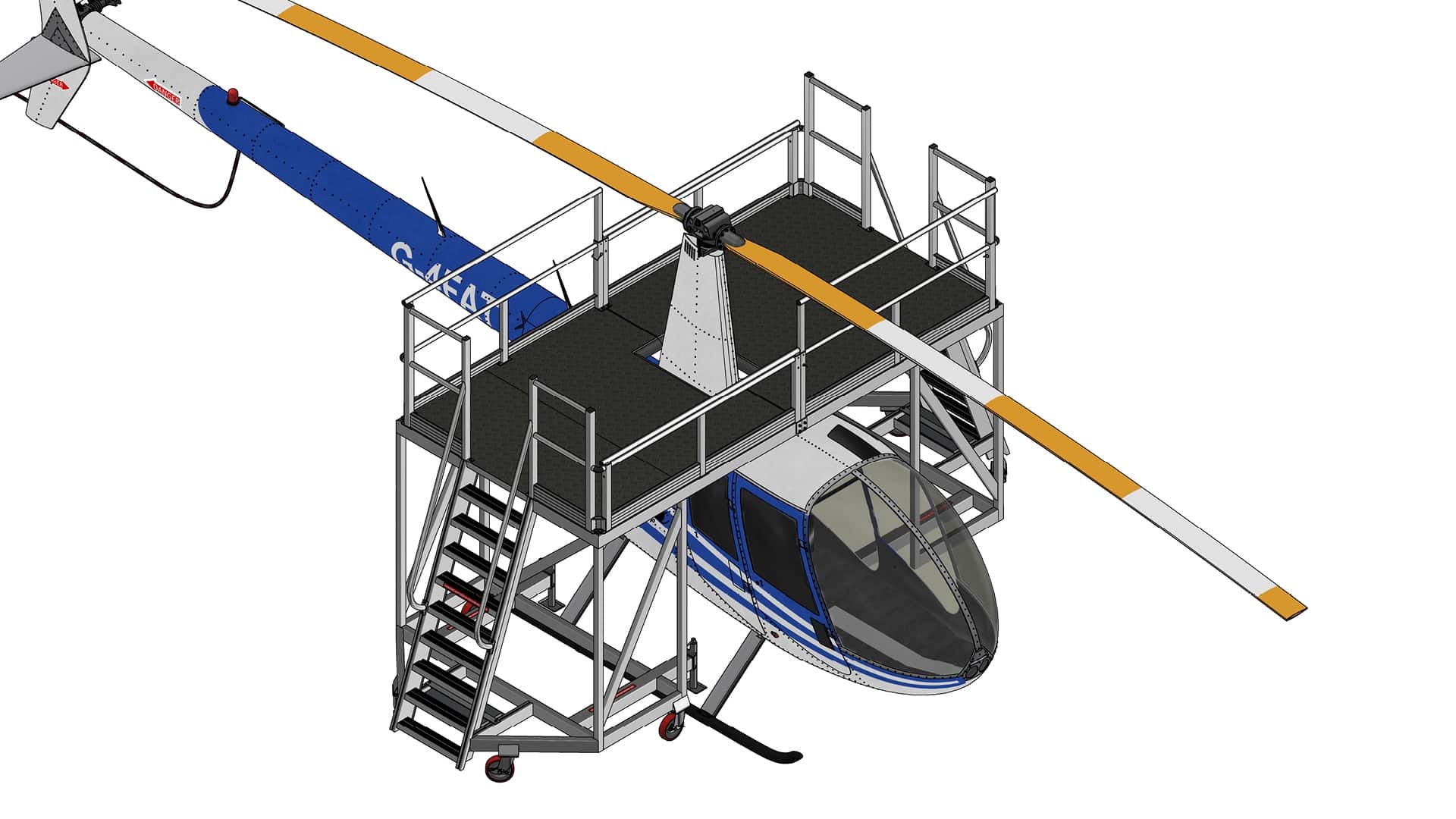

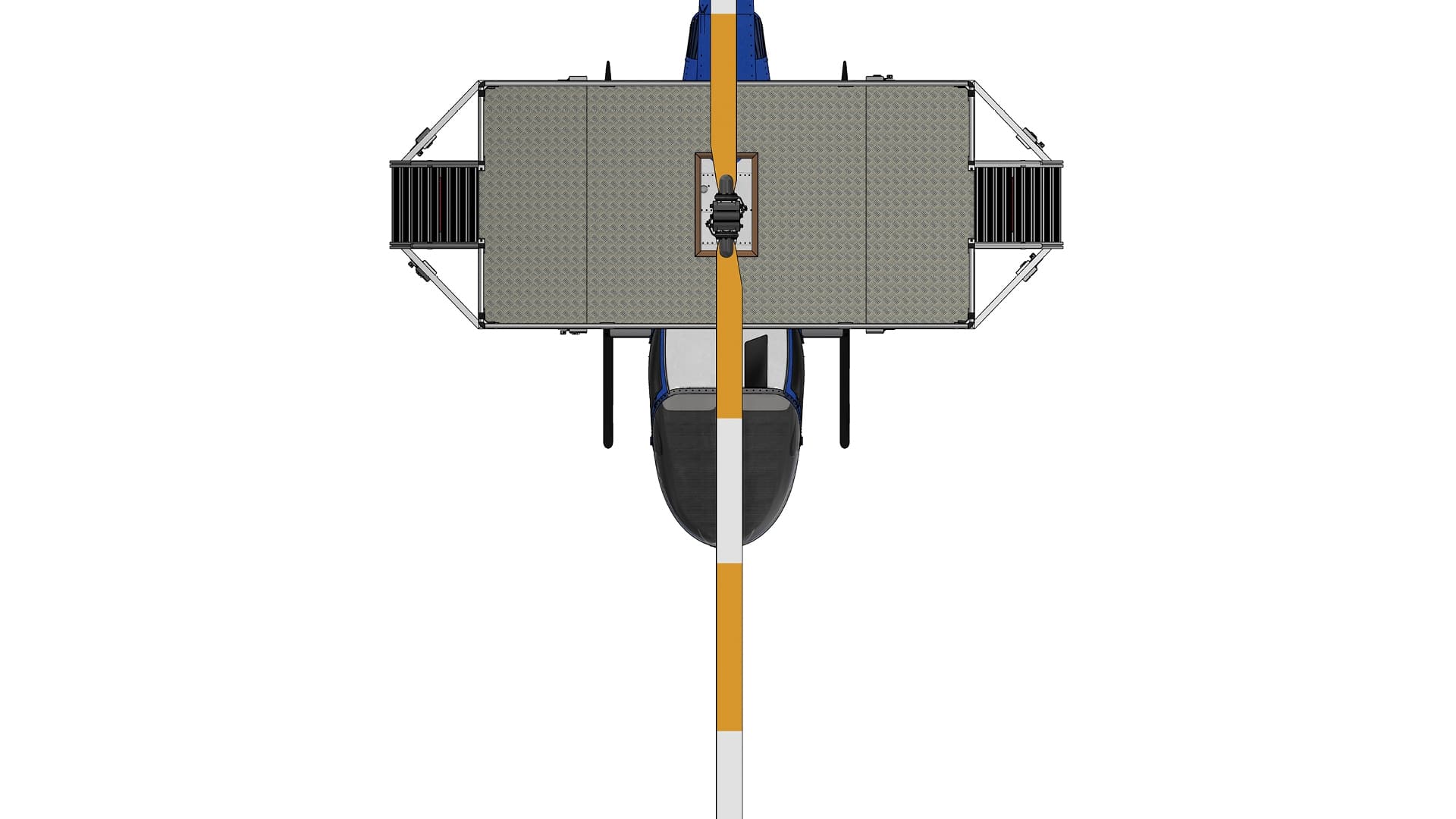

This specialized two-piece platform set is methodically designed to transform maintenance procedures for the main rotor head area and rotor blades of the Robinson R22 and R44 piston-engine helicopters. The R22/R44 Main Rotor Head Platform Set provides a large, stable working deck, allowing heavy maintenance tasks to be performed safely and efficiently across the rotor mast and teetering hub assembly.
Innovative Cantilevered Access

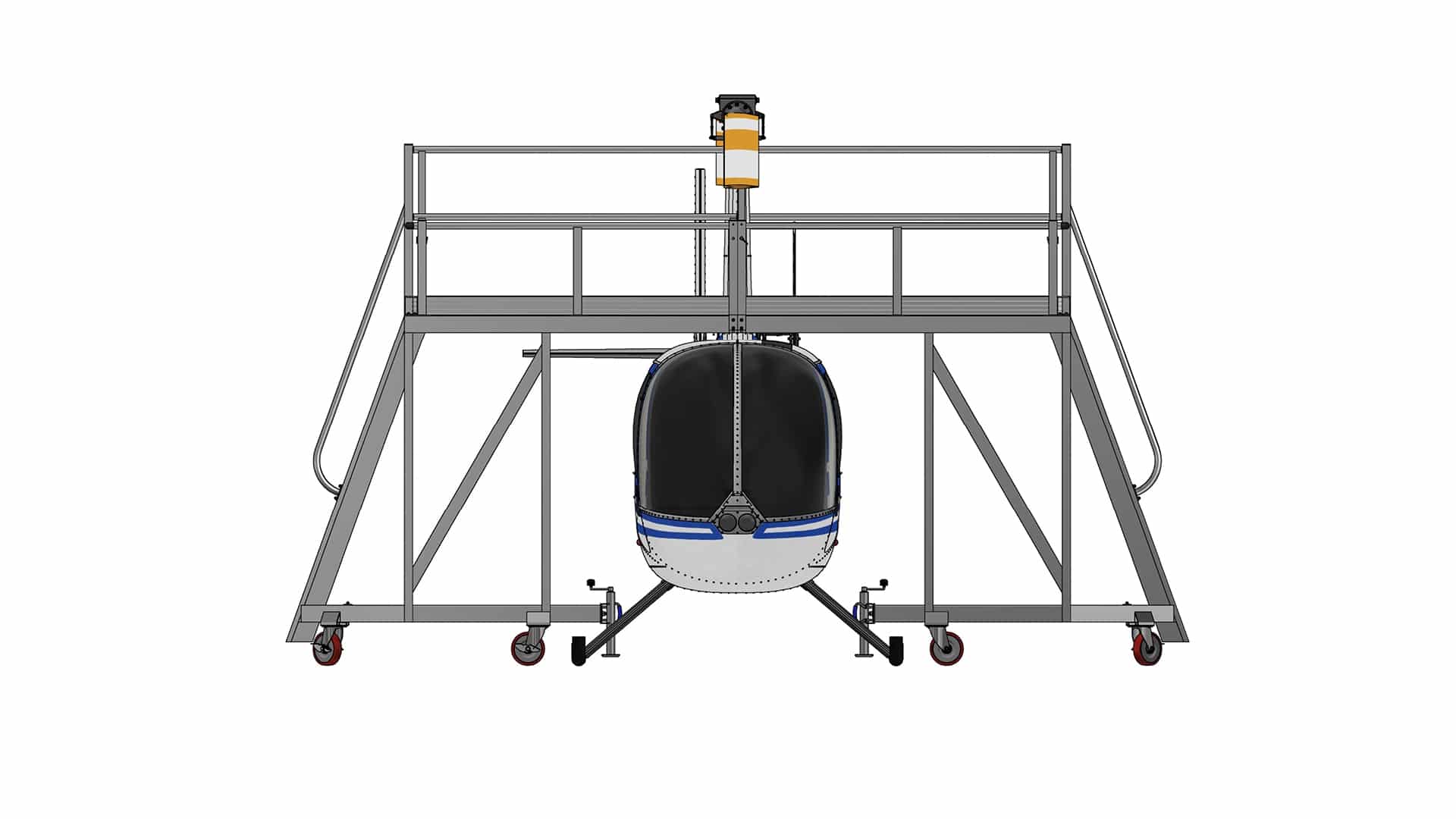

The platform set is engineered to provide completely unimpeded access, addressing the unique challenges presented by these popular light aircraft. Innovative features include a clear overhang, which extends over the aircraft skids and airframe. This cantilevered structure ensures that technicians can position the platforms precisely and move them around the aircraft at will, maximizing accessibility without obstruction. Counterweights are integrated as required to ensure stability and clearance over the helicopter skids.
Robust and Lightweight Construction
The construction uses lightweight aluminum, offering an ideal strength-to-weight ratio for easy maneuverability without compromising structural integrity. All aircraft contact points feature protective foam and rubber buffers, shielding sensitive surfaces during maintenance operations.
Maximizing Safety and Efficiency Main Rotor Head Platform Set
Flexible Configuration Options
Flexibility in access is catered for to suit varying facility requirements. The R22/R44 Main Rotor Head Platform Set is available with a choice of either sturdy ladder access or comfortable stair access, depending on facility preference. Furthermore, a 70° access version is available for specific operational requirements, providing an excellent range of movement for technicians.
Safety and Platform Integrity

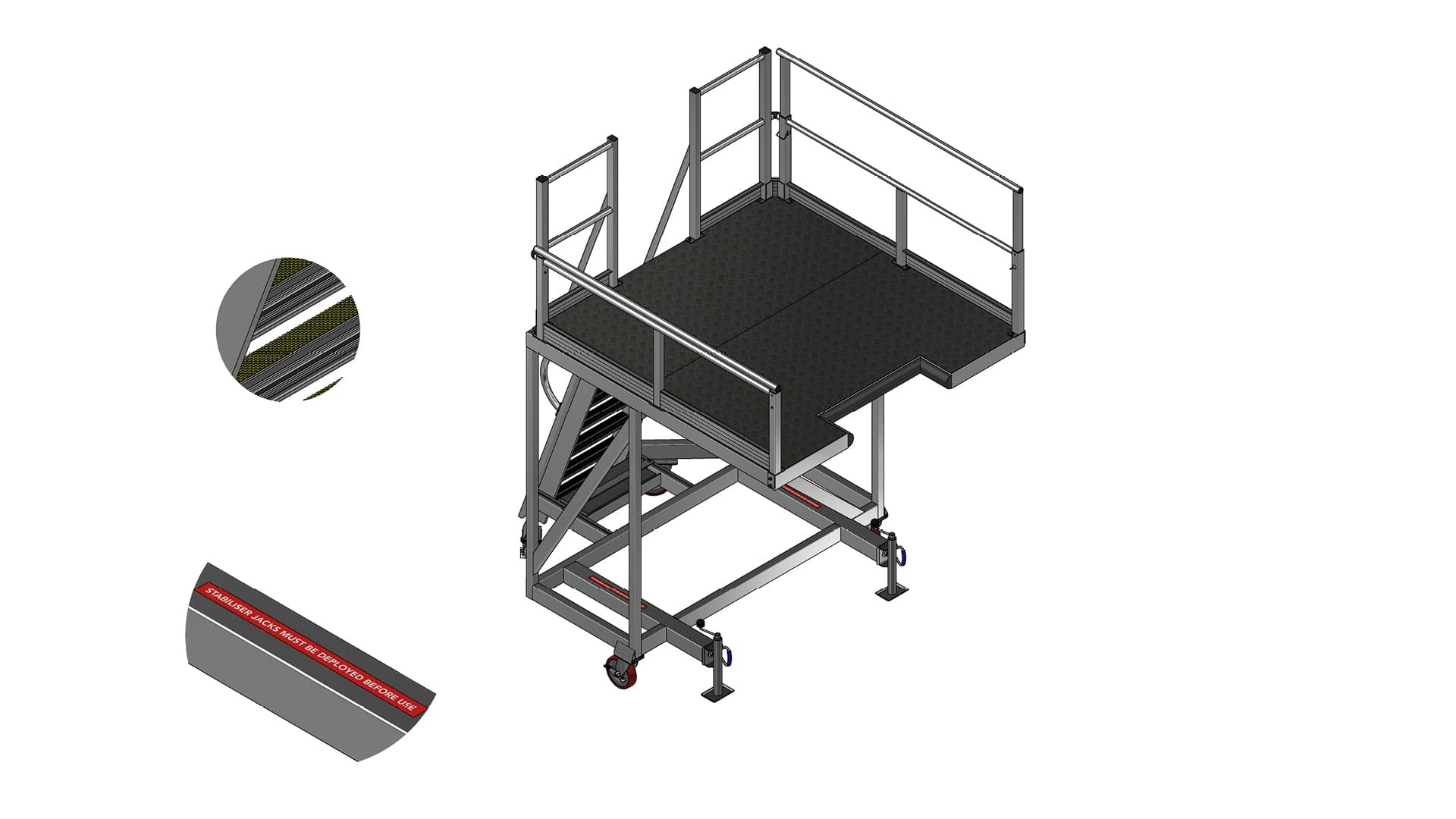

Safety and aircraft protection are paramount in this design. The large working deck is surfaced with hard-wearing treadplate decking, complemented by anti-skid nosing for enhanced footing security. For technician safety, telescopic handrails are installed on the sides of the platform.
Engineered for Rotor Blade Clearance
The stand features a crucial retractability capability, allowing these guardrails to be lowered or adjusted to avoid clashing with the natural droop of the rotor blades when the platforms are being moved into position. This ensures smooth operations around the aircraft.
Effortless Mobility and Positioning
Mobility around the hangar is provided by 200mm swivel/braked castors, allowing for secure positioning when in use and easy relocation when not. This simple, reliable setup ensures the equipment is immediately useful for your maintenance team, much like other specialized maintenance platforms like the Bell Helicopter 206 Flight Line Stand.
Enhancing Rotor System Longevity

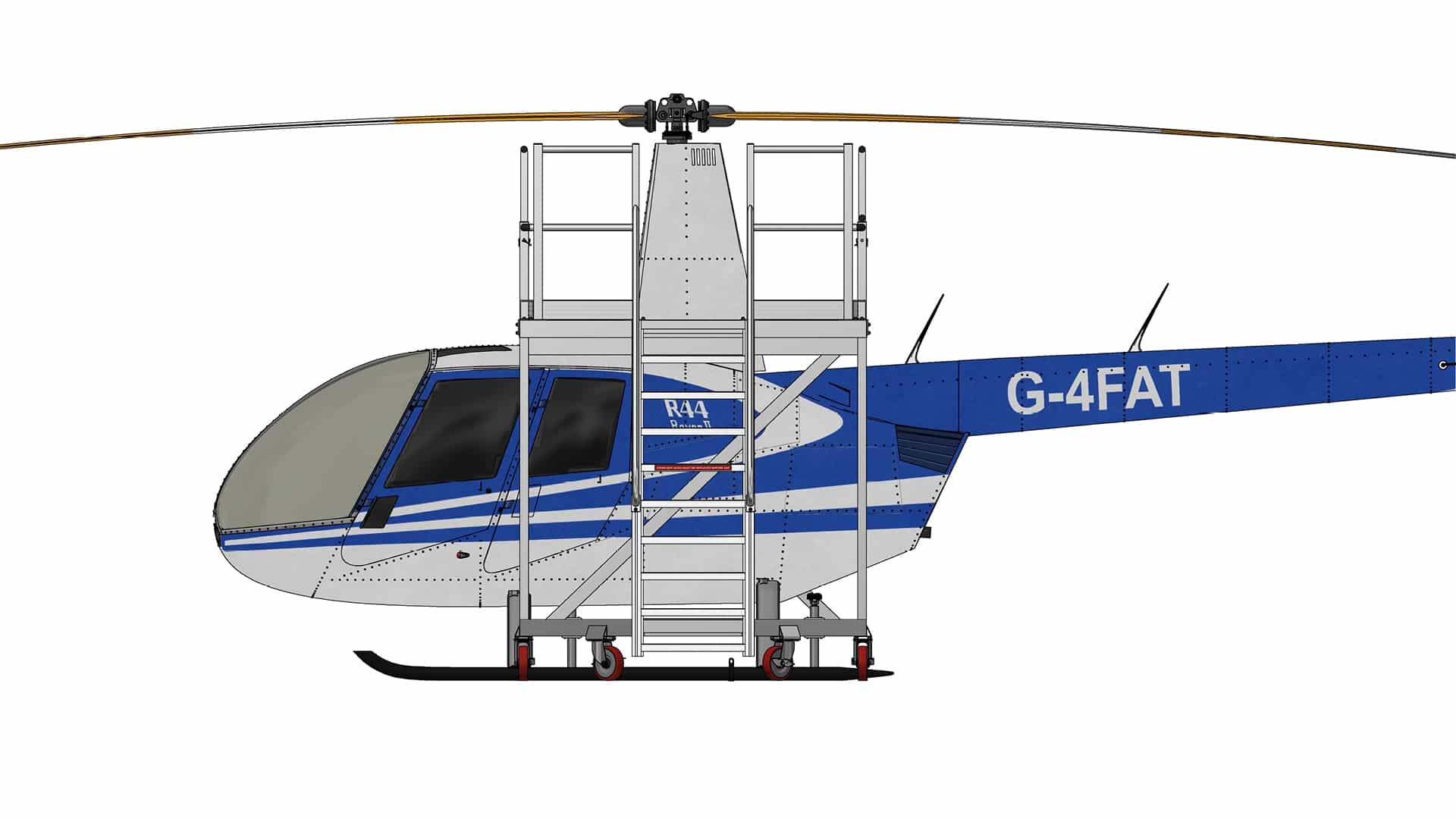

This platform set is an indispensable tool for all routine and heavy maintenance activities related to the R22/R44 main rotor system. Given that the R44 main rotor mast height is approximately 2.4 meters (8 feet), this elevated platform is critical for ergonomically sound and safe access. By providing a secure, expansive, and high-reaching work surface, this set significantly improves the efficiency and precision of complex rotor and blade tracking procedures. The result is a professional environment that keeps people safe and ensures the longevity and reliability of the aircraft fleet.
