Ensuring Compliance with the AW139 Tail Boom Access Platform

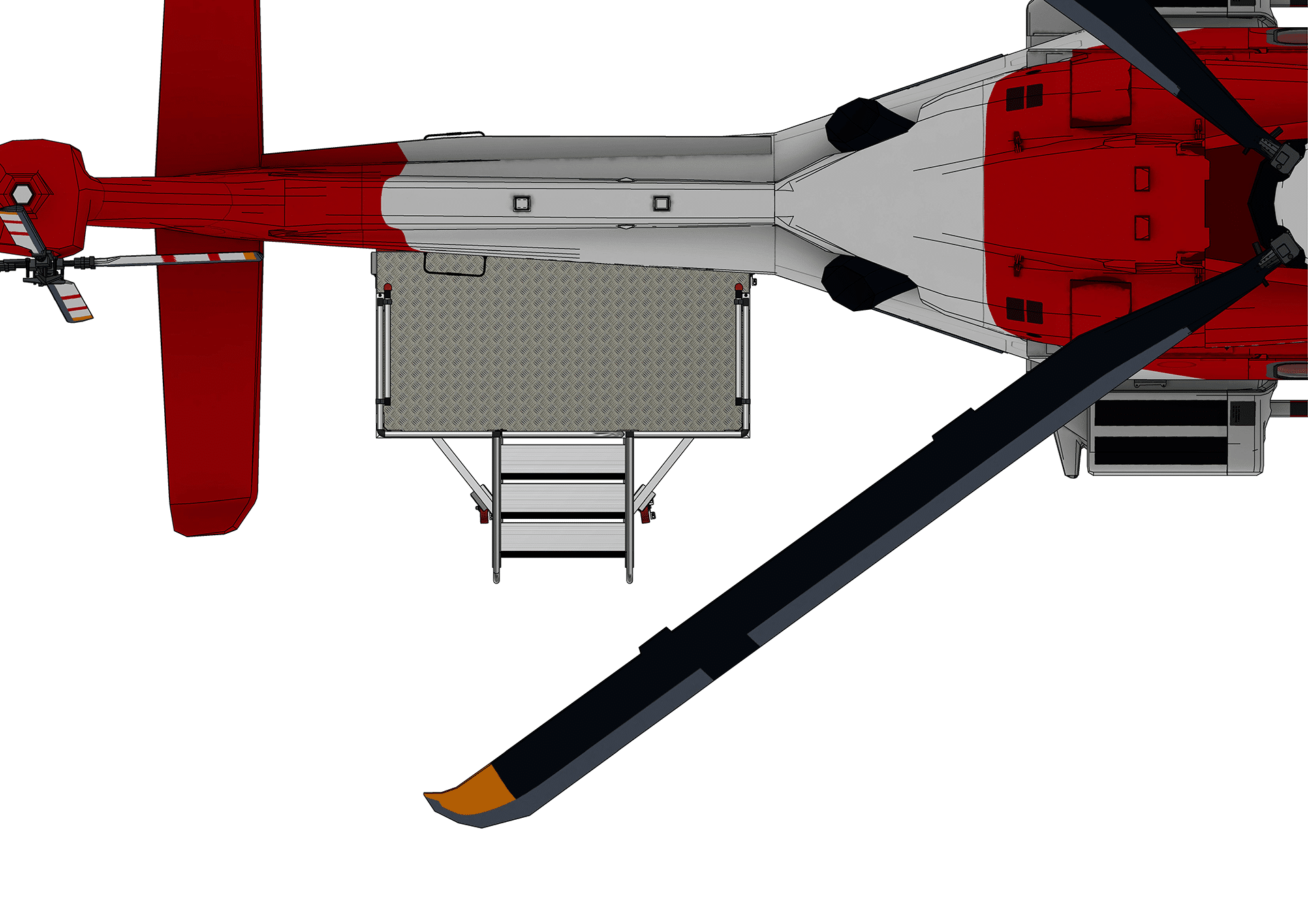

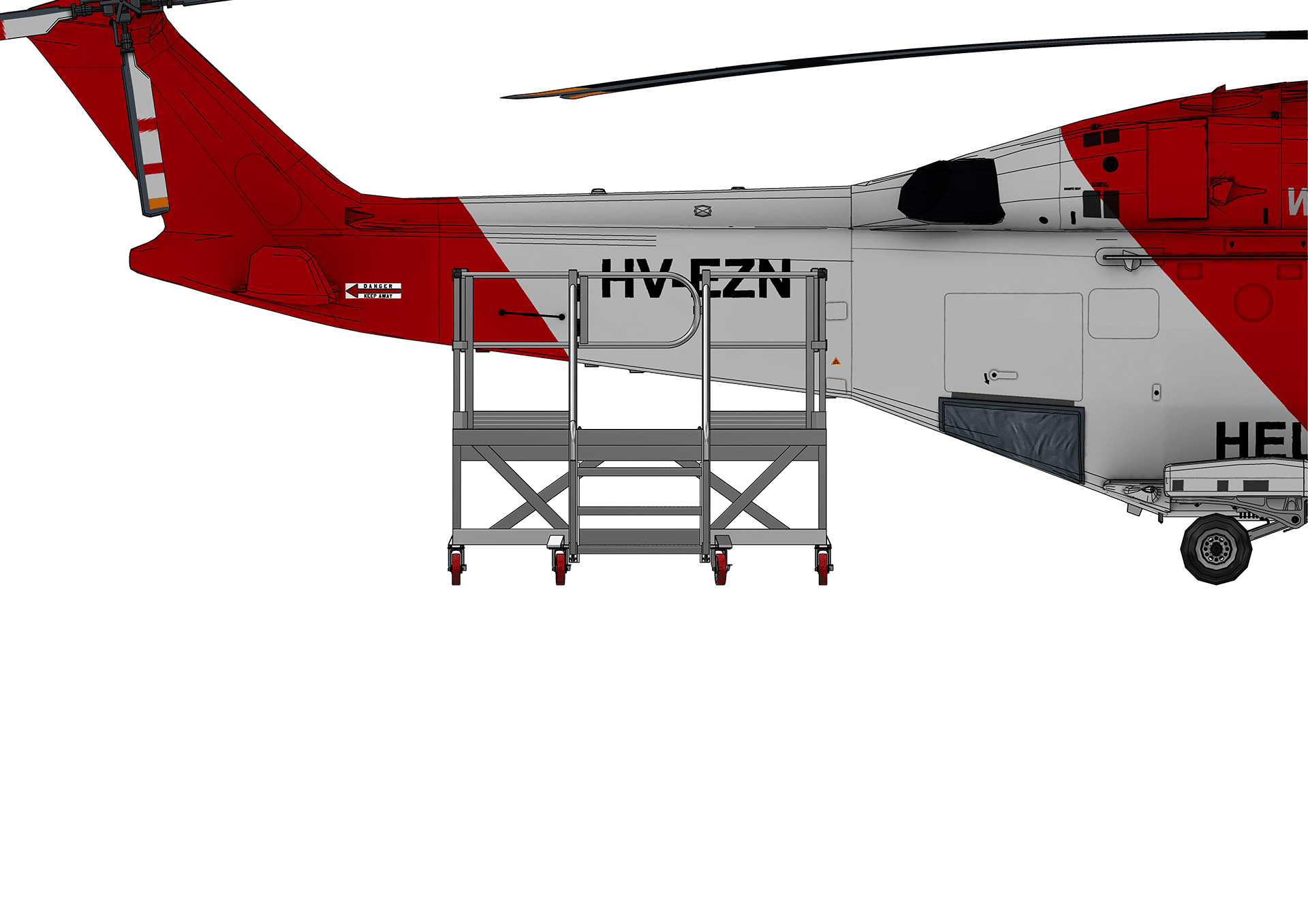

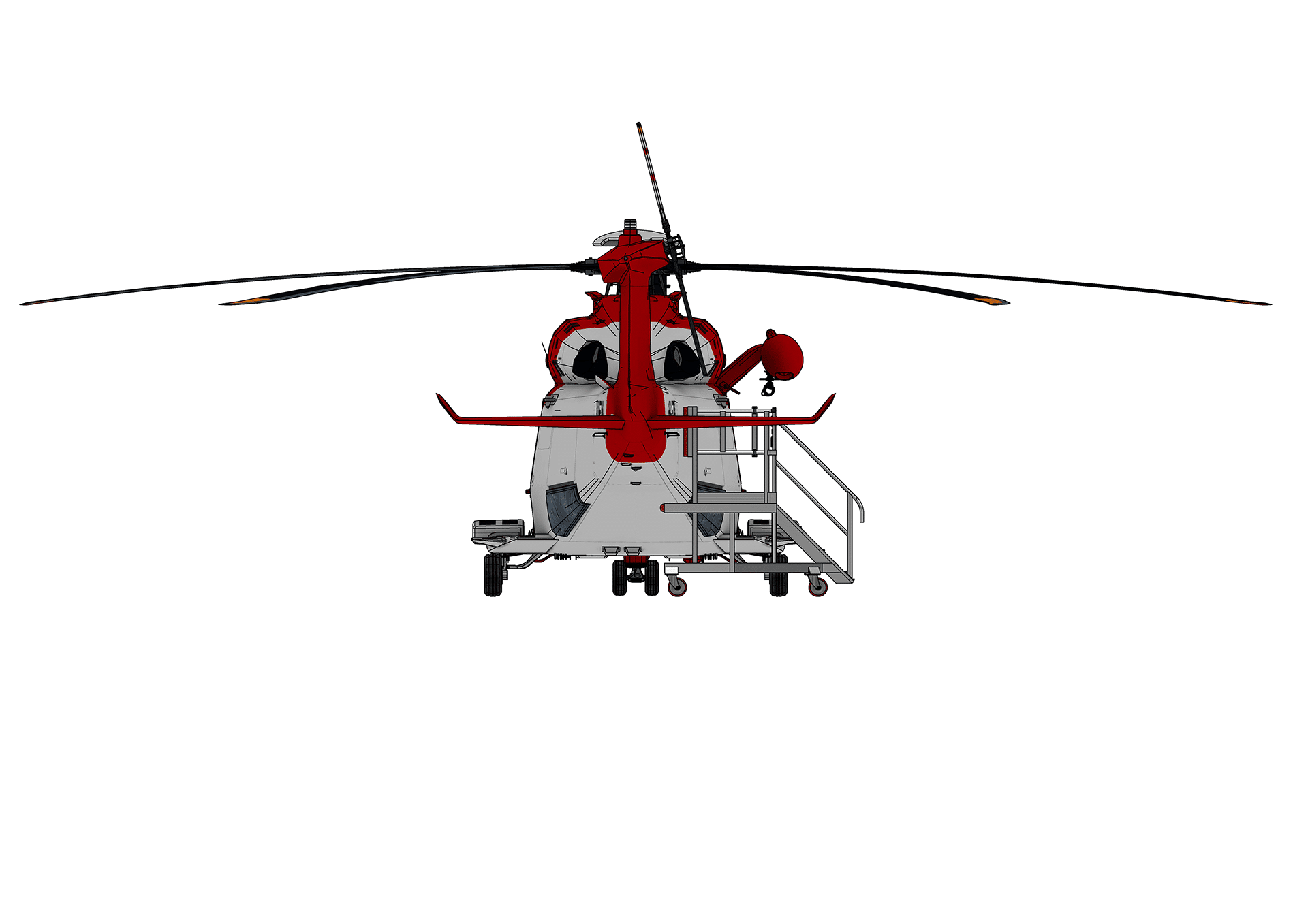

The Leonardo AW139 Tail Boom Access Platform is an expertly engineered solution providing maintenance crews with safe, unrestricted access to the AW139 helicopter’s critical tail section. This platform addresses inherent safety challenges and access difficulties associated with maintaining this medium twin-engine helicopter, particularly around the high tail rotor and the tail boom areas needing frequent inspection and service.
Mitigating Height Hazards for AW139 Maintenance

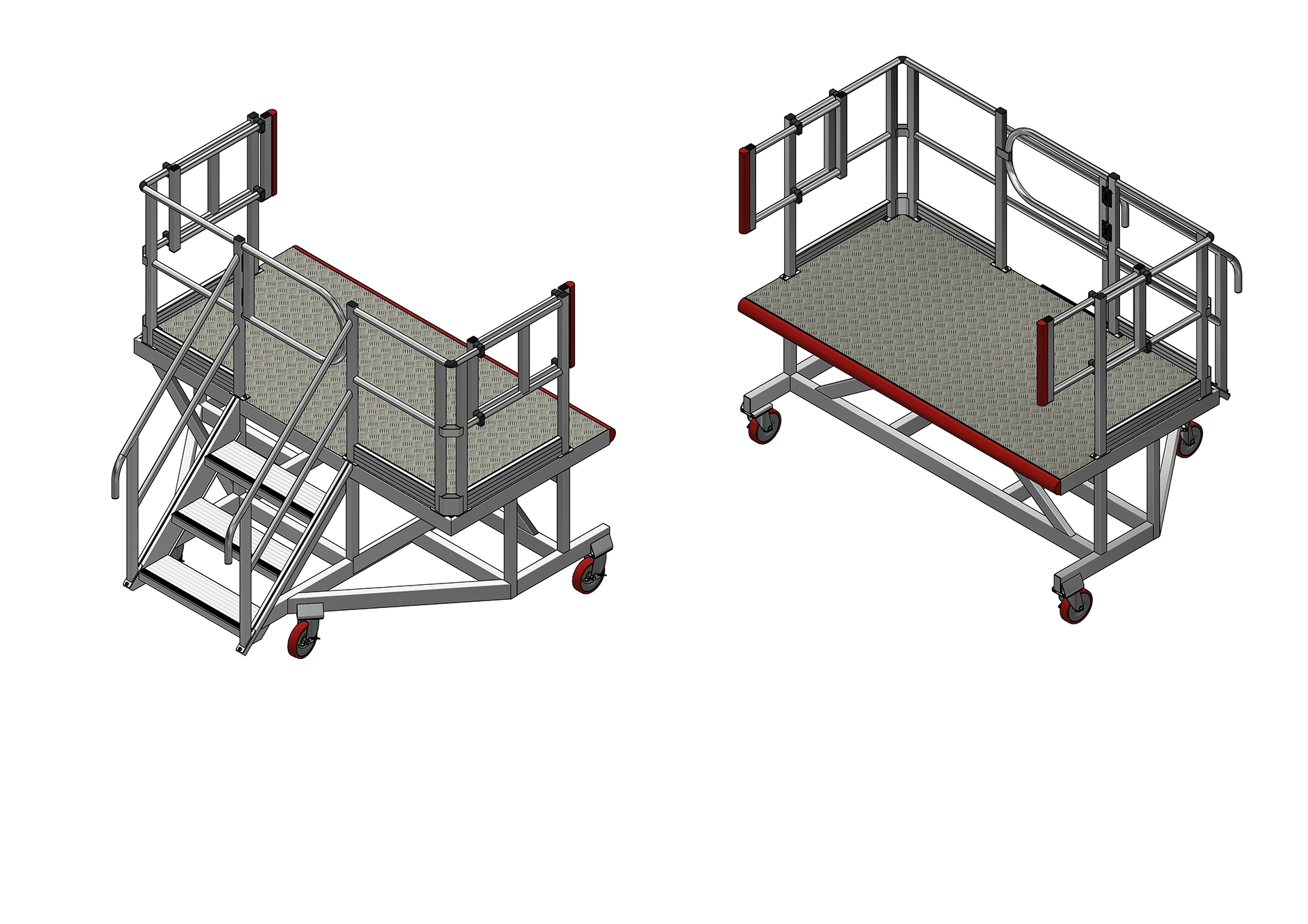

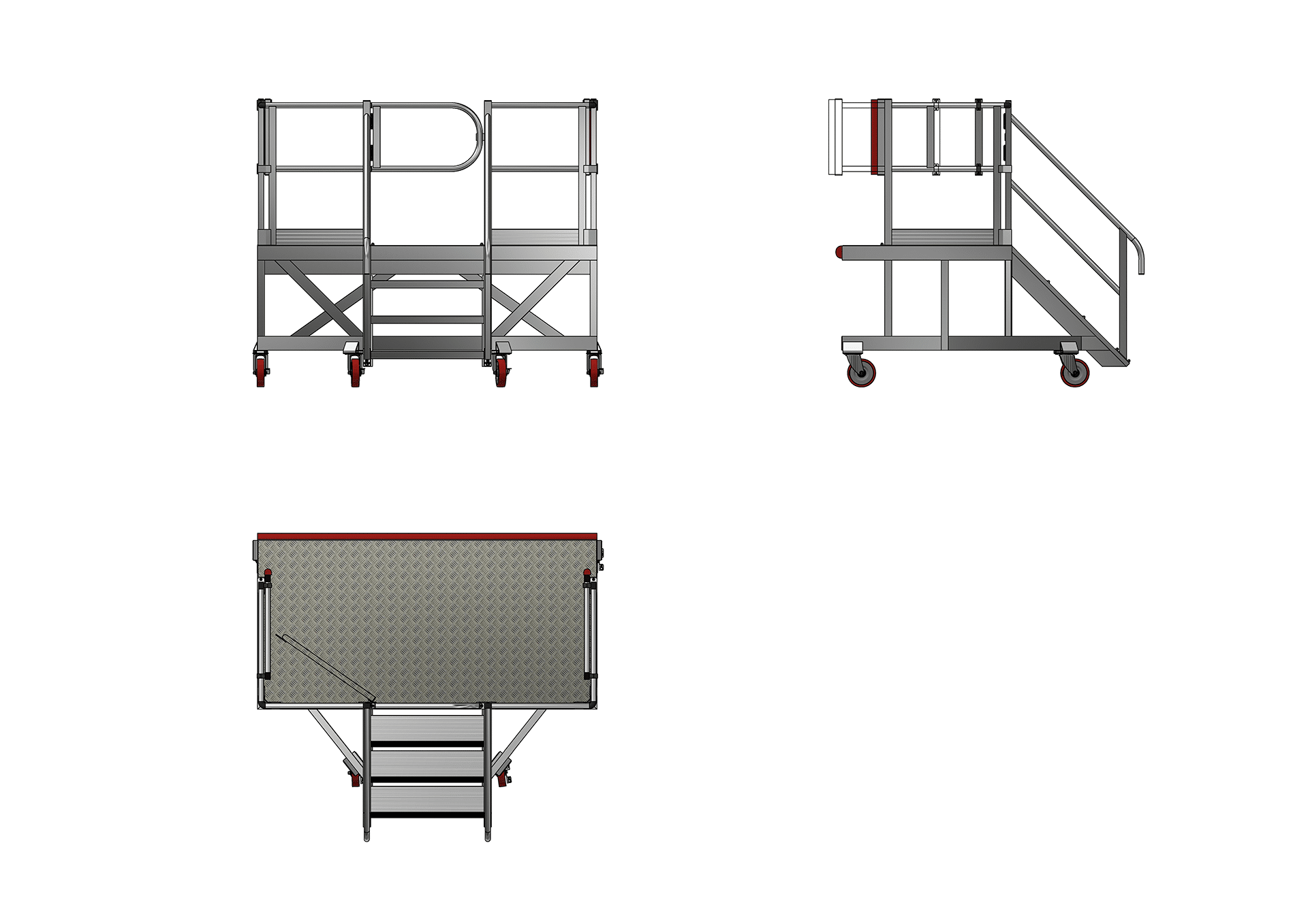

Maintenance on the AW139 involves working at height, where mechanics face fall hazards when accessing the curved, slippery roof (around 3m high) or the tail rotor (around 10ft high). This purpose-built platform mitigates these risks. It offers a sturdy, fully welded structure that positions workers securely against the aircraft profile. This is safety first. This capability ensures the platform is readily available for general purpose maintenance and inspection checks elsewhere on the aircraft, enhancing its versatility.
Precision and Protection via Telescopic Guardrails
Innovative features include telescopic guardrails. These rails allow for precise maneuvering and positioning against the delicate contours of the AW139 tail boom without clashing or damaging the aircraft. Once positioned, the guardrails close, eliminating gaps between the platform and the helicopter. This removes the risk of falls—a paramount safety consideration in aircraft maintenance. Consider pairing this platform with a dedicated stand for tail rotor maintenance.
Ergonomic Access and Platform Features
Access to the spacious work area uses a 45° stair, equipped with anti-skid nosing for maximum security. This enables mechanics to easily carry foundational tools and parts. The platform itself features treadplate decking, providing a durable, slip-resistant surface. Further enhancing safety is the inward self-closing swing gate, which ensures the work zone remains secured at all times. The larger platform area is indispensable for maintenance personnel requiring adequate space to work comfortably.
Enhanced Mobility and Aircraft Protection
Mobility is foundational in a hangar environment. The AW139 Tail Boom Access Platform is equipped with four 200mm heavy-duty swivel/braked castors, allowing it to be effortlessly moved into position and securely locked down when in use. Furthermore, the inclusion of foam rubber buffering ensures that while the platform is positioned tightly against the fuselage for safe access, there is no risk of scratching the aircraft’s surface finish. This specialized access equipment translates directly into reduced maintenance time and increased safety compliance.
