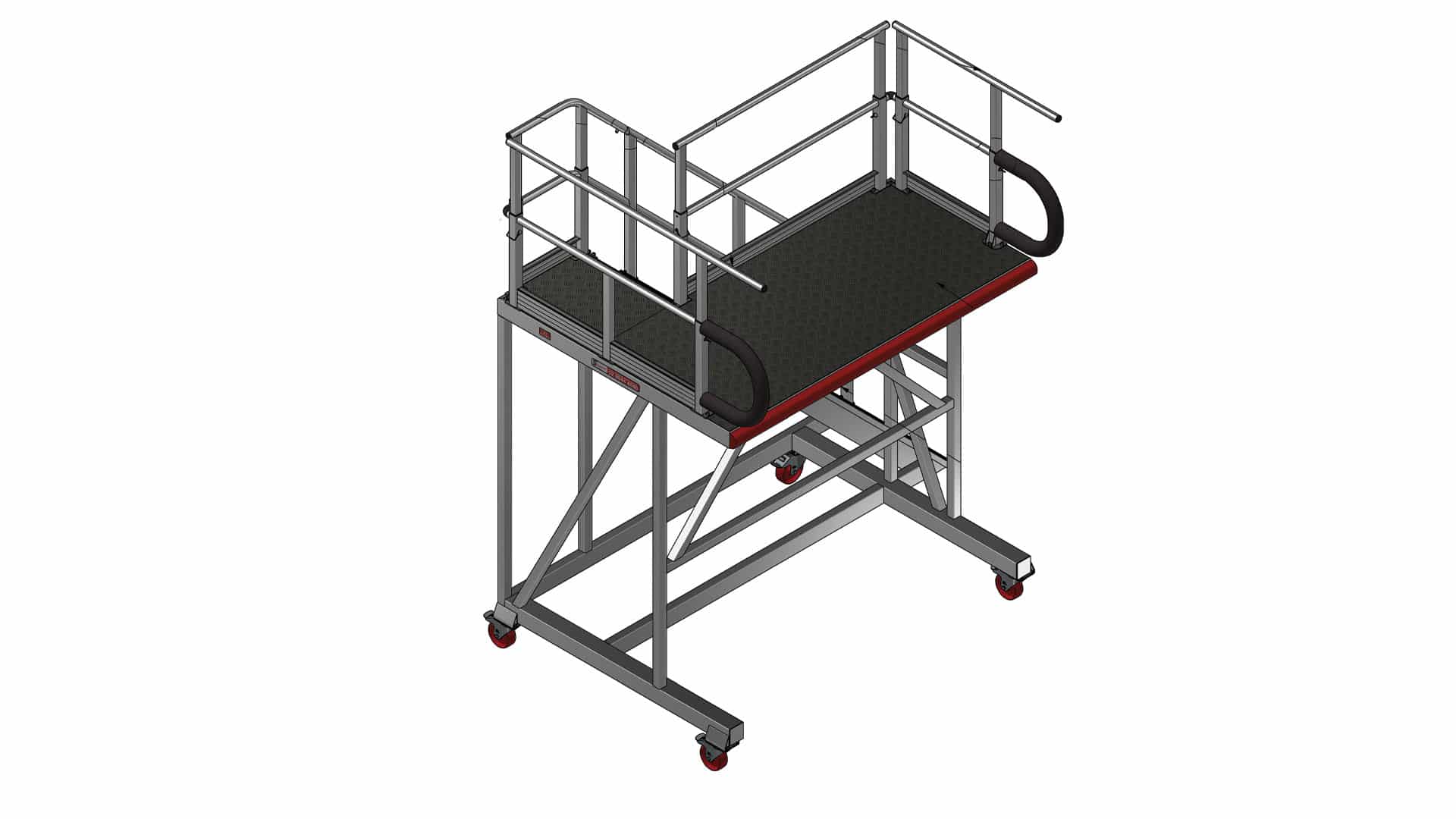

AW139 Telescopic Guardrail Maintenance Stand
This purpose-built AW139 Flight Line Telescopic Stand is specifically engineered for the Leonardo AW139 medium twin-engine helicopter. It improves safety and efficiency during line maintenance tasks, addressing the unique challenges of servicing the AW139—especially in high-traffic or space-restricted hangar environments where precise positioning and minimized risk are paramount.
Innovative features include a telescopic guardrail system with forward-projecting loop handrails that help close off fall-risk zones during operation. The AW139 Flight Line Telescopic Stand allows the guardrails to retract down to mid-rail height, enabling the stand to be positioned close to the helicopter fuselage without clashing with the main rotor blades. Given the AW139’s 5-blade main rotor system and associated hazard area, this retractable feature is a vital safety measure—reducing the likelihood of inadvertent contact with delicate aircraft components while maintaining safe, immediate access for technicians.
Foamed Protection, Positive Locking, and Safe Decking
Operator safety and aircraft protection are integrated throughout the design. A locking system for the stair-side guardrail and pin locks secure the handrails at the top level for reliable fall protection. Both the guardrails and the platform front edge are fully foamed to help prevent scratching or damage to the AW139 skin during close-in positioning—especially important when accessing engine bays and hydraulic system areas. The deck is constructed with durable treadplate decking, providing superior grip and a stable working surface under demanding maintenance conditions.
Compact, Mobile, and Stable for Line Operations
Mobility and ease of use are ensured by 150mm fully braked swivel castors, allowing quick, accurate positioning around the aircraft for multiple check points. Once in place, full braking capability provides dependable stability. The compact footprint of the AW139 Flight Line Telescopic Stand supports fast line maintenance deployment and efficient storage when hangar space is limited.
Optimized Access for Key AW139 Maintenance Areas
This maintenance stand is indispensable for routine checks across several high-access zones of the AW139. For engine access—where technicians must reach top-mounted cowlings—the AW139 Flight Line Telescopic Stand provides a wide, stable staging area that supports tasks such as borescope inspections and oil system checks for the engine and gearbox. It also enables safer access to the main rotor hub and main gearbox for lubrication and bearing inspections, offering secure, level footing for detailed work on elevated systems.
In typical AW139 maintenance contexts, technicians must also inspect and lubricate retractable landing gear components and perform work near the tail rotor and tail gearbox. While dedicated AW139 platforms exist, this flight line stand is engineered to provide quick, versatile access across multiple aircraft points—supporting efficient turnarounds without compromising safety.
Reducing Roof and Tail Rotor Work Hazards
A known hazard in AW139 servicing is the helicopter roof area, which is approximately 3 meters high, curved, and can be slippery—often encouraging unsafe climbing onto the aircraft. The AW139 Flight Line Telescopic Stand reduces reliance on stepping onto the airframe by providing safe reach to elevated areas, improving proximity for visual checks and servicing. It also supports safer working positions when conducting inspections near the high tail rotor, minimizing risk while working around this critical component.
A Safer, Faster Access Solution for AW139 Line Maintenance
The AW139 Flight Line Telescopic Standcombines telescoping, foamed guardrails and secure locking systems with the mobility required for flight line operations. Designed to prevent conflicts with rotor blades while providing stable, damage-free access, it is an indispensable tool for inspections and maintenance across the AW139’s high-access areas—from engines and hydraulics to main rotor systems and tail structure—maximizing operational safety and efficiency.
