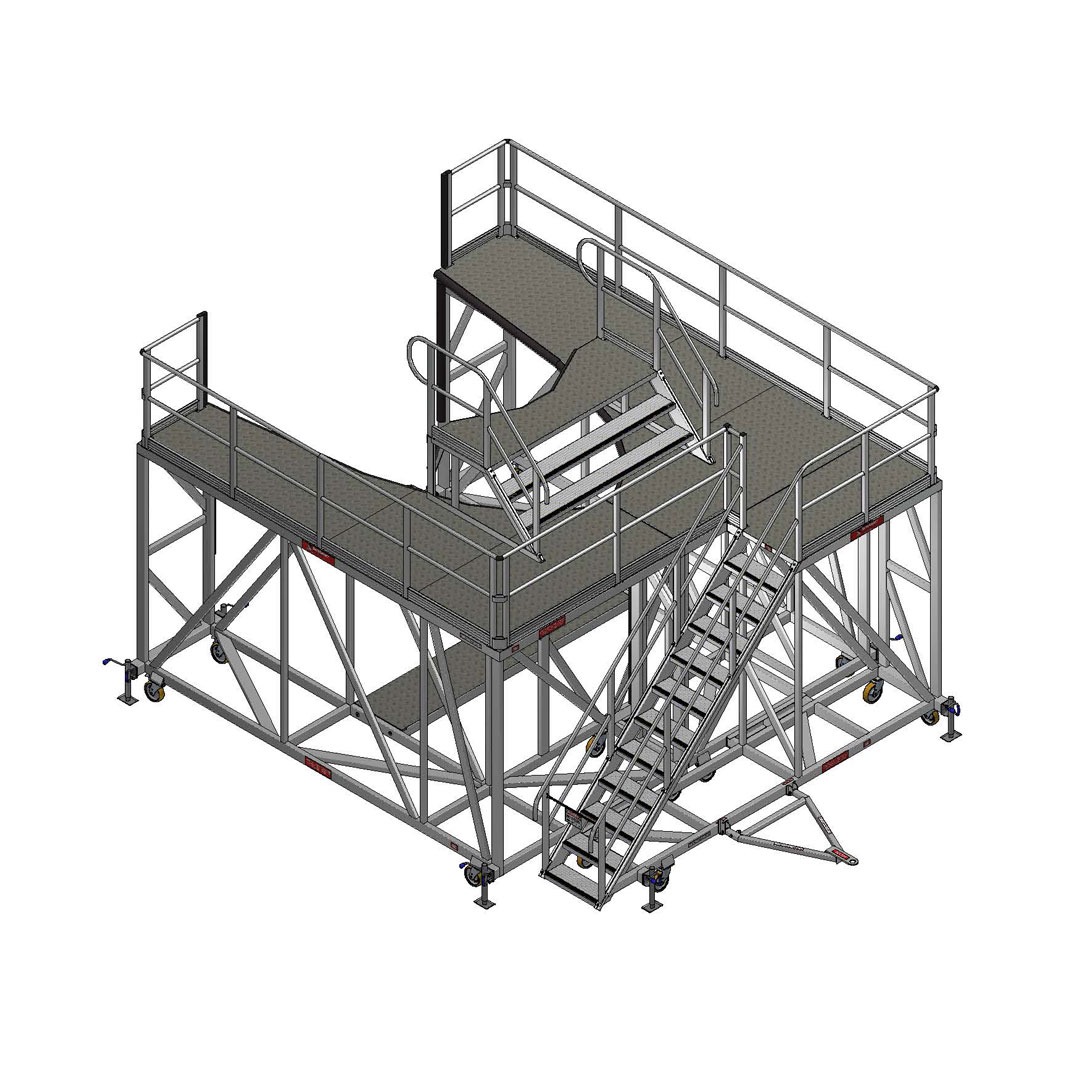

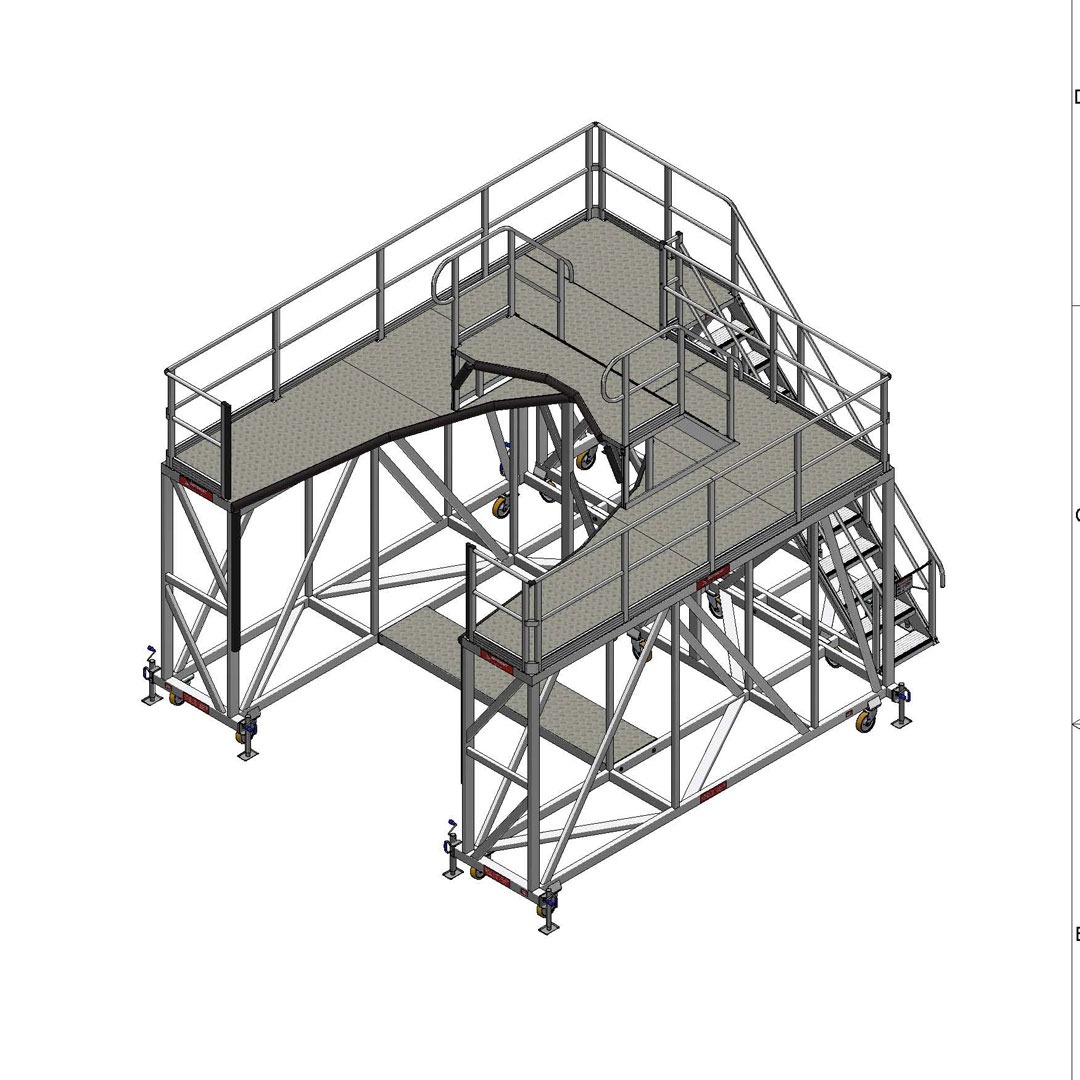

E190-E2 Nose Dock – Stepped Version

• Platform dimensions: 4.55mL x 4.65mW x 2.7-3.375mH.

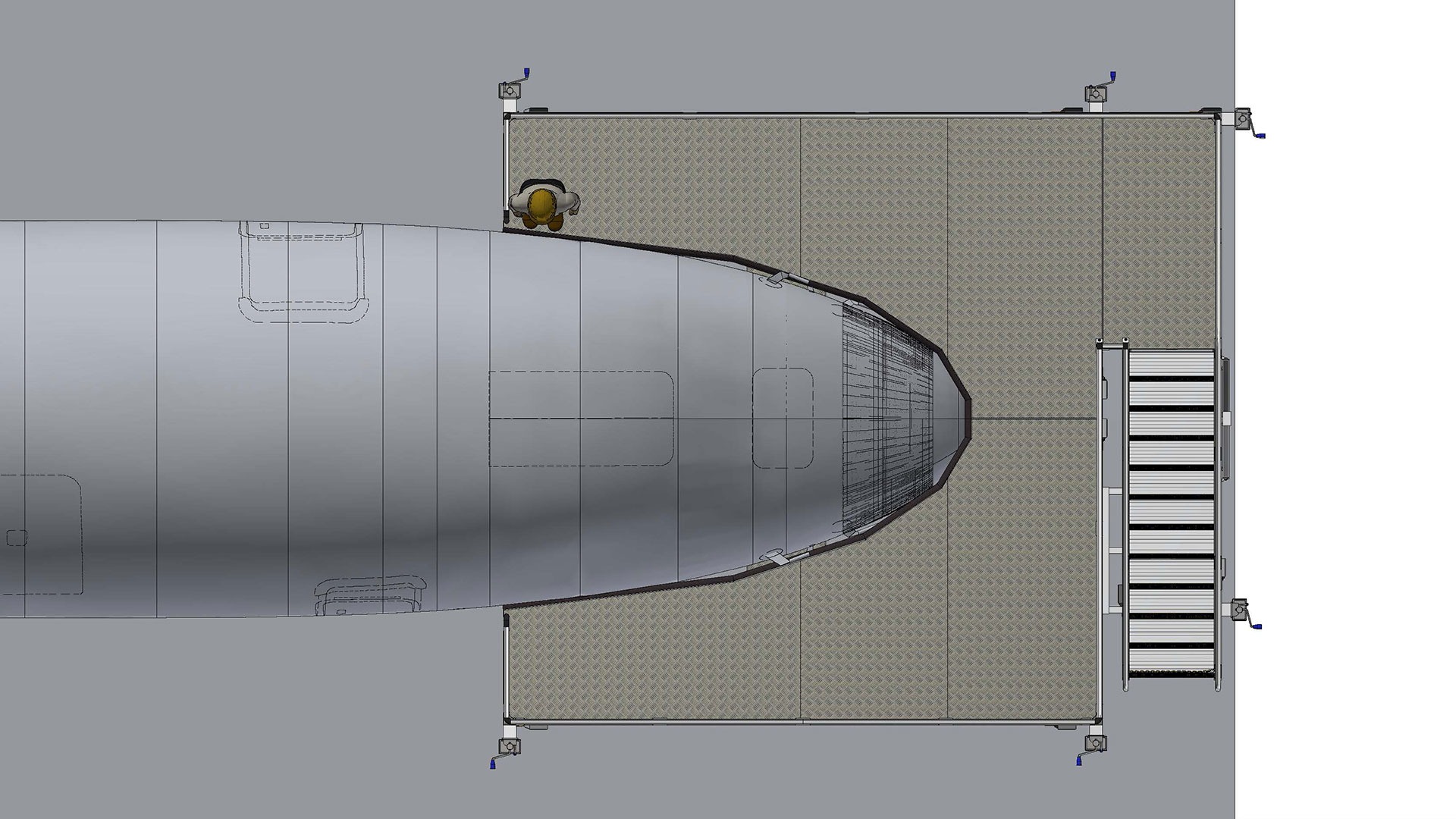

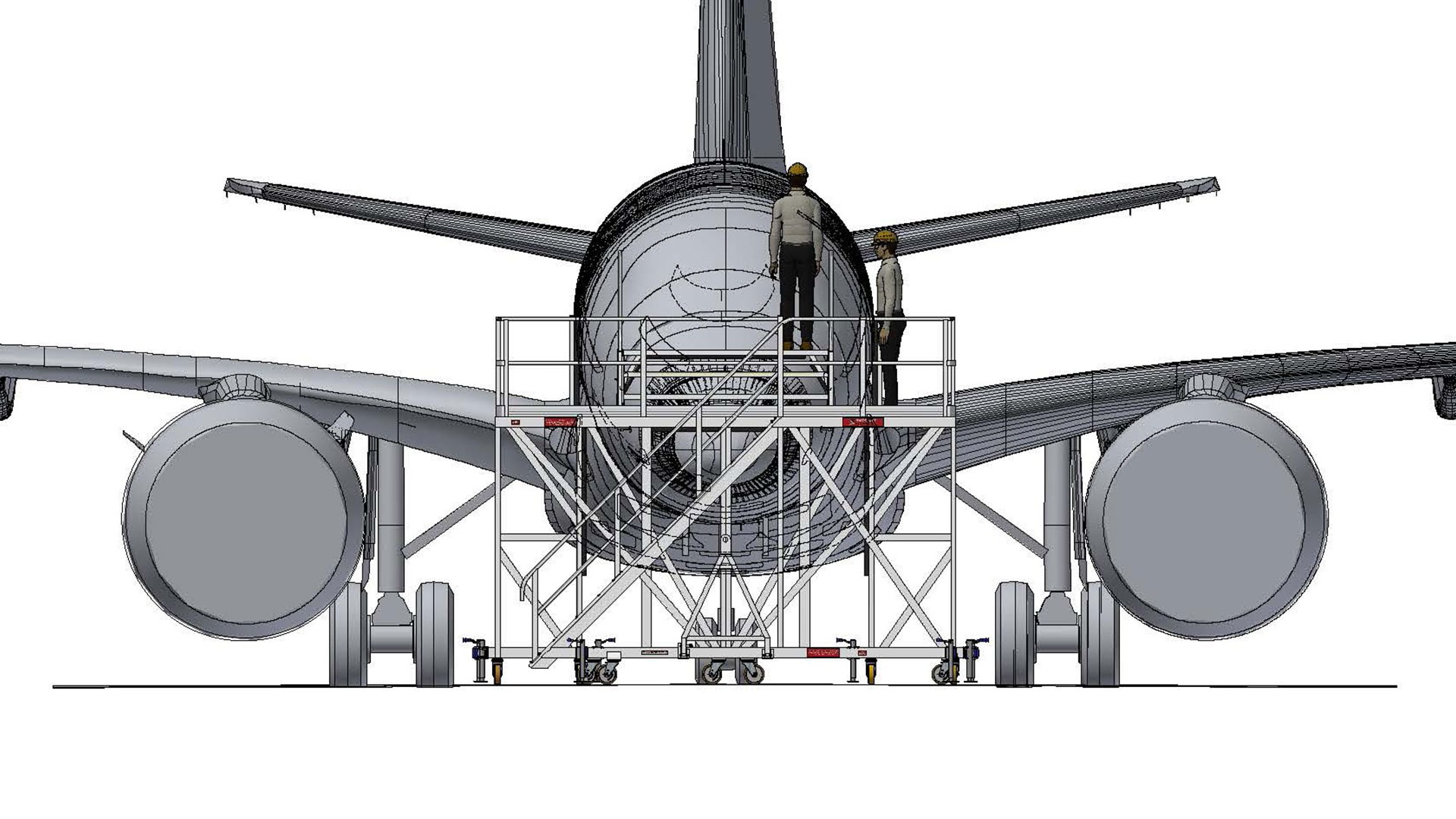

• The leading edge of the platform is contoured to suit the aircraft fuselage and encapsulates the nose to allow access to the whole windscreen.

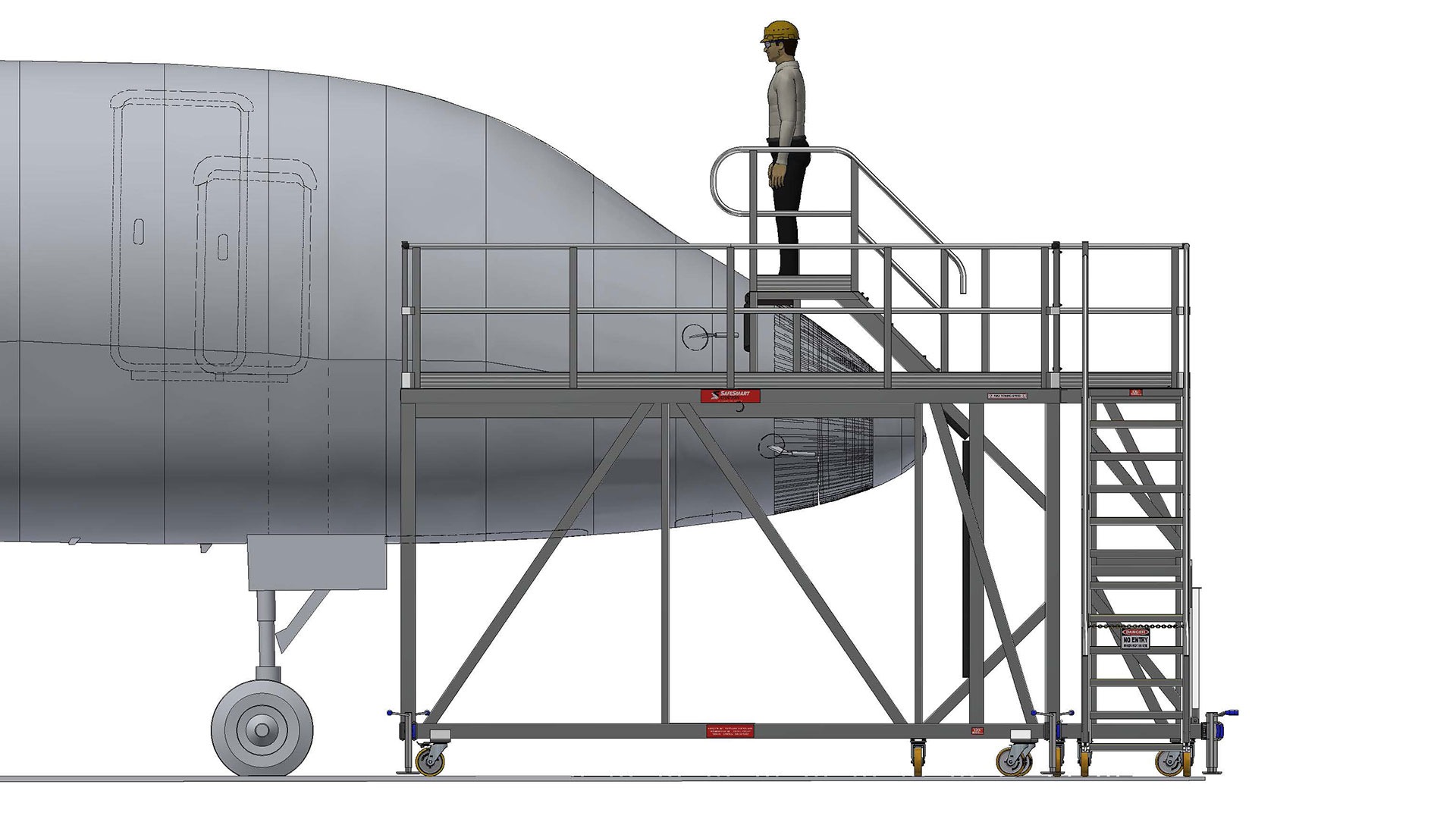

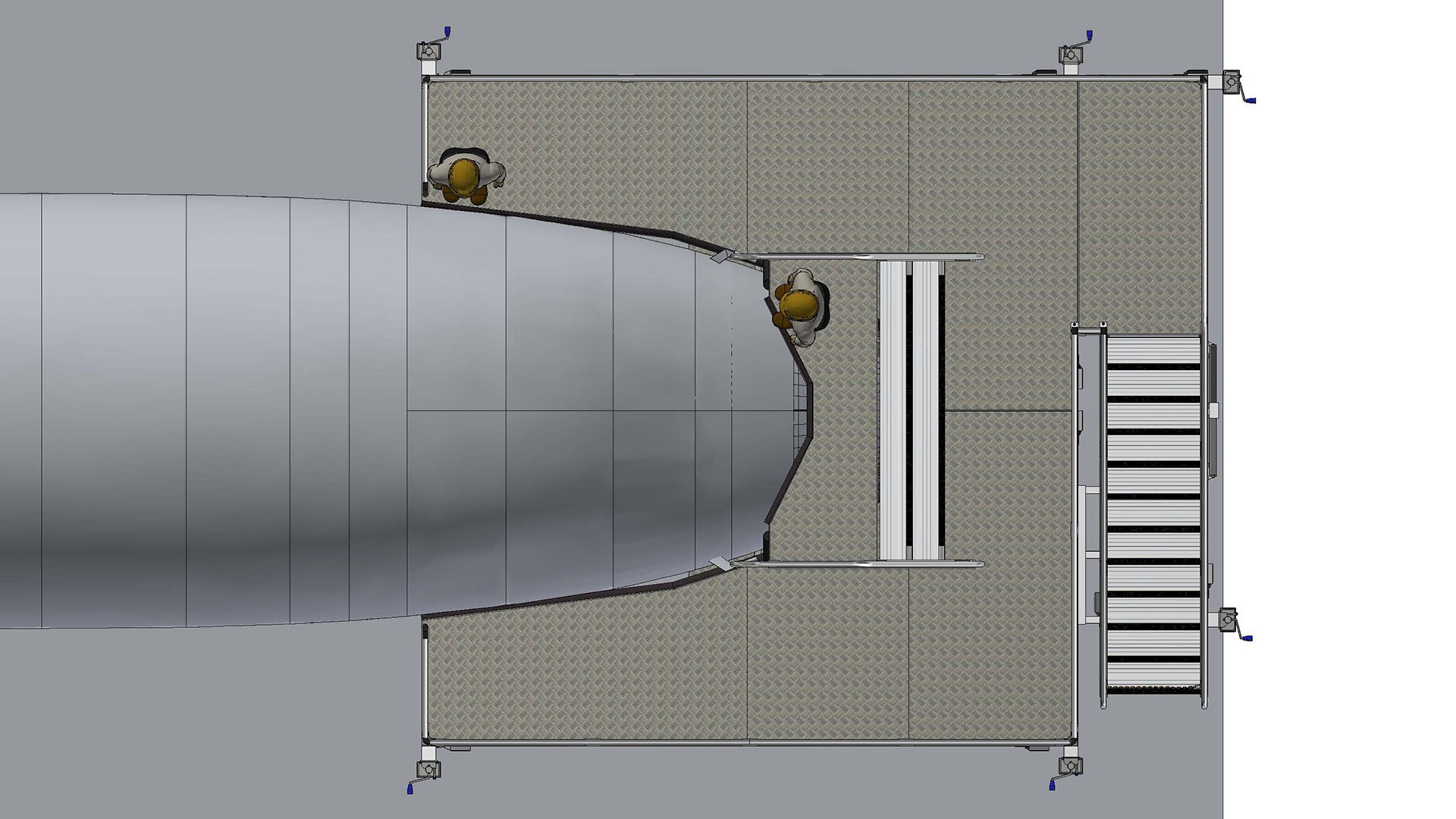

• A removable step-up platform gives access over the nose to the front of the windscreen.
• Stair/landing access, 45 degree angle of slope, griptread extrusion steps with anti-skid nosings. Handrail and midrail each side.
• Guardrail, midrail and toeboard frames to all sides of the platform & step-up section except the leading edge. Telescopic guardrails included on each side of the nose.
• Mobile on heavy duty 200mm swivel, braked, directional locking and towable castors with height adjustable machine jacks.
• Foam rubber buffering on all fuselage contact areas.
• Treadplate decking material.
• SWL 1000kg.
• Safety and instruction labelling provided.
• The dock is supplied in sections that will bolt together on site to facilitate freight.
• AS1657:2018

Options included:

1. Towing Kit – Folding
2. ‘No Entry’ chain and sign
