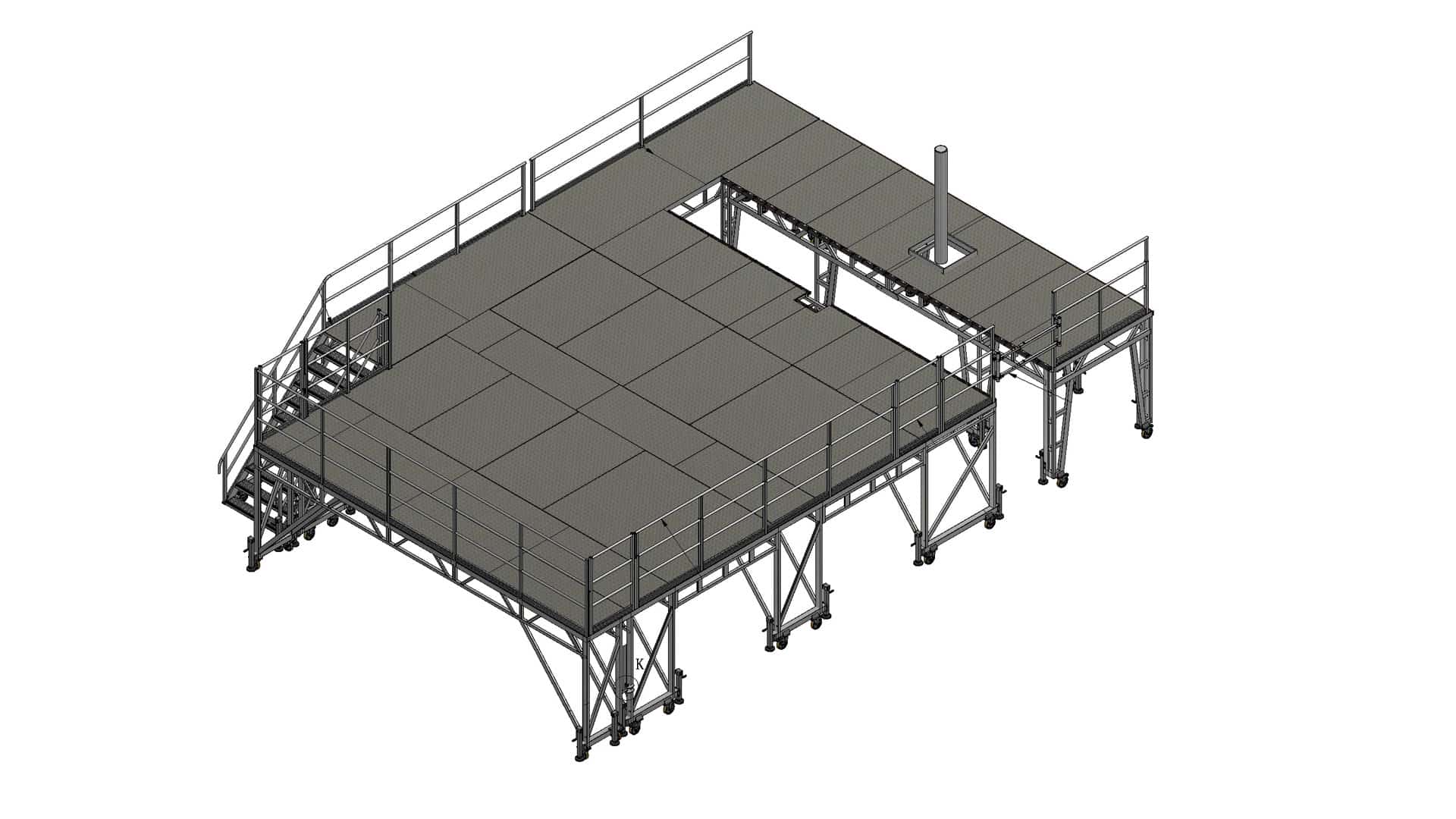

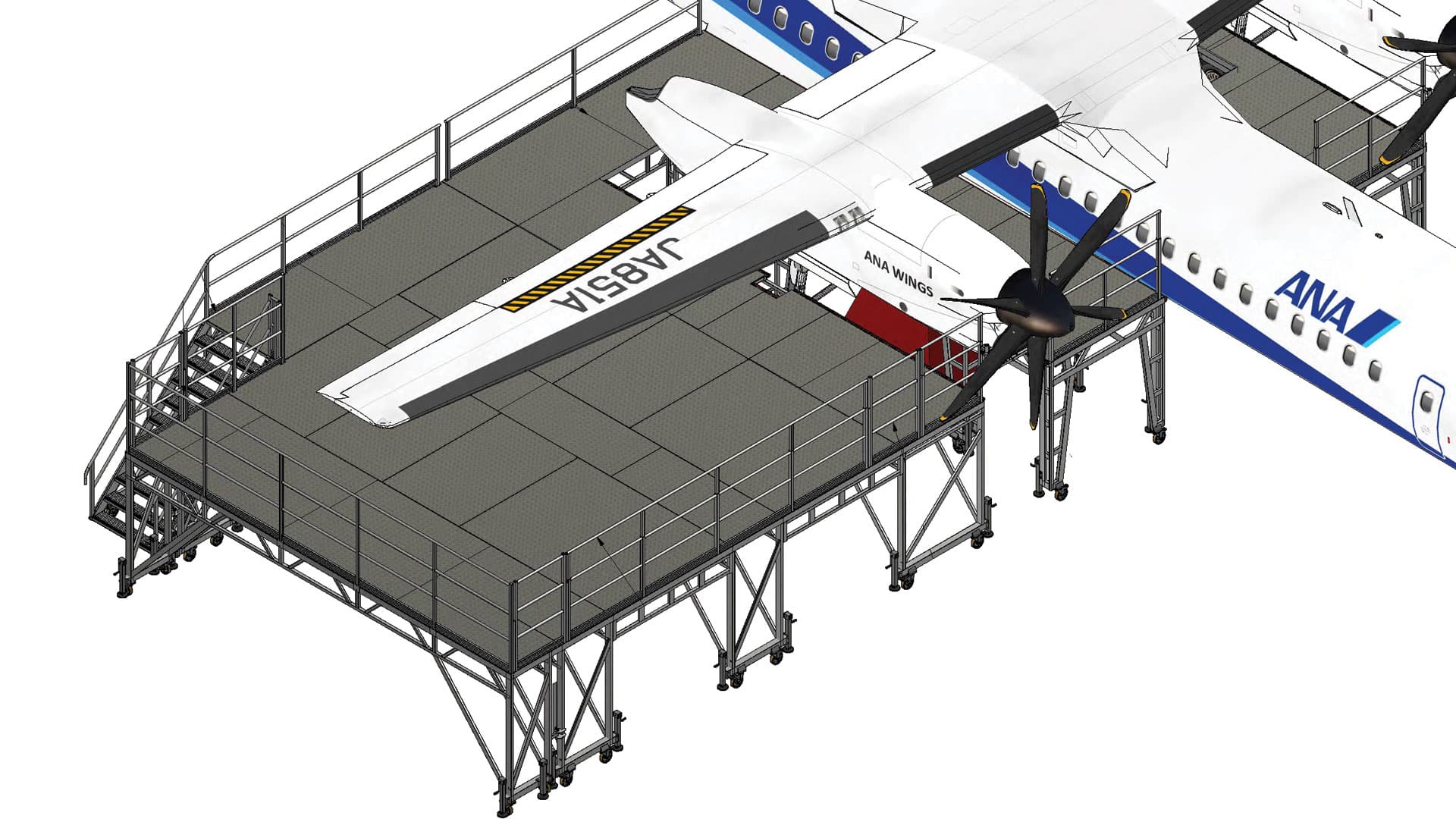

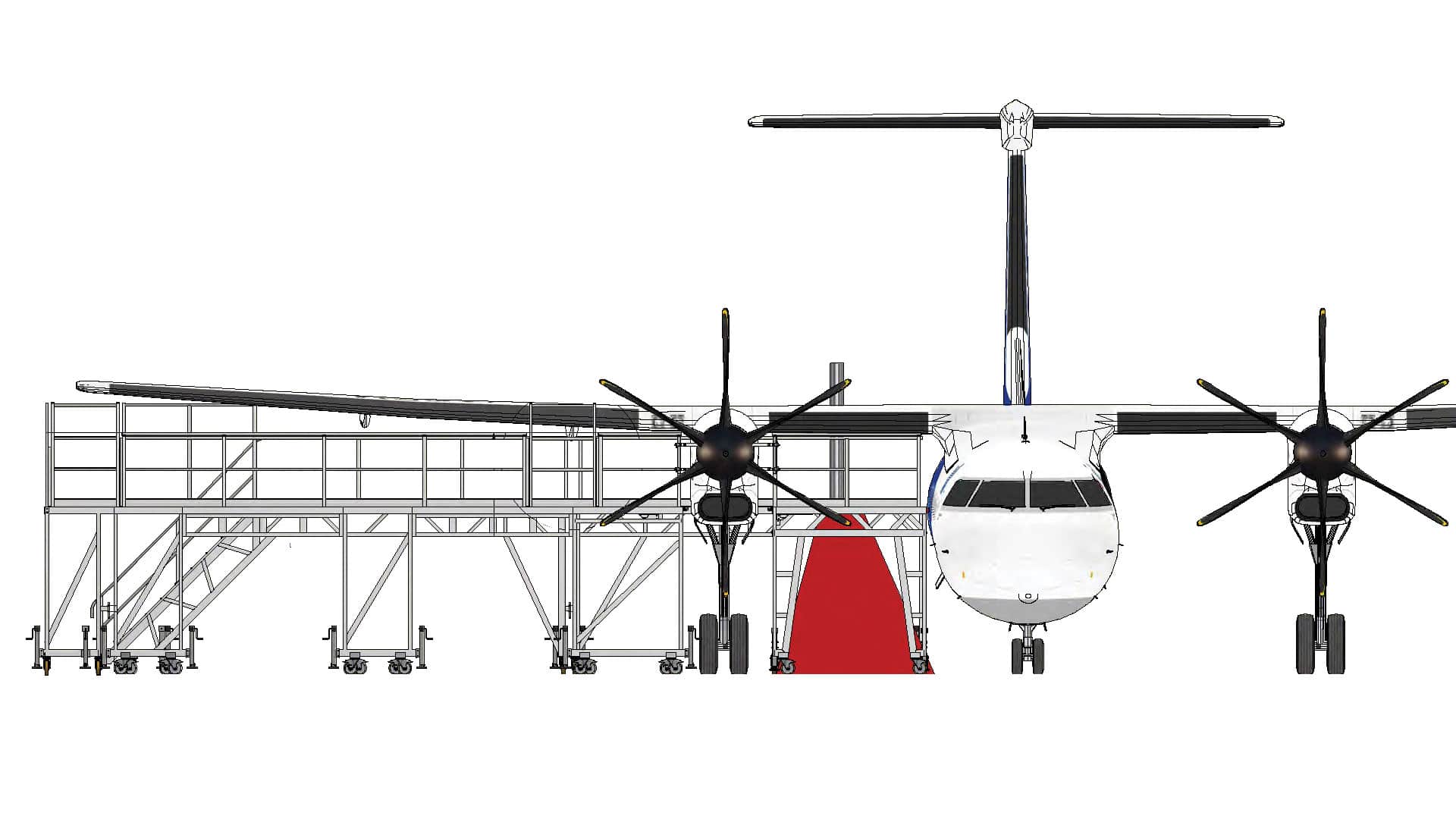

Bombardier Q300/Q400 Large Version Underwing Dock
This foundational access platfor, Q300/Q400 Underwing Large Dock, is designed for comprehensive maintenance of the Bombardier Q300 and Q400 regional airliners. The Large Version Underwing Dock is an indispensable asset for supporting safety and operational readiness across these high-wing, T-tail turboprops, delivering exceptional access to critical areas beneath and around the wing and engine nacelles for deeper-level maintenance operations that standard stands cannot accommodate.
The design addresses the specific access challenges presented by the Q300/Q400, including the Q400’s higher stance and the placement of key maintenance points. The platform structure is engineered to envelop the underwing area, creating a secure and stable work environment for technicians performing detailed inspections, servicing, and repairs.
Telescopic Guardrails for Full-Envelope Safety
Integrated telescopic guardrails provide adaptable protection across the working area. Adjustable up to 1.5 meters in height, the rails interface closely with the aircraft structure and allow technicians to use smaller access steps atop the platform when required. This flexibility supports varied maintenance tasks while maintaining a high level of safety across the full work envelope.
Close-In Access Around Engine and Propeller Systems
Access to complex engine and propeller systems is optimized through intelligent “close-in” features. Sliding fingers are positioned along the inside edges nearest the engine to close potential gaps between the platform and the airframe. This reduces fall hazards and helps prevent tools or components from dropping into sensitive areas—especially important when working on maintenance points such as the engine gearbox, oil system, and chip detectors. With the Q400’s 6-blade composite propellers and associated systems, secure, close-proximity access is essential.
Modular Guardrail Configuration
The deck configuration is highly adaptable, incorporating an adjustable guardrail system with bolt-on couplers for quick reconfiguration based on the task at hand. Removable sliding handrail panels, sliding handrails, and bolted handrails can be interchanged or removed entirely to support lifting larger components, accommodating specialized tooling, or improving access during complex procedures.

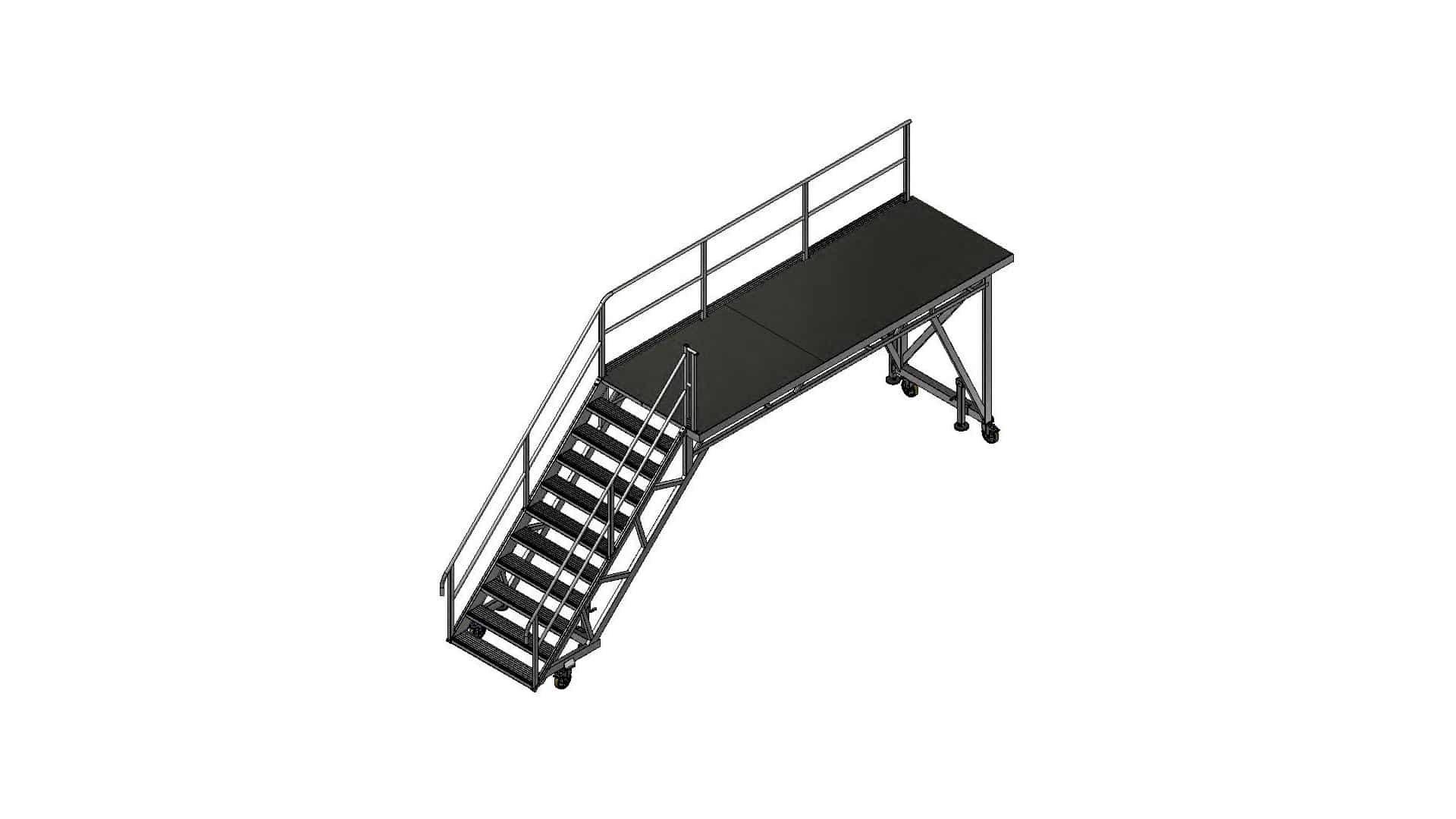

Safe Stair Access and Efficient Workflows
Entry and egress are managed via a dedicated stair access system with a substantial landing area, supporting safe vertical movement for personnel and safer transfer of tools and parts. Once on the platform, maintainers gain direct access to the engine access platform section, enabling efficient work around high-cycle landing gear components and the main gear housed within the nacelles.
Designed for Deeper-Level Wing and Engine Maintenance
This dock is purpose-built to provide access to the complete wing area and the engine for deeper-level maintenance operations. It supports vital checks and servicing across the high-wing structure, including de-ice boots, fuel systems, hydraulics, and (on the Q400) APU-related access. It also provides the stable working height required for areas such as the top of the engine nacelle where prop controls are located, as well as adjacent elevated maintenance zones.
Open Underframe for Staging and Storage
A major operational advantage is the completely open underframe, intentionally designed to allow convenient staging and storage of components, tools, and equipment directly beneath the work area. This keeps the maintenance environment organized and efficient, helping reduce downtime and improve turnaround performance.
A Full-Scale Maintenance Environment for the Q300/Q400 Fleet
More than a stand, the Large Version Underwing Dock is a complete maintenance environment tailored to the operational demands of the Q300/Q400 fleet. By combining secure access, modular safety systems, close-in edge protection, and efficient workspace design, it supports everything from routine checks to complex system overhauls—helping maintain the integrity, safety, and readiness of these twin-turboprop regional airliners.
Check out the smaller version of this platform, the Bombardier Q300/Q400 Underwing Dock – Medium Version.
