Curved Engine Access Ladder for Boeing B787 Dreamliner
This specialized Boeing B787 Curved Engine Access Ladder is expertly engineered, giving aviation technicians safe, efficient, and precise access to the critical maintenance areas of the B787 engine cowls. Developed for the unique aerodynamic curvature of the Boeing 787 engine, this platform is an indispensable tool for routine inspections, servicing, and repair work necessary to maintain aircraft airworthiness.
Its design focuses on minimizing potential damage to the aircraft while maximizing worker safety and operational speed during critical turnarounds. This focus on People Safety First is foundational to the design.
Optimizing Maintenance with the B787 Curved Engine Access Ladder

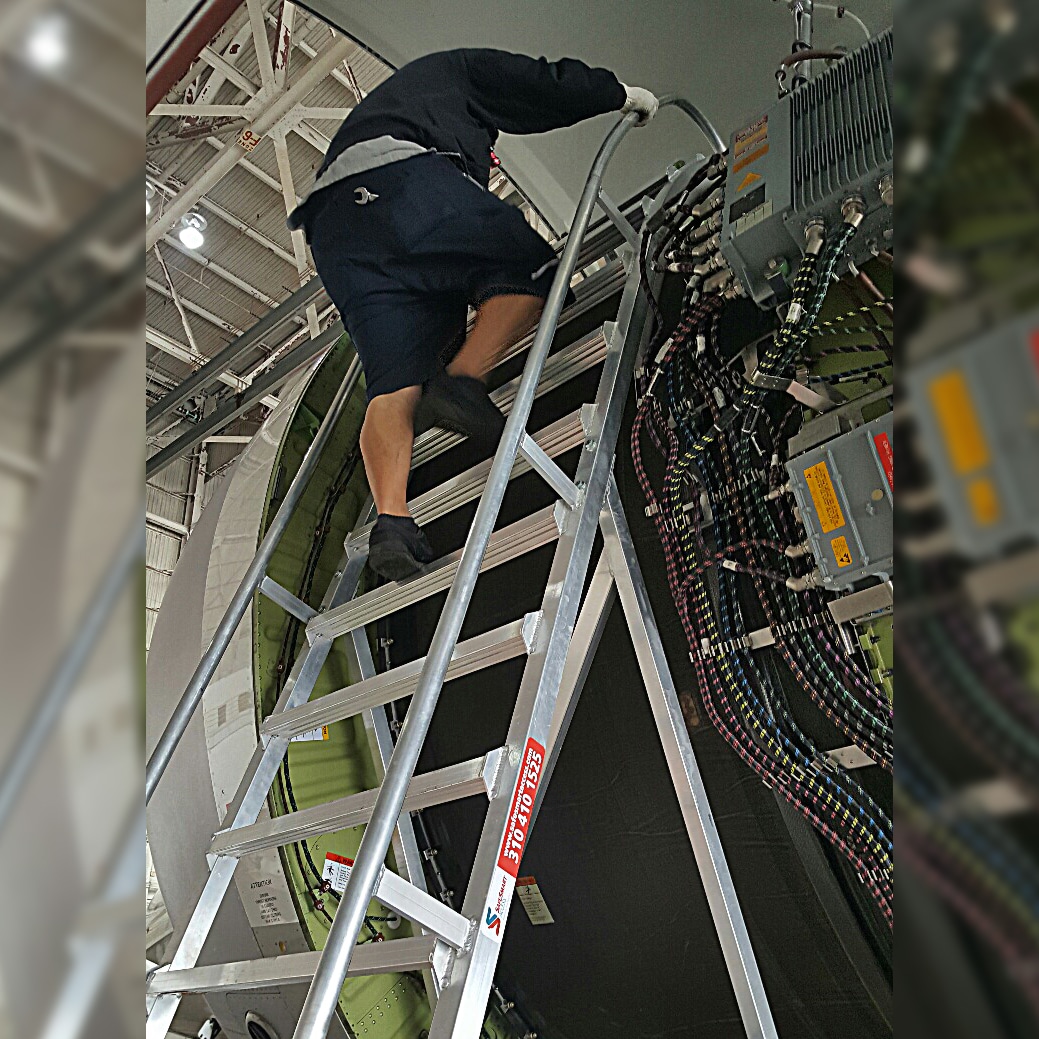

The primary function of this B787 Curved Engine Access Ladder is to bridge the height and reach gap between the hangar floor and the engine nacelle. It allows engineers to reach engine components, fan cases, and surrounding structure located beneath the cowl.
Accessing these areas is mandatory for checks such as A-checks and other scheduled maintenance procedures. These procedures involve examining the engine’s exterior, checking fluid levels, inspecting actuator systems, and manipulating the power door opening system mechanisms used to open the fan cowls.
Without a perfectly contoured access platform, technicians risk instability or needing to lean dangerously. This could lead to falls or contact damage to the sensitive composite structures of the engine nacelle.
High-Tensile Aluminum Construction
Crafted from high tensile aluminum, the entire structure embodies a perfect balance of strength and portability. The choice of material ensures the ladder is lightweight enough for easy repositioning by maintenance staff, yet sturdy enough to withstand the demanding environment of a maintenance hangar and the loads imposed by technicians and their tools.
Furthermore, the aluminum construction offers superior weather resistance, making the platform equally reliable for maintenance operations conducted outdoors on the apron.
Its durable nature ensures a long service life, resisting corrosion and structural fatigue inherent in frequent use. This is a practical, efficient solution.
Enhanced Stability and Aircraft Protection
Stability and safety are paramount in aircraft maintenance environments. The platform features an exceptionally wide footprint, ensuring extreme stability throughout the maintenance task. The design mitigates tipping and movement, providing a solid, confidence-inspiring work base for personnel working at height.
Integrated Safety Features
Crucially, the B787 Curved Engine Access Ladder incorporates advanced protective elements, including Fender Foam that lines the areas designed to interface with the aircraft structure. This foam padding serves as a crucial buffer, preventing scratches, dents, or stress concentration on the B787’s delicate surface during positioning and use.
The incorporation of 125mm rubber wheels aids in smooth, controlled maneuvering and placement. The ladder can be precisely located against the engine cowl without jarring impact.
Precision Curved Geometry

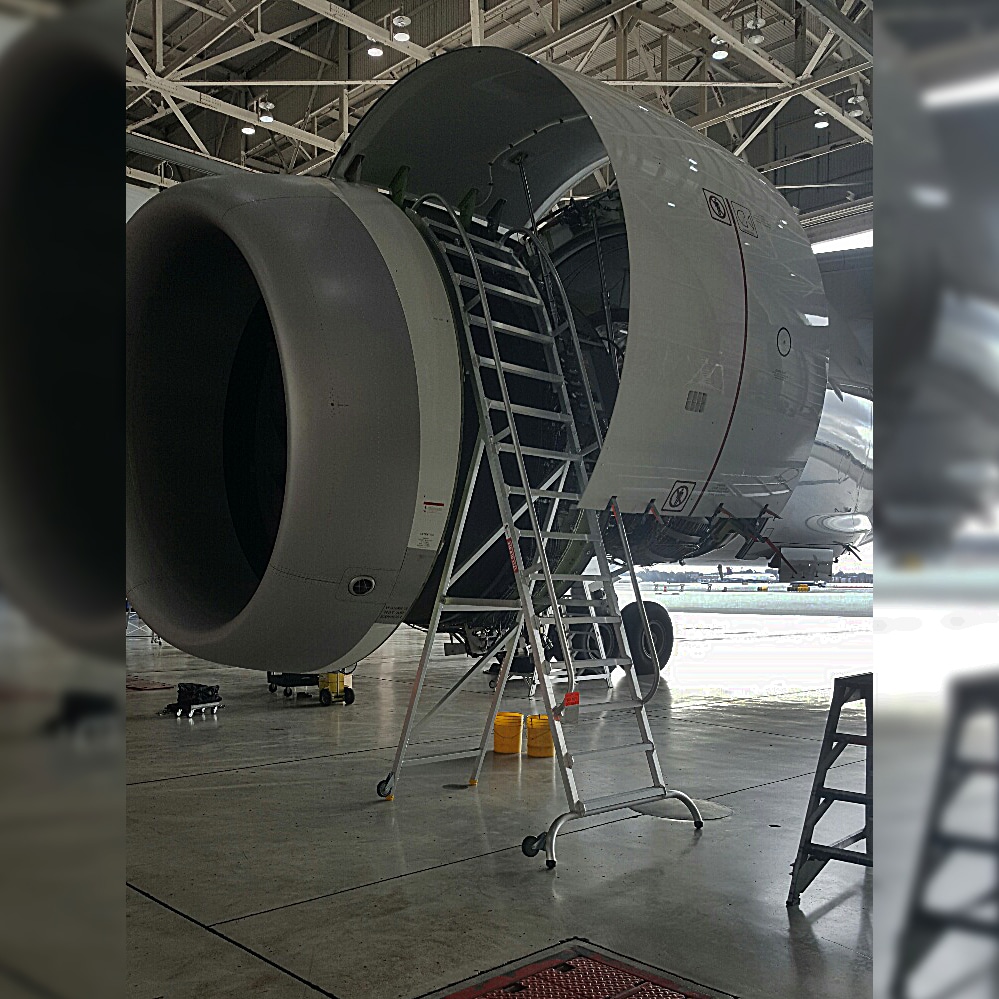

The curved geometry is the defining feature, differentiating the B787 Curved Engine Access Ladder from standard, multi-purpose platforms. It mirrors the exact contour of the Boeing 787 engine beneath the cowl, ensuring a snug, gap-free fit. This perfect fit around the engine not only enhances stability but also minimizes the trip hazard potential. It maximizes the effective working surface area available to the technician right where they need it—at the point of maintenance.
This precision design is foundational for tasks requiring fine motor skills or concentrated inspection efforts, such as wiring checks, oil level verification, or troubleshooting sensor issues on the engine’s lower quadrant.
The ladder’s integration into the maintenance workflow is seamless. It significantly reduces the time required to set up safe access, contributing directly to faster aircraft turnaround times. While the specific model is tailored for the Boeing B787, the underlying manufacturing expertise allows for custom designs to meet the precise requirements of other aircraft engine types, ensuring specialized, secure access solutions are available across an entire fleet.
This focus on tailored access solutions demonstrates a commitment to optimizing every aspect of aircraft servicing, ultimately supporting the reliable and continuous operation of the fleet. This purpose-built access solution elevates safety standards and efficiency in the complex field of engine maintenance.
For full engine access, see the B787 Maintenance Bridging Platform.
