Dedicated B787 APU Access Stand for Tail Cone Access
Elevate your aircraft maintenance with the dedicated B787 APU Access Platform. This highly specialized system is engineered to provide unparalleled safety, stability, and access efficiency for crucial work on the Boeing 787 Dreamliner’s Auxiliary Power Unit (APU).
This sturdy platform is specifically designed for the unique challenges of APU maintenance and replacement, which occurs in the tightly confined and elevated area of the aircraft’s tail cone. The platform ensures full, comfortable access to the APU compartment, located on the upper right side of the tail cone, aft of the APU firewall.
The APU itself, the quiet and efficient APS5000, is critical for supplying electrical power across the aircraft’s operating envelope. Given the importance of this component, technicians require a safe, non-slip workspace that minimizes fatigue and risk during extended maintenance operations, such as detailed inspections, component servicing, or the complete replacement or removal of the APU unit. Safety is foundational to this design.
Maximized Safety and Stability Features

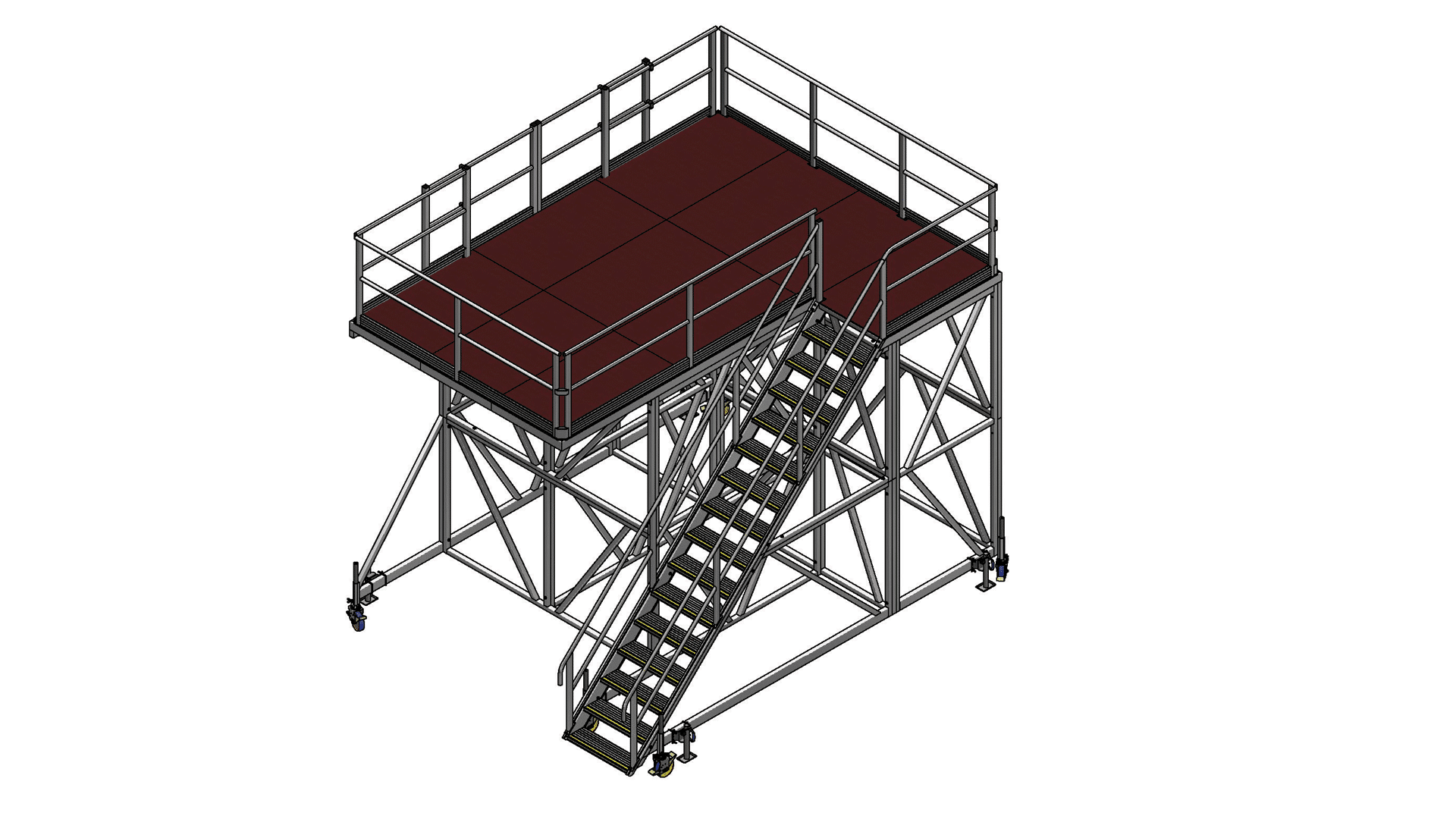

Central to this system is the exceptionally large platform deck. This expansive working surface provides ample space for multiple technicians, tools, and replacement components required during APU maintenance procedures. Its dimensions and structural integrity are built to support significant working loads, offering peace of mind and allowing technicians to maneuver freely and efficiently, whether they are examining the APU air inlet door, accessing wiring harnesses, or preparing the unit for extraction.
Integrated Access and Non-Slip Design
Access to the platform is facilitated by an integrated 45-degree access stair system. This shallower angle, compared to traditional ladders, significantly improves safety and ease of ascent, especially when technicians are carrying heavy parts or toolkits. Each step features a Griptread extrusion, enhanced with anti-skid fiberglass nosing, ensuring a secure foothold in all hangar environments. The structural components are constructed from high-strength materials, meeting stringent safety compliance standards for maintenance access systems. This design is built for performance.
Portability and Precise Alignment for B787 APU Access Stand
Adaptability and portability are key features of this design. The unit is mounted on heavy-duty, swivel-braked castors, allowing for smooth, precise positioning around the B787 aircraft. Once in position, stability is locked in place using height-adjustable machine jacks. These jacks ensure the platform remains absolutely rigid and level, eliminating movement or flexing even under dynamic load, which is critical when performing sensitive tasks in the APU bay.
The height adjustment capability ensures the deck can be precisely aligned with the required working height range necessary to accommodate the B787’s specific tail section contours and maintenance requirements. This approach proves efficient.
Streamlining APU Replacement Logistics
Logistical efficiency is further enhanced by the integrated sliding gate mechanism. This innovative feature allows the stand to be safely positioned adjacent to the aircraft, and then opened to permit the direct loading or unloading of large, heavy APU replacement units and other necessary components via a forklift. This design detail streamlines the workflow for APU replacement, minimizing the time the aircraft spends out of service. For additional work around the fuselage, consider utilizing the B787 Maintenance Bridging Platform.
The deck itself incorporates sturdy and durable plywood decking. The design is intentionally compact for a platform of its size, balancing a maximized working area with a footprint that conserves precious hangar space.
This access platform is an indispensable asset for any facility performing heavy maintenance on the Boeing 787 fleet, providing the necessary sturdy, safe, and custom-designed solution for all APU servicing needs. It is specifically engineered to interface seamlessly with the B787 airframe, supporting detailed and efficient service delivery for a critical aircraft system. We solve real problems in smart ways.
