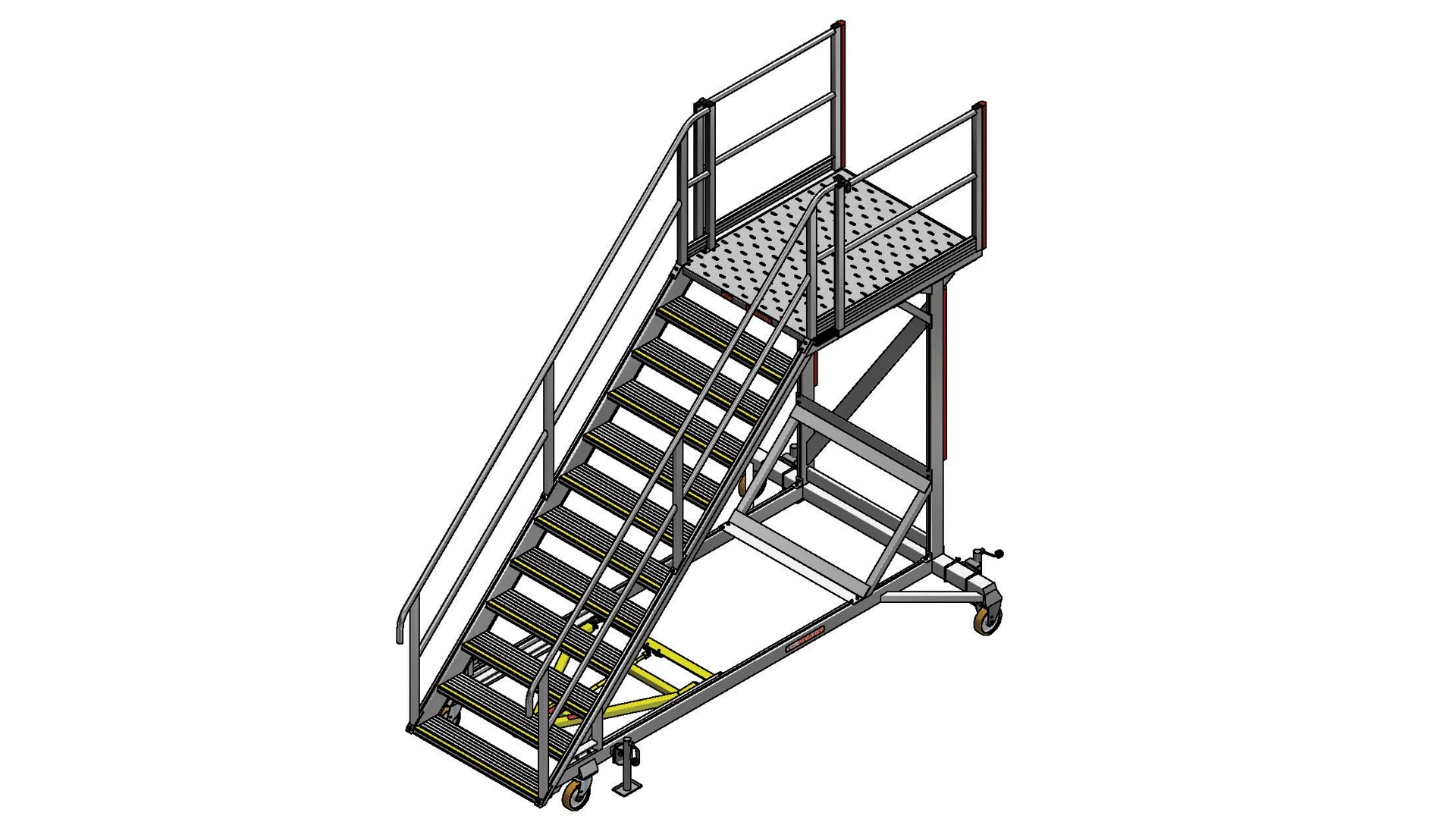

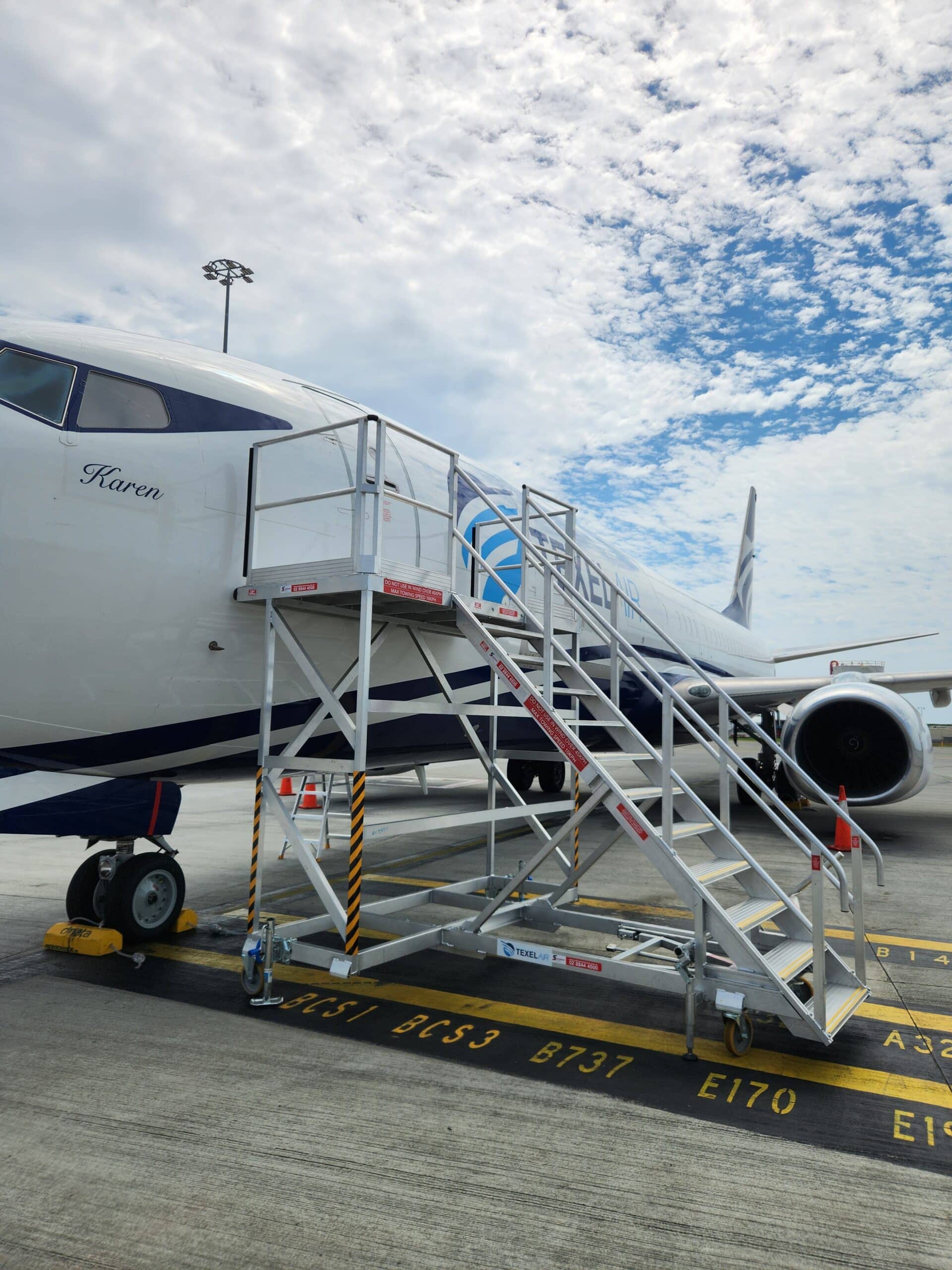

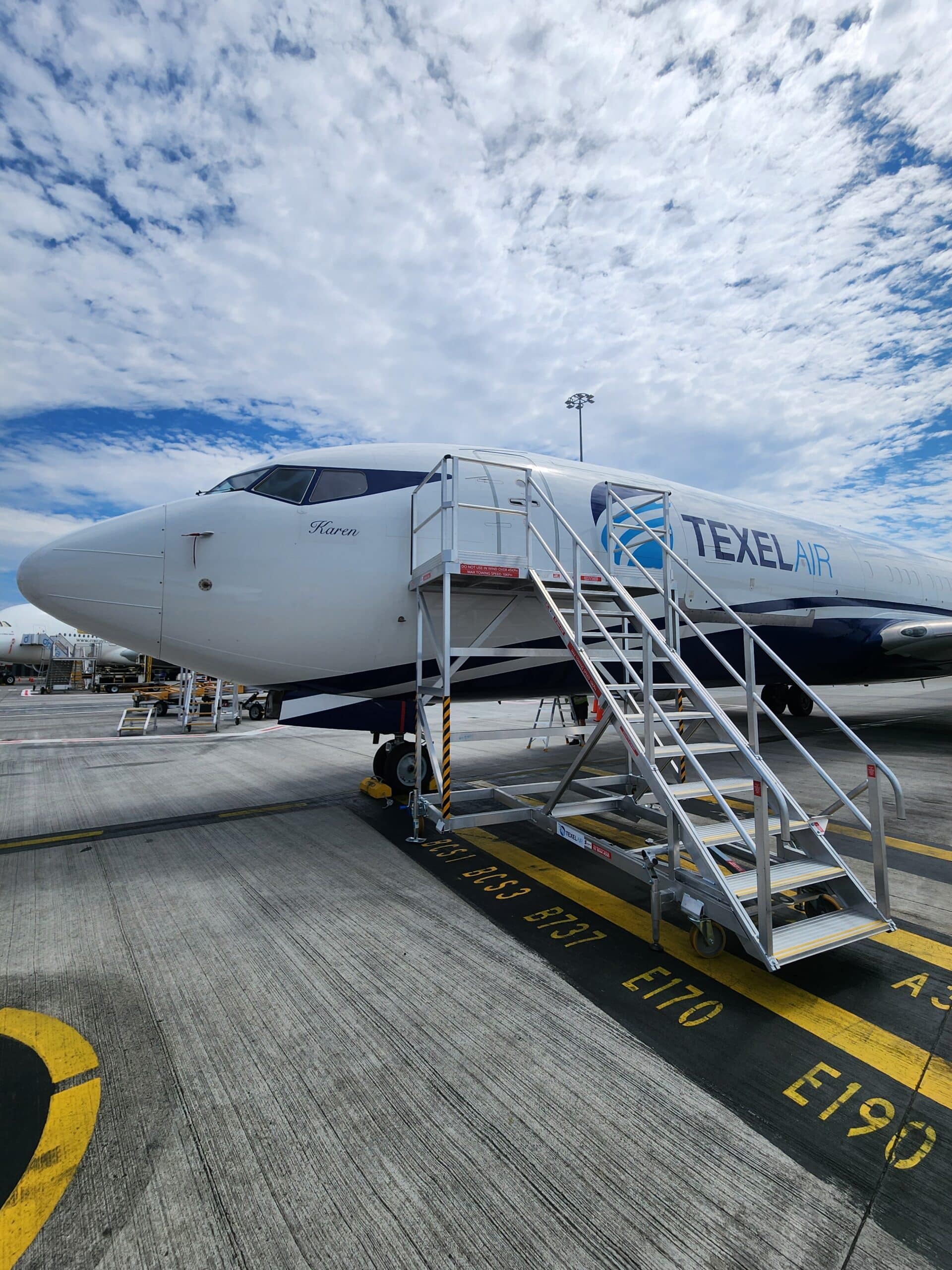

The B737 Main Entry Door Stairs – Narrow Version
The Boeing B737 Main Entry Door Access Platform – Narrow Version is a leading, specialized structure. It is engineered for safe, efficient access to the main entry door of the Boeing B737 series aircraft, specifically in confined operational settings. This narrow configuration is designed for environments where working space around the fuselage is restricted. It ensures maintenance and inspection tasks proceed without hindrance.
Its primary function is to provide a stable, secure, and compliant work area for personnel performing operations on or around the aircraft’s main ingress and egress point. The B737 Main Entry Door Stairs – Narrow Version directly addresses the critical need for reliable vertical access during various Maintenance, Repair, and Overhaul (MRO) procedures.
Stable, Secure, and Compliant Work Area
The main entry door area, often labeled as the 100-series zone in maintenance documentation (such as 111-114 access areas), is vital for operational safety. It requires routine inspections of the door mechanism, seals, hinges (upper and lower), and associated systems. The B737 Main Entry Door Stairs – Narrow Version platform ensures technicians have immediate, stable reach for these detailed inspections and adjustments.
Constructed for durability and maximum traction, the platform incorporates an Aluminium Perforated Plate deck. This superior design choice guarantees exceptional grip, foundational for use in all weather conditions. It minimizes slip hazards and ensures consistent safety compliance during wet or icy periods. The perforated surface also prevents the accumulation of debris or fluids, maintaining a clean working environment. Safety is always paramount.
Innovative Handrail and Door Clearance System
Innovative features of the B737 Main Entry Door Stairs – Narrow Version include the system of sliding and locking side handrails. These handrails are designed to retract and adjust, allowing full clearance for the main cabin door to be activated, opened, and inspected without obstruction from the access platform itself. This feature is crucial when checking the door’s operation, ensuring proper latch engagement, and verifying emergency exit functionality—a requirement during pre-flight checks and periodic maintenance cycles.
The inclusion of Retractable Sliding Handrails further enhances the platform’s adaptability, allowing it to conform precisely to the contours of the aircraft fuselage near the door opening.
Mobility and Rock-Solid Stability
Mobility and stability are managed through a heavy-duty undercarriage system. The platform features 200mm Heavy-duty Fixed Castors and 200mm Swivel Heavy-duty Castors, allowing for precise positioning and easy movement across the hangar floor or apron.
For repositioning over longer distances, an Extendable Towbar with automatic locking engages when pulled forward, facilitating efficient transfer between workstations. Once correctly positioned at the aircraft, stability is unparalleled. The unit is equipped with four side-winding Machine Jacks. These jacks are crucial for lifting the platform slightly off its casters and locking it securely into a static position, providing a rock-solid foundation for personnel working at height.
Critical Maintenance Tasks Supported
This level of stability is critical when performing delicate calibration tasks or applying torque during structural repairs near the door frame. The platform is indispensable for several aircraft maintenance contexts involving the B737:
- Door Operation Checks: Facilitating functional tests of the door system, including actuator checks and microswitch verification.
- Seal Inspection and Replacement: Providing optimal height access for inspecting the integrity of the door seals, preventing pressurization leaks.
- Hinge and Attachment Point Maintenance: Allowing technicians to access and lubricate or replace upper and lower door hinges and door stops and pins, which transmit pressure loads to the body structure.
- Emergency System Checks: Supporting inspections of emergency escape slides (if applicable) and associated door arming mechanisms.
- Aesthetic and Structural Maintenance: Enabling safe access for cleaning, paint touch-ups, or inspecting the exterior fuselage skin immediately surrounding the door opening.
Its narrow profile ensures it can be utilized in congested maintenance bays or flight lines. This provides a compliant, stable, and ergonomic solution for all tasks related to the Boeing B737 main entry door. The platform’s sturdy engineering supports continuous, heavy-duty use in demanding aviation environments. It is a critical asset for maintaining the operational integrity and airworthiness of the B737 fleet.
