429 Wide Series Side Access Platform

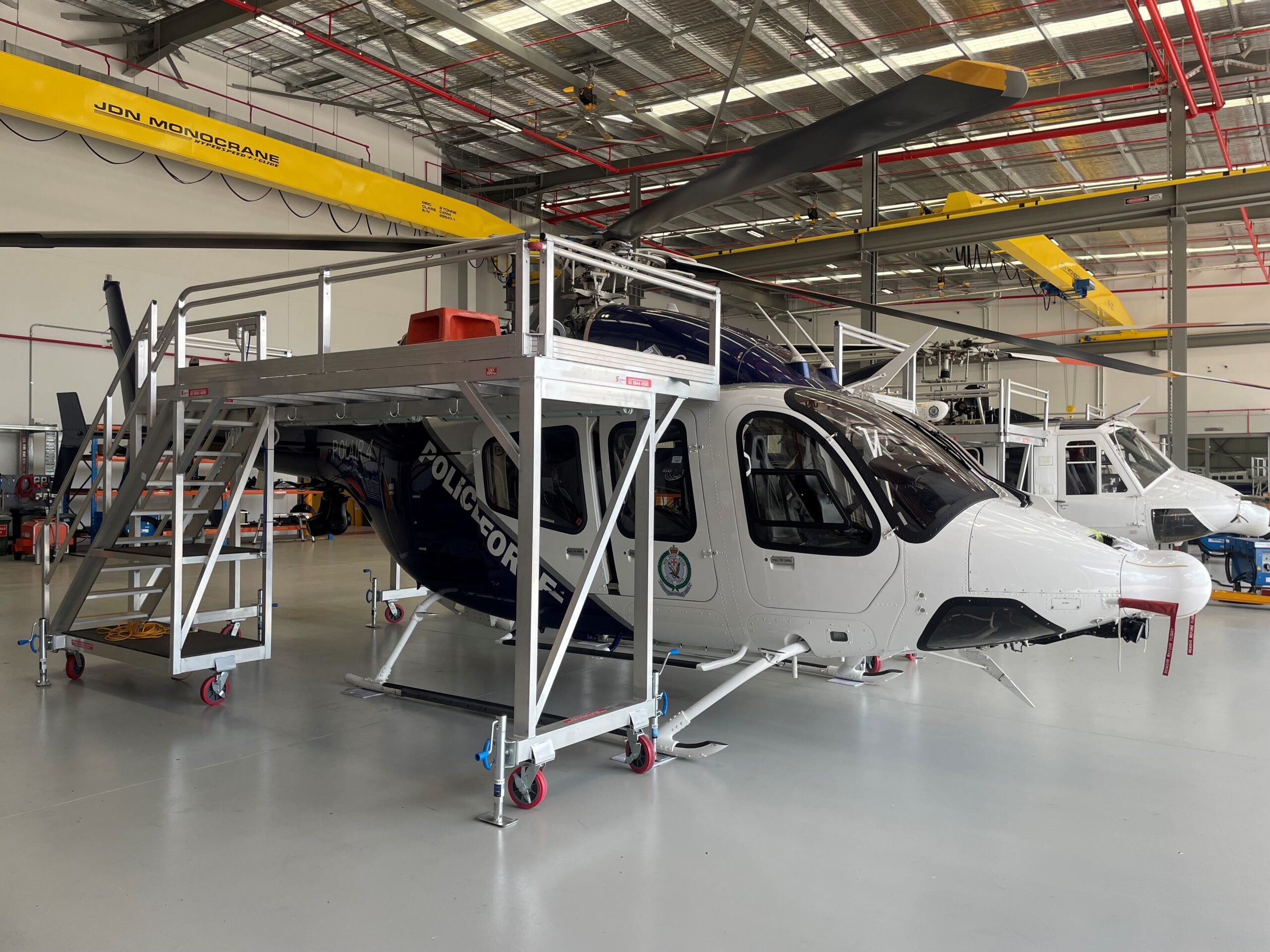

The Bell Helicopter 429 Wide Series Side Access Platform is a foundational asset for comprehensive, safe maintenance operations on the Bell 429 helicopter. This sturdy system is engineered to provide full, unimpeded access to critical aircraft areas, ensuring technicians perform inspections, repairs, and servicing with maximum efficiency and security.

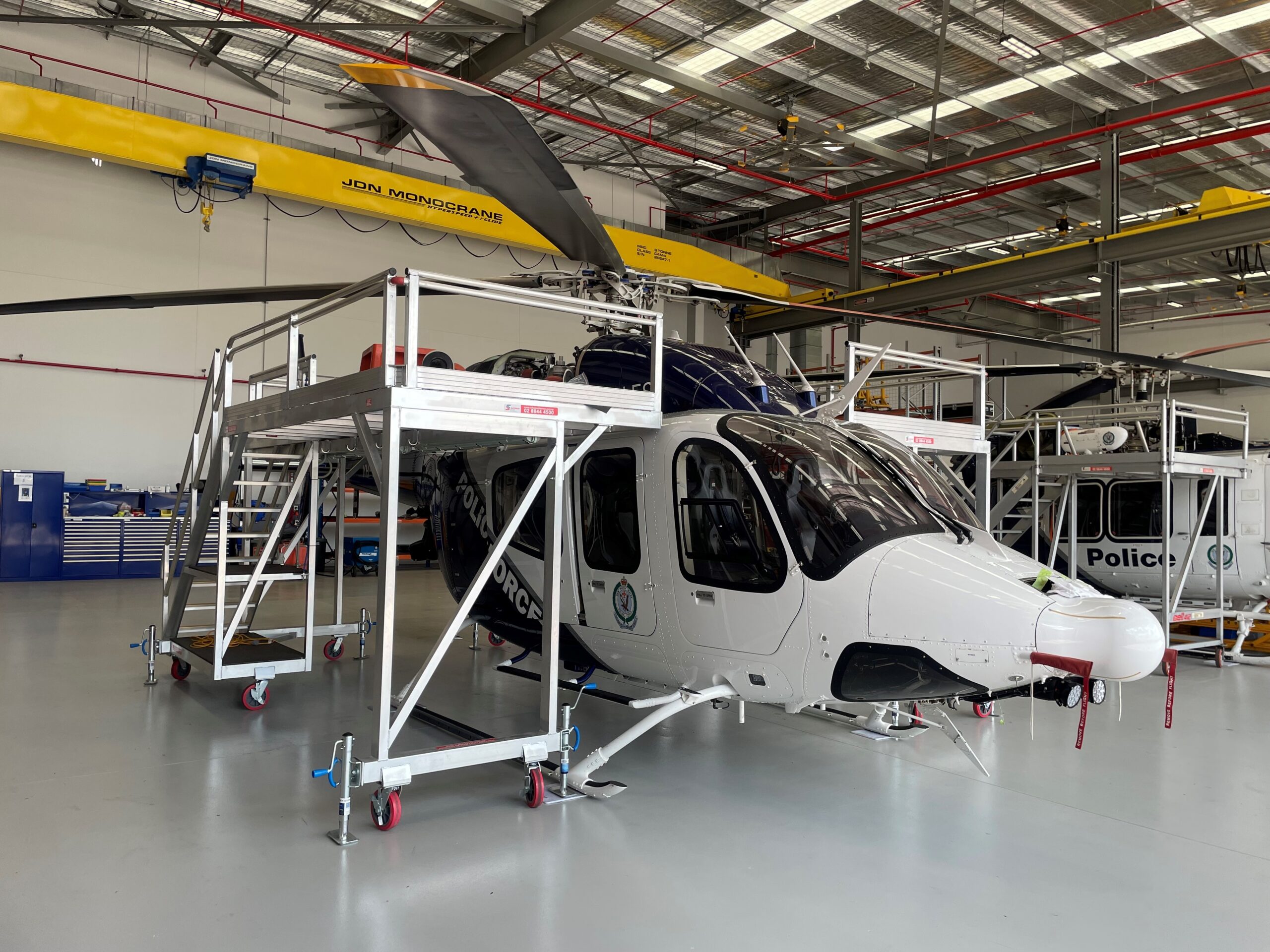

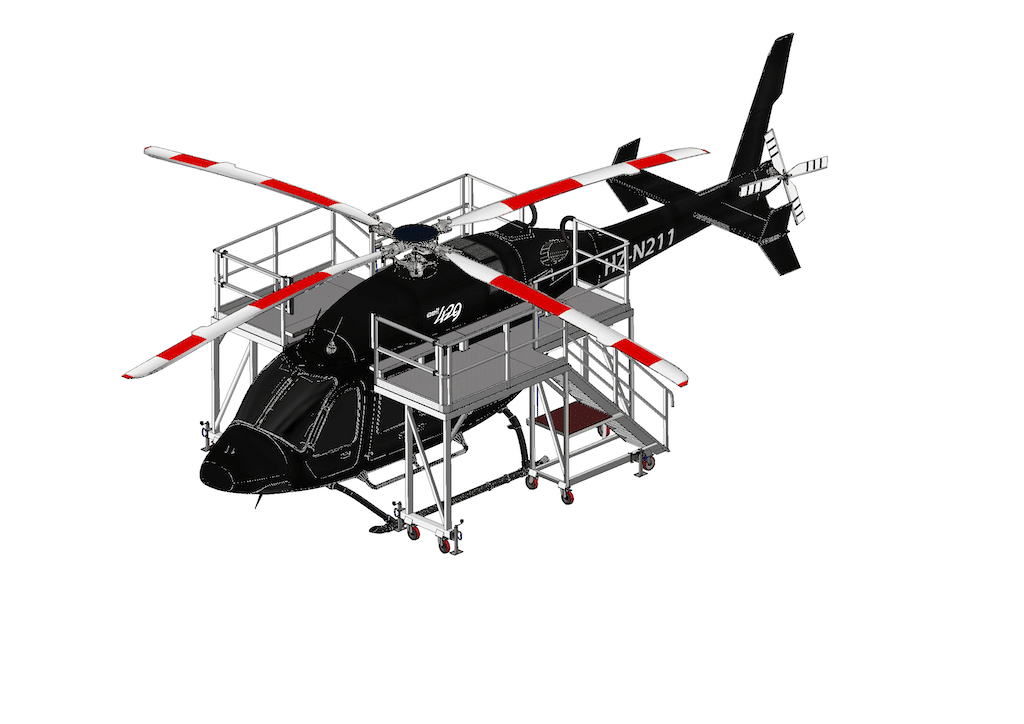

Designed specifically to contour to the lines of the Bell 429, this platform allows for complete surround access to the main rotor system and the airframe sides, facilitating everything from routine checks to complex component replacements. The standard platform length is strategically dimensioned for access right up to the tail boom, a crucial area often challenging to reach safely with generic equipment.
A separate, specialized tail rotor stand is also included, ensuring mechanics have secure, ergonomic access to the tail rotor assembly, driveshaft, and associated control mechanisms. The full surround platform design, combined with the dedicated tail rotor stand, eliminates the need for inadequate solutions, enhancing safety and reducing the risk of damage to the aircraft or sensitive components.
A Comprehensive Maintenance Solution
Cantilever Design for Dolly Clearance
A key capability of the 429 Wide Series Side Access Platform is the platform’s adaptability, especially when the Bell 429 is positioned on a dolly. The system features a 1600mm extended cantilever section, carefully calculated to reach over the dolly and position the work surface flush against the fuselage. This cantilevered frame also clears the aircraft skids, guaranteeing a close, stable working environment without interfering with the helicopter’s landing gear.
Safety-First Decking and Access

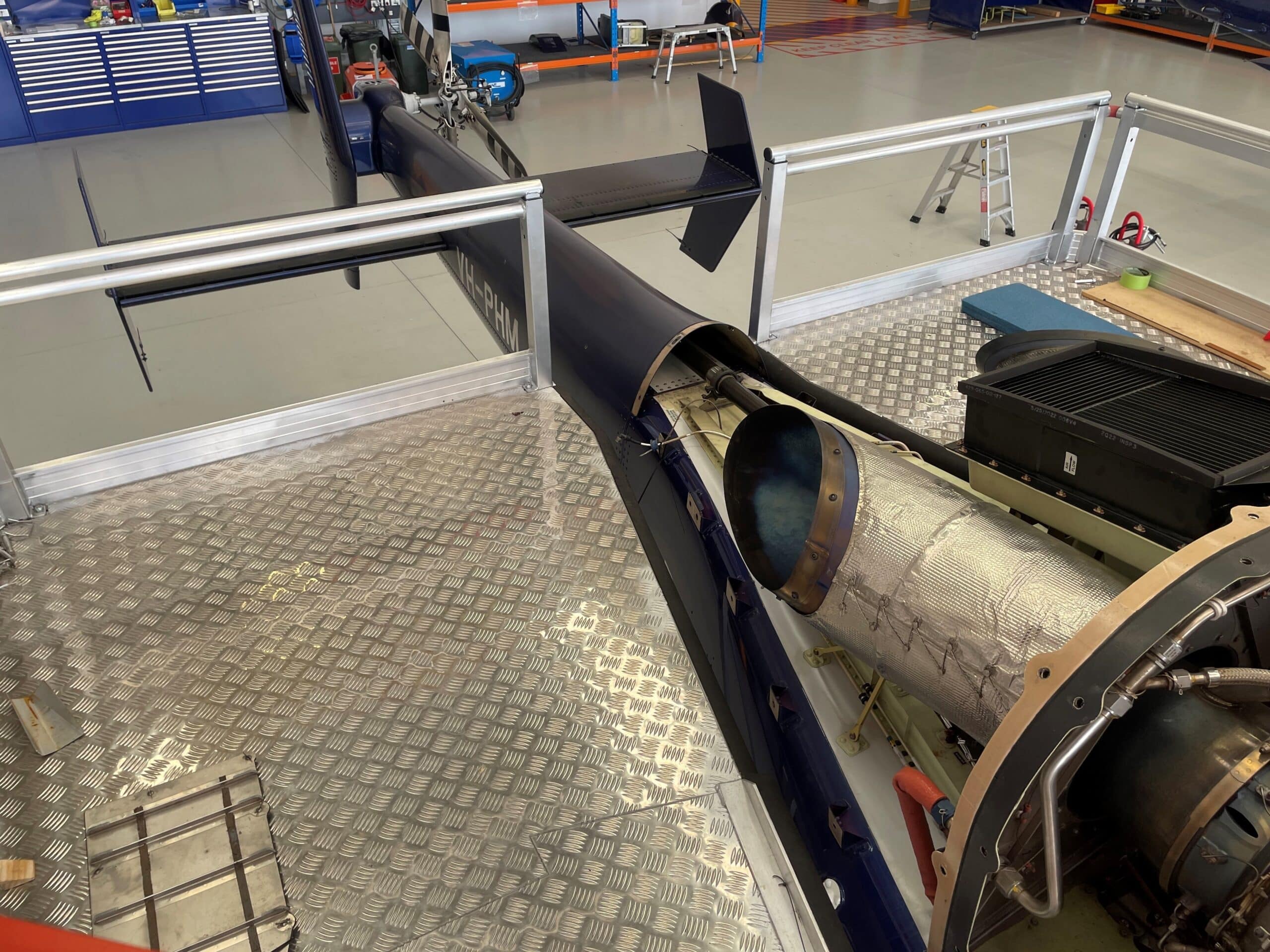

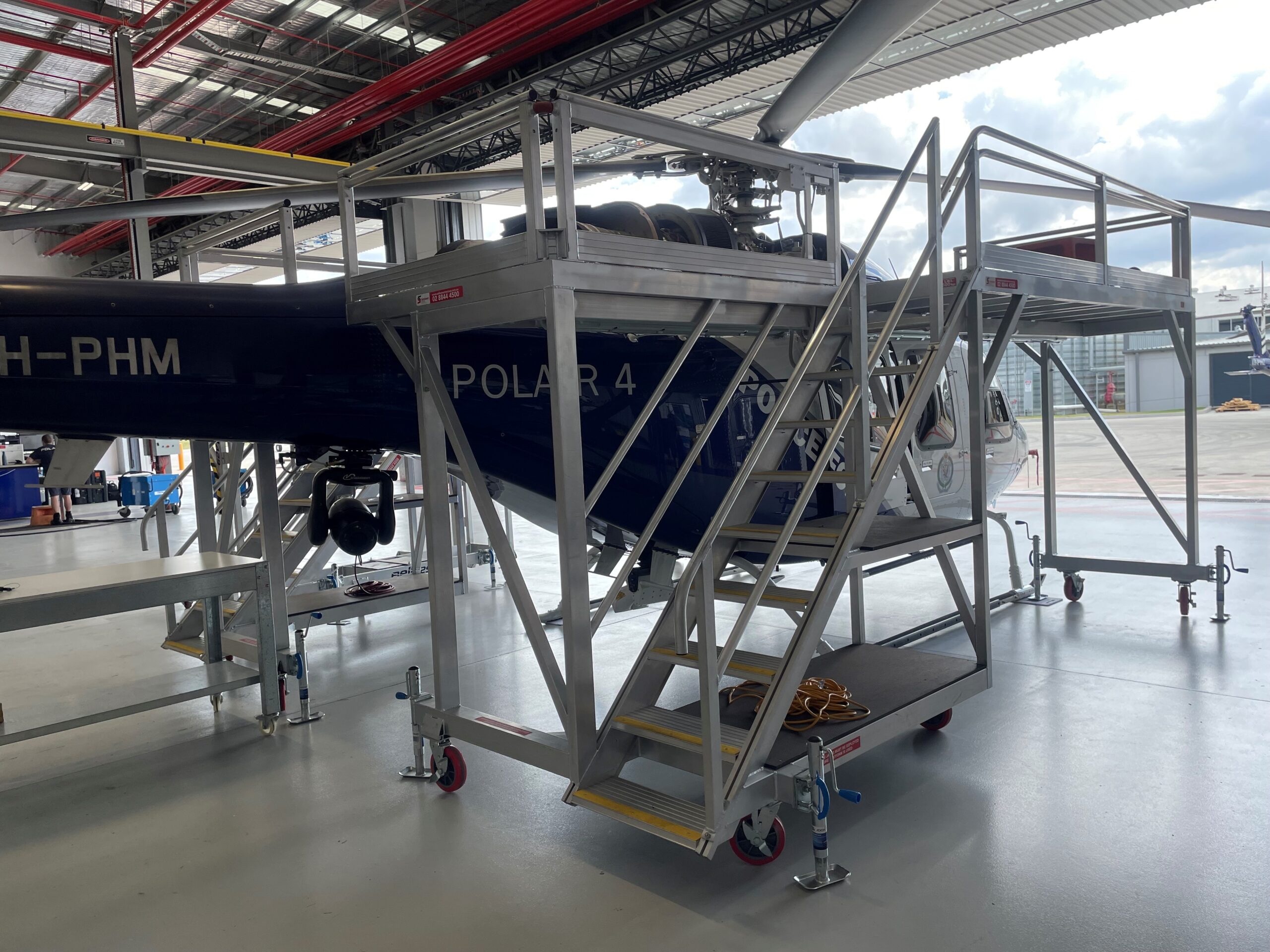

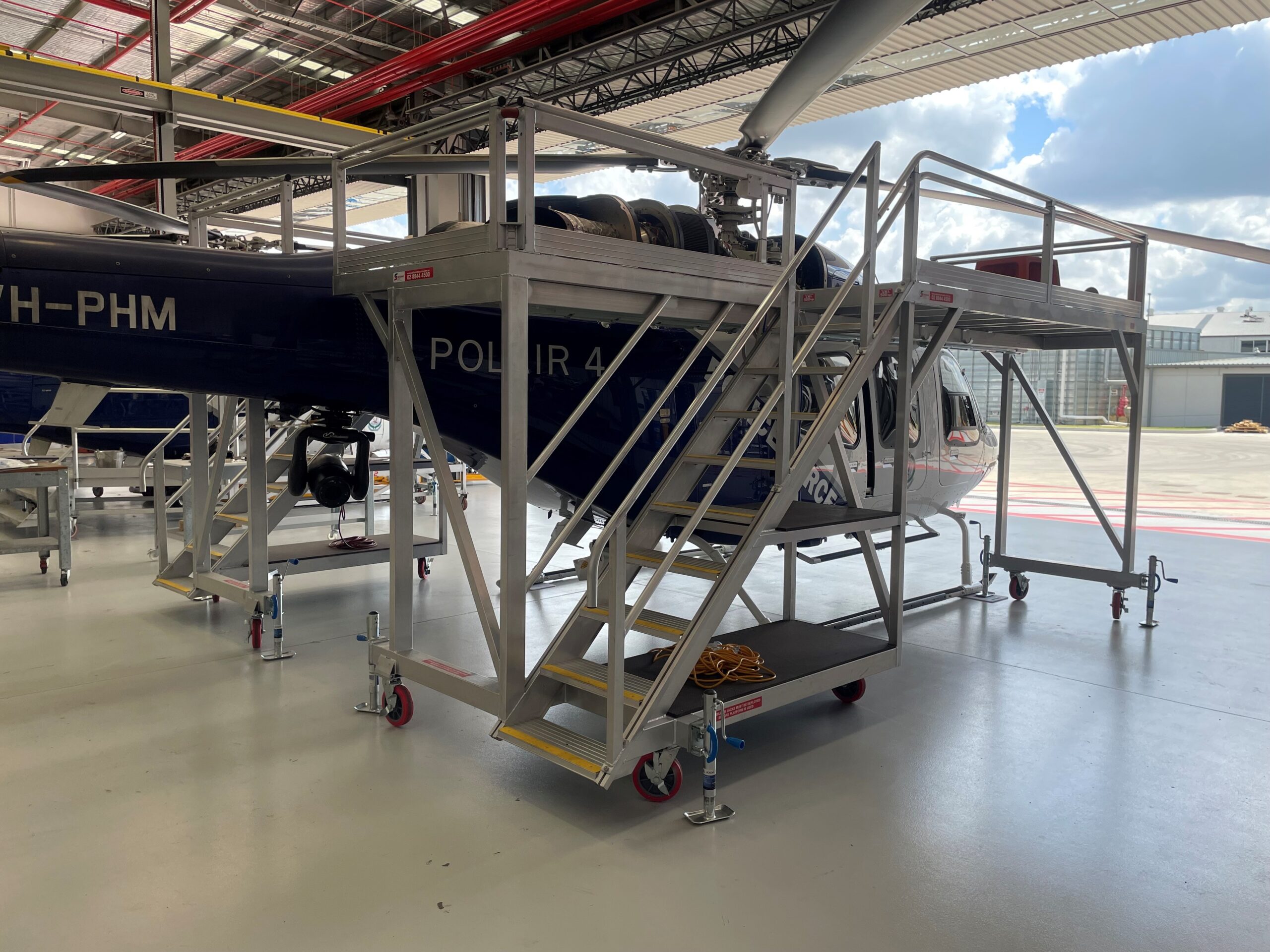

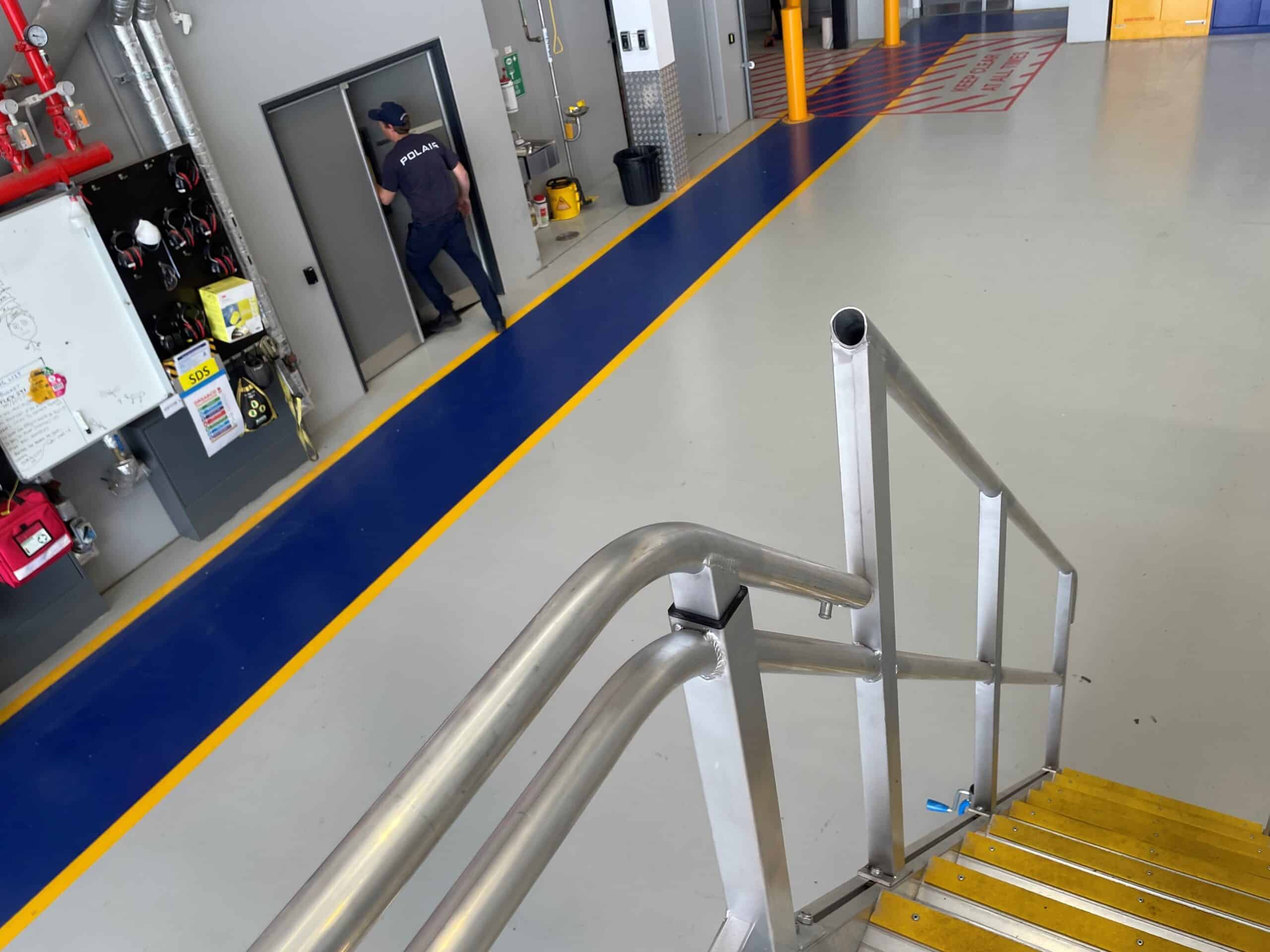

Safety and operational efficiency are paramount in the platform’s construction. The working deck is outfitted with hard-wearing treadplate decking and full surround toeboards. These toeboards provide critical tool drop protection, preventing foreign object debris (FOD) from falling into sensitive aircraft systems below. Access to the deck is via 45° stairs, which promote safer and more efficient movement for personnel carrying tools and parts compared to steeper ladder systems.
Rotor Blade Clearance and Mobility

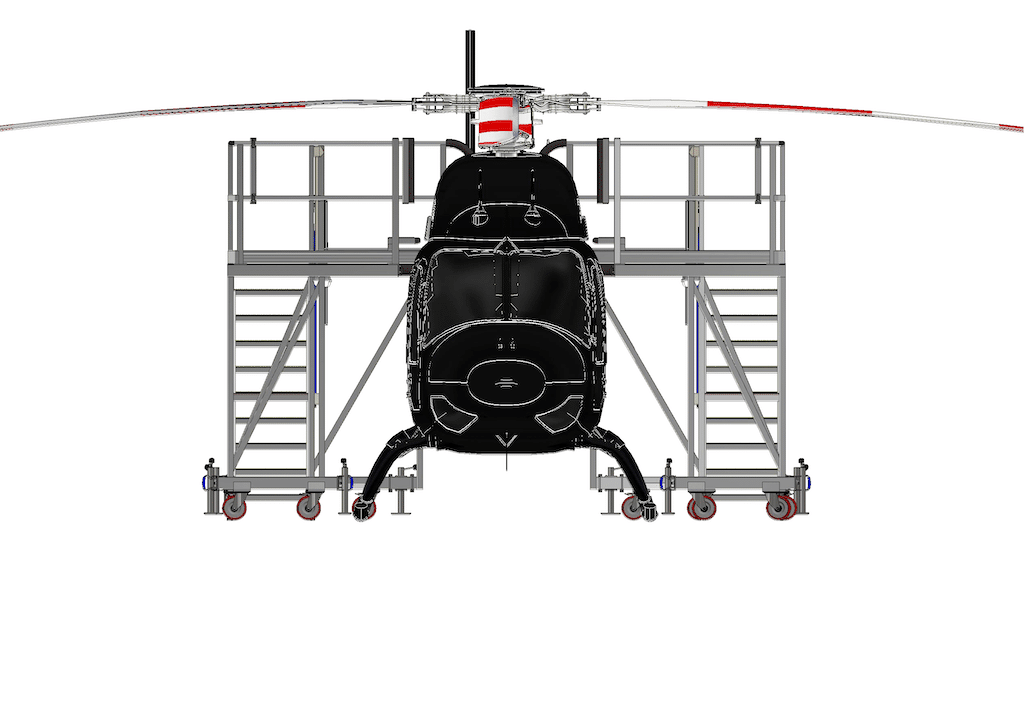

To protect the rotor blades during maintenance, the platform incorporates vertically telescoping guardrails on the top deck. Innovative features include guardrails that adjust quickly and lower easily to avoid the risk of clashing with the rotor blades, particularly when the main rotor system is being worked on or rotated. For stability and maneuverability, the unit is fitted with 200mm side braked swivel castors, allowing the system to be precisely positioned and securely locked in place during use.
Specialized Utility Integration and Airframe Protection
The platform anticipates diverse aircraft configurations. A large notched winch cut-out is integrated into the design, specifically accommodating Bell 429s equipped with a rescue winch. This section includes nylon locating slots for ease of alignment and is also fully removable, allowing the platform to be used seamlessly on aircraft both with and without the installed winch system.

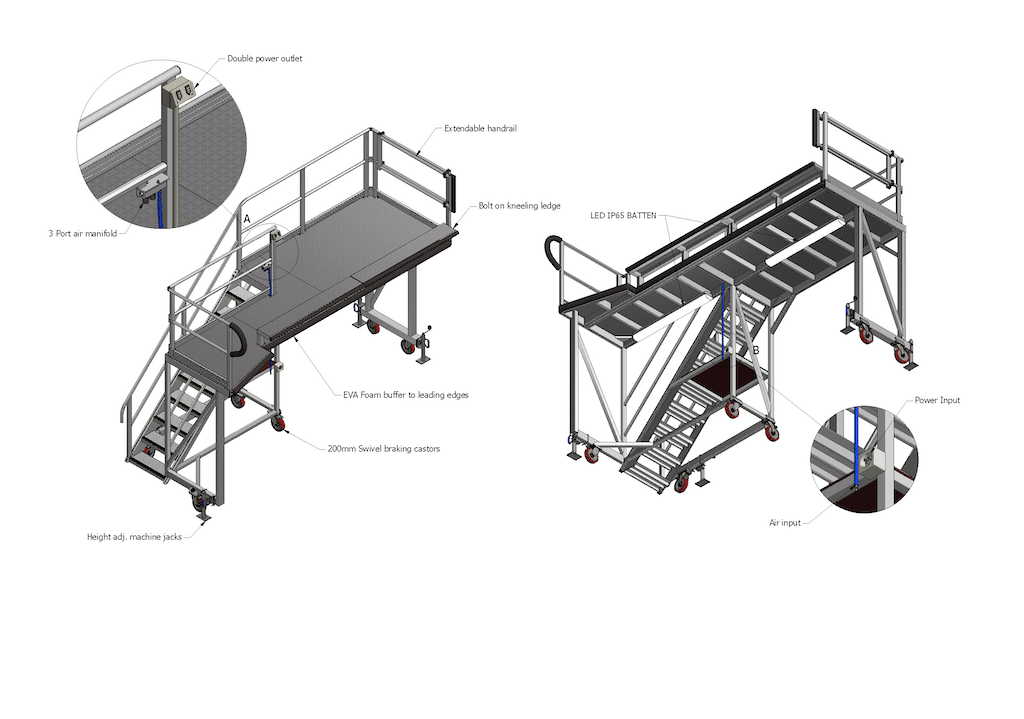

Understanding the need for power and air during maintenance tasks, the platform features essential utility provisions. Optional power and air hookups direct resources to the top platform, reducing cable clutter and ensuring technicians have immediate access to necessary resources for operating tools and diagnostic equipment. Additional electrical provisions include a double power outlet and optional underside LED lighting strips, which illuminate the work area and improve visibility during low-light conditions.
Protection of the aircraft is guaranteed through the inclusion of foam/rubber composite buffers at all aircraft contact points, preventing scratching or marring of the fuselage during positioning. The platform’s overall design—including the angle edge stiffener with foam—ensures structural integrity while prioritizing the longevity of the helicopter’s airframe during intensive maintenance periods.
This comprehensive access solution is engineered to reduce maintenance downtime and enhance the safety and effectiveness of all personnel working on the Bell 429 fleet. For a compact alternative, consider the Bell Helicopter 429 Slim-Line Side Access Platform.
