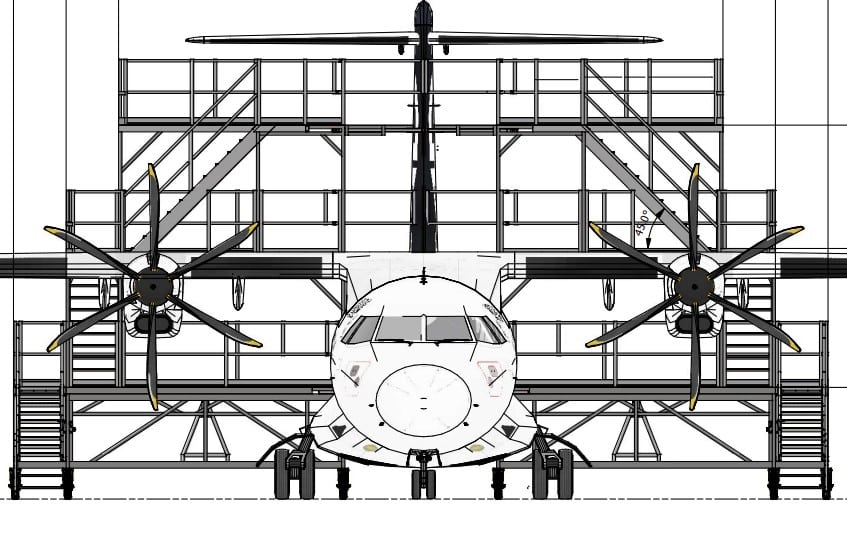

Introducing the purpose-built Height Tail Docking System for the ATR 72 regional airliner. This sophisticated access solution, the ATR 72 Tail Dock, is engineered to enhance safety, efficiency, and precision during critical maintenance procedures on this twin-engine turboprop aircraft. Designed specifically to interface with the unique geometry of the ATR 72, this docking system ensures comprehensive, stable access to the elevated T-tail structure, which stands approximately 7.5 meters high.
The stand features a detailed toolset that seamlessly integrates with the aircraft’s maintenance needs, whether the ATR 72 is jacked or unjacked. Its primary function is to provide safe, ergonomic access to the T-tail assembly—comprising the vertical and horizontal stabilizers—which are crucial areas for inspections and servicing. Maintenance tasks related to the T-tail, which traditionally require tall ladders or potentially cumbersome scissor lifts, are significantly streamlined.
Precision Contouring for Vertical Stabilizer Access
Central to the design are the Sliding Fingers; innovative features include an auto-locking capability that precisely matches the contours of the aircraft’s profile. These sturdy sliders specifically contour to the vertical stabilizer, ensuring a snug, protective fit that minimizes the risk of damage while maximizing worker safety. The inclusion of Over-length Sliders further enhances operational ease, facilitating the movement of the aircraft into the ideal docking position without requiring excessive repositioning of the stand itself.
Flexible and Adaptable Maintenance Support
Versatility is a core attribute of this docking system. The sliders can quickly retract, a critical capability that allows maintenance personnel to lower or raise aircraft components or tools into position without obstruction. This flexibility enables the system to be utilized across other aircraft types. This makes it a highly adaptable asset for any regional fleet servicing facility, providing an unparalleled level of utility. For full airframe coverage, consider our ATR 72 Nose Dock Platform.
Durable High-Tensile Aluminium Construction
Constructed from high-tensile aluminium, the docking system strikes a balance between hard-wearing durability and maneuverability. This choice of material ensures the structure is strong enough for intensive workshop environments yet light enough to be mobile. The system is thoughtfully engineered to split into two mobile sections, significantly easing the task of positioning and handling. Maneuvering the entire dock requires approximately four personnel, a testament to its efficient, lightweight design, aided by sturdy 20-inch wheels for smooth transit across hangar floors.
Safety and Ergonomics for ATR 72 Servicing

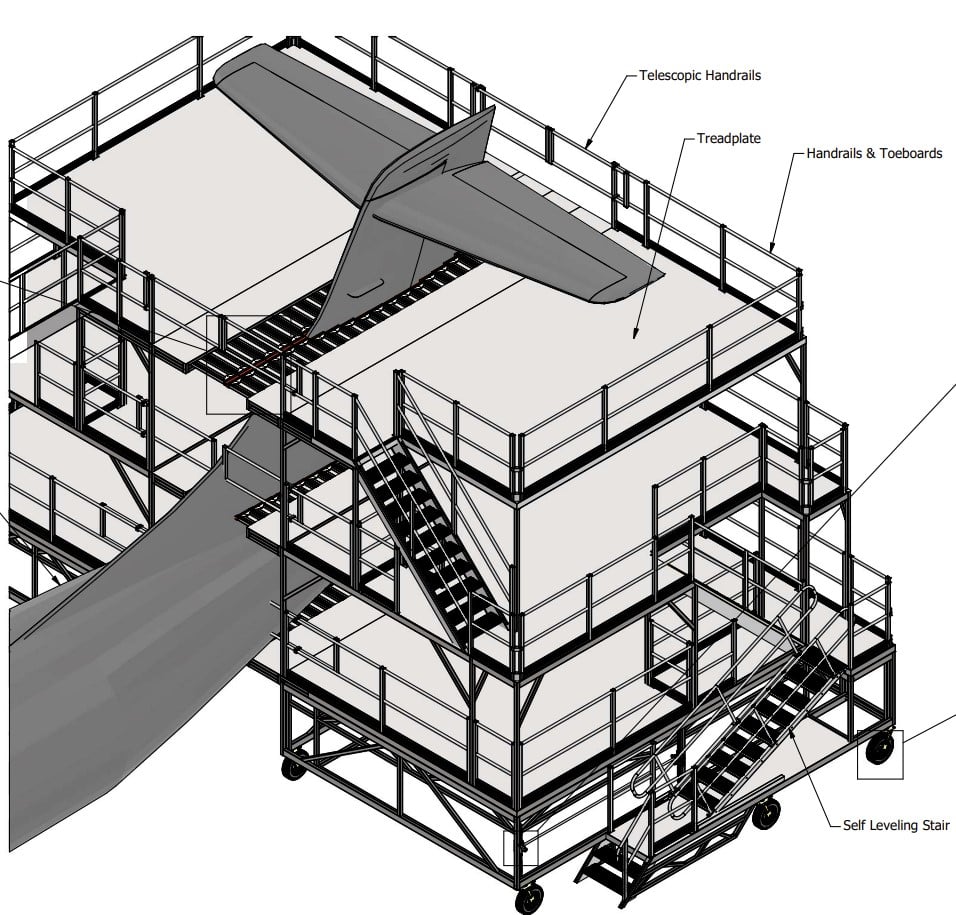

Accessibility and safety are reinforced by integral features such as Telescopic Handrails, which provide consistent fall protection across varying deck heights. The Treadplate Decking surface offers superior slip resistance even in demanding maintenance conditions. Furthermore, the inclusion of a Self-Levelling Stair guarantees a consistent, safe ascent and descent angle for technicians, regardless of the platform’s height setting. Beyond the T-tail, the platform indirectly supports the excellent maintenance context by freeing up other forms of access equipment.
By dedicating this mobile access solution, the ATR 72 Tail Dock, to the difficult-to-reach T-tail structure, workflow around the airframe is optimized. The docking system’s purpose is to replace temporary or less secure methods of high-level access with a stable, ergonomic workspace. The integration of a towbar simplifies repositioning. This Adjustable Height Tail Docking System provides a secure, flexible, and highly efficient solution for all maintenance and inspection tasks required on the ATR 72 T-tail, ensuring paramount safety and operational uptime for this high-wing regional airliner.
