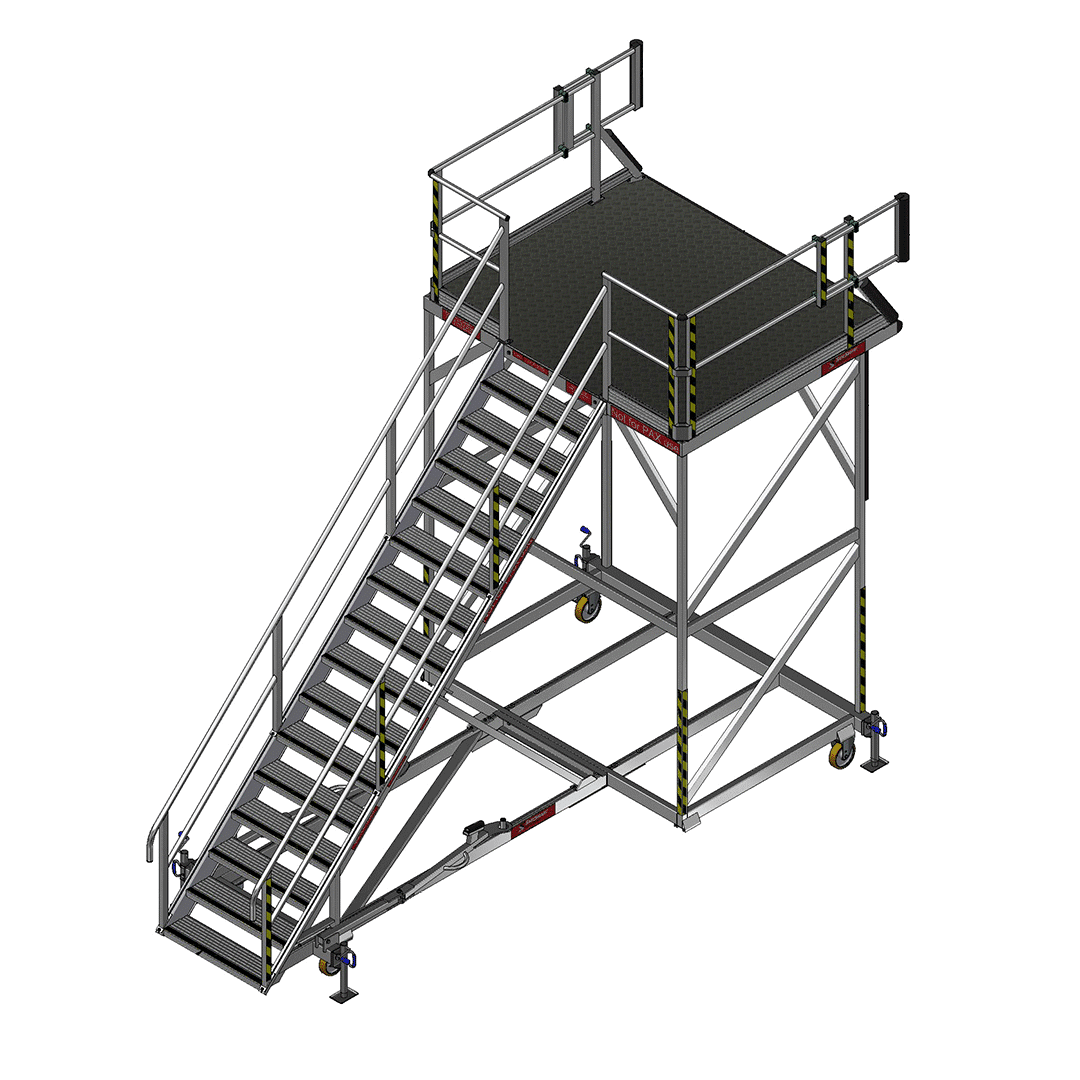

Airbus A320/A321 Engineering Access Stairs – Wide Version
The Airbus A320/A321 Engineering Access Stairs – Wide Version is an indispensable maintenance platform designed for line maintenance on the Airbus A320 family. Built for high-tempo airport environments, this sturdy access stair improves safety, efficiency, and reach for technicians working across critical aircraft zones on the flight line or in the hangar.
Engineered for first-class performance in dynamic ramp conditions, the platform prioritizes mobility and user safety. Heavy-duty 200mm swivel castors enable smooth manoeuvrability by a single person, making the unit easy to reposition as tasks shift along the fuselage, wing, or engine access points.
Wide Landing Area for Safer, More Efficient Work
A defining feature of the wide-version design is its large landing area. This expansive workspace provides a stable, comfortable platform with room for tools and equipment, reducing unnecessary trips up and down the stairs and supporting more efficient task flow. Grip tread nosings on every step improve traction and reduce slip risk in wet, oily, or high-wear environments.
Close-In Aircraft Interface with Protective Buffering
The platform is designed to interface cleanly with A320/A321 structures. Sliding guardrails allow aircraft doors to open fully without obstruction, supporting safe, close access when servicing door mechanisms, seals, and adjacent fuselage areas. Aircraft protection is enhanced through rubber buffers on jack baseplates and a spring-loaded retractable buffer, helping prevent contact damage to aircraft skin during positioning and docking.
Optimized for Core A320/A321 Line Maintenance Zones

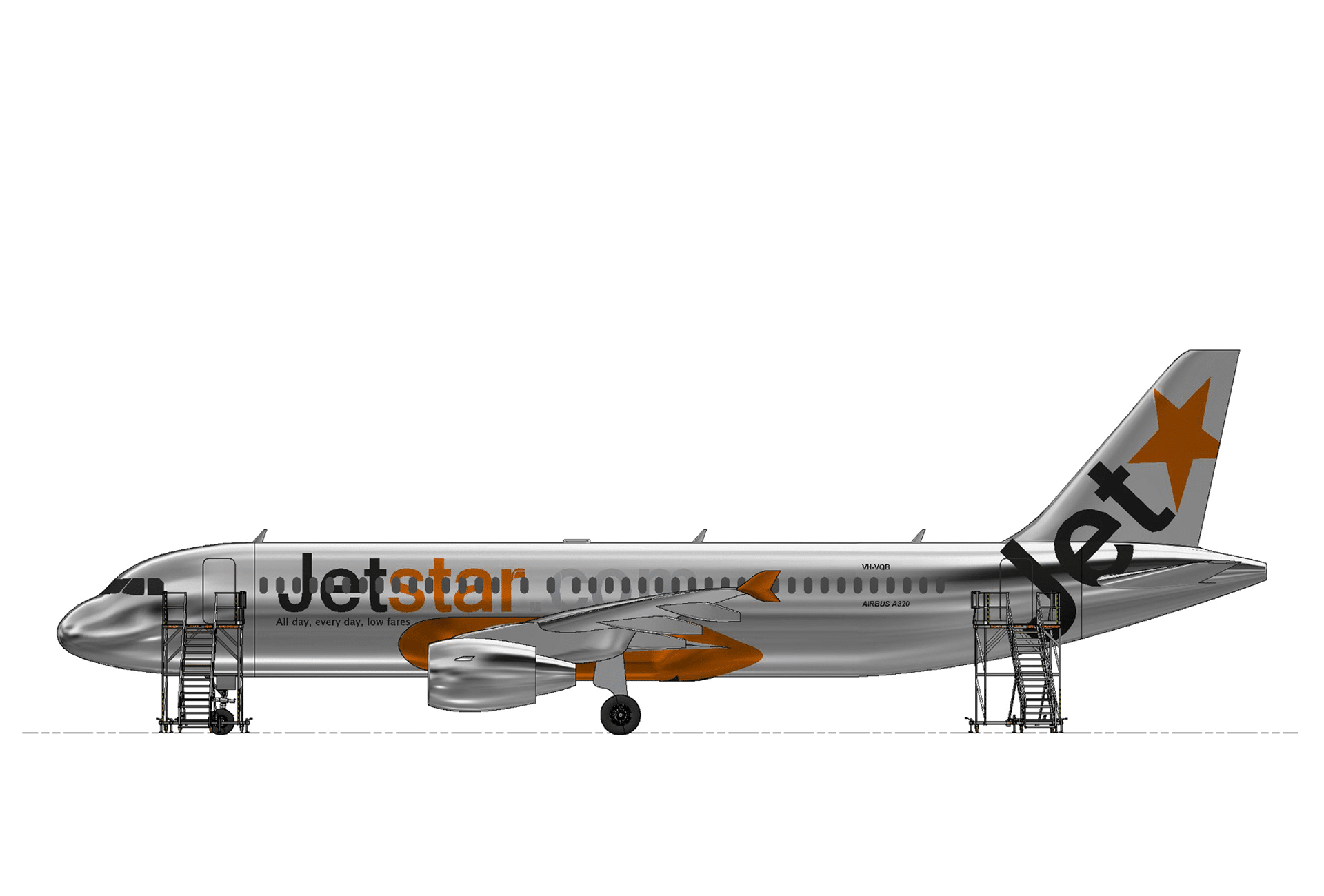

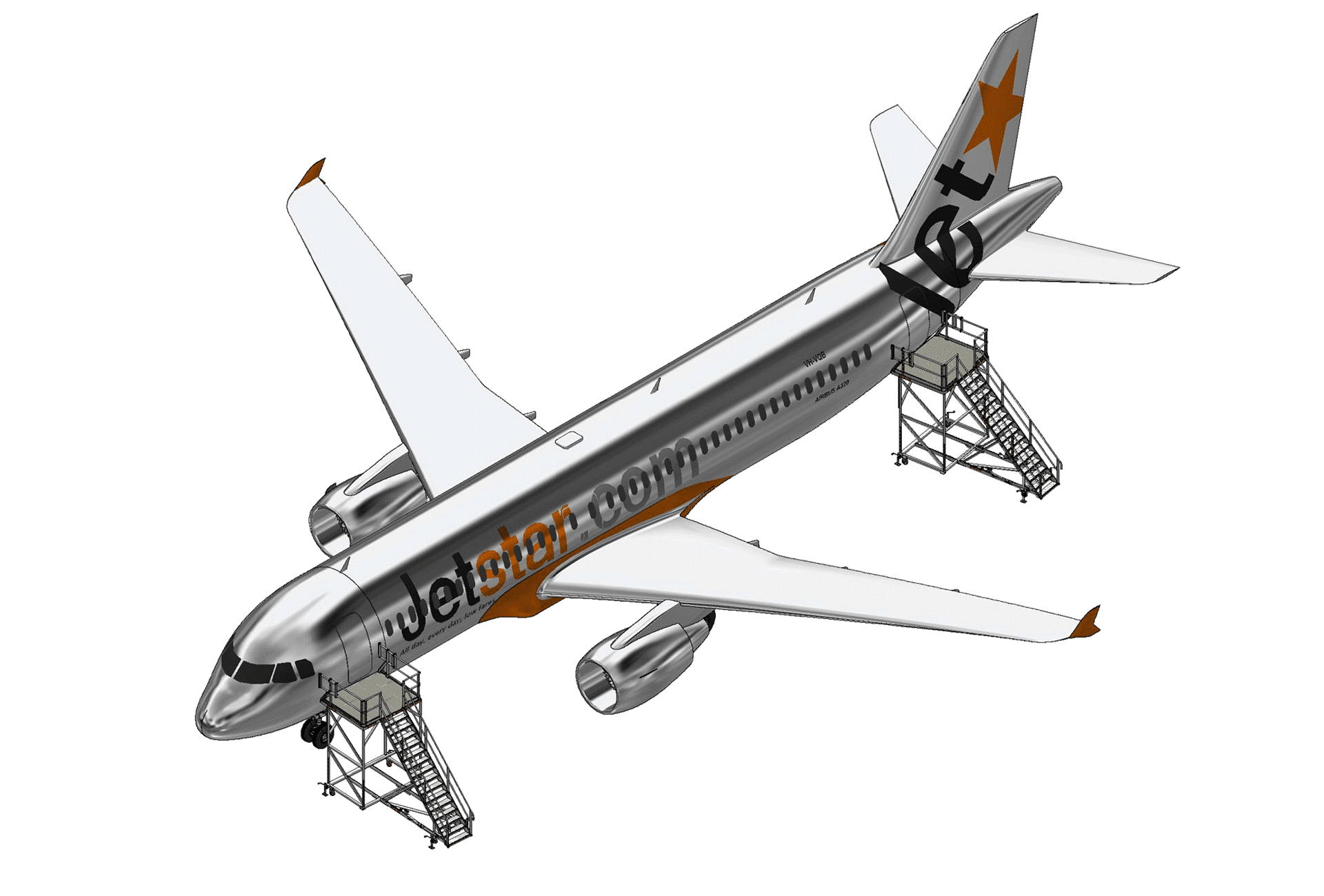

Maintenance crews use this platform to reach key areas during pre-flight checks, transit inspections, and light maintenance routines. It provides safe access to the nose area for probe and static port checks, supports inspection of the wing leading edge, wingtip devices, spoilers, and flaps, and offers stable working height for engine intake inspections—including Foreign Object Damage (FOD) checks and fan blade inspections.
Durability Features for Ramp Operation
Designed for longevity and outdoor use, the platform is wind-rated up to 40 knots, supporting safe operation on exposed ramps. A retractable towbar assists with deployment, and a separate retractable towbar when stowed keeps the unit compact and manageable when not in use—supporting efficient storage and movement between bays.
Height Adjustable Stabilization and Visibility Enhancements
To accommodate varying aircraft heights and uneven ramp surfaces, the platform includes height adjustable jacks and retrofit jack mounts at the stair end for secure levelling and stabilization. A bolt-on grab rail improves safe handling, while reflective tape increases visibility during night operations and low-light conditions.
Supporting Routine Airworthiness Checks
The A320/A321 Engineering Access Stairs – Wide Version supports a broad range of routine servicing tasks essential to airworthiness, including access for refuelling points and fluid checks (engine oil level and hydraulic quantity checks), safety item configuration (removal of pitot covers and gear pins, emergency slide pressure gauge checks), and lower system inspections such as landing gear checks (tires, brakes, wear indicators) and flight control lubrication access.
A Reliable Wide-Deck Access Solution for A320/A321 Line Maintenance
With a wide working deck, smooth mobility, adjustable stabilization, and aircraft-protective buffering, this platform provides a safe and efficient solution that improves the speed and quality of line maintenance on the Airbus A320 and A321 fleet. It enables technicians to complete essential servicing tasks quickly and securely while reducing the risk of damage to both personnel and aircraft.
